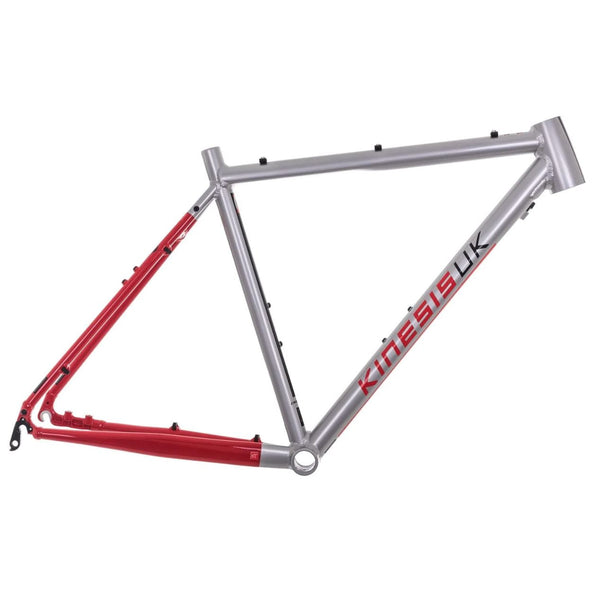

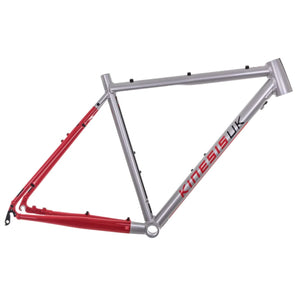

Kinesis - Frame - CX One - Discontinued

Regular price £0.00

Tax included

Shipping calculated at checkout

Colour: Red
The Kinesis CX1 cyclocross frame has been designed to offer versatility and answer the questions you’ve been thinking about… should I go disc or cantilever? Do I need a race bike or something I can hack around the woods on and then do my daily commute as well? Should I go Red or Blue?.

With the CX1 you can do all of them, whether you’re starting out at cross racing or just want a winter machine to hack around the woods with your mates it’ll do it all.

You can build it up with cantilever brakes to start with and then switch to disc later down the line.

We designed the Kinesis CX1 frame to fit in around your needs, really all you’ve got to choose is the colour. So what’s it to be Red or Blue?

Features

• Lightweight 6061 double butted tubing

• Flattened top tube for shoulder carrying

• Disc and Canti brake compatibility (with optional Canti Kit)

• Inboard disc Flat Mounts leave room for ‘guard and rack fitting

• Rack mounts, mudguard eyelets and twin bottle mounts

• Clearance for a 40mm tyre with full mudguards

• Super small sizes for Junior riders

Specification

  • SEAT POST: 27.2mm
  • SEAT CLAMP: 31.8mm
  • FRONT MECH: 31.8mm
  • BB: 68mm BSA Threaded
  • 22mm long flat mount disc brake bolts required for the frame.

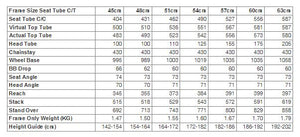

  • CX1 FRAME SIZES & WEIGHTS: 45cm = 1.47 kg / 48 = 1.50 kg / 51 = 1.55 kg / 54 = 1.60 kg / 57 = 1.67 kg / 60 = 1.70 kg / 63 = 1.79 kg
