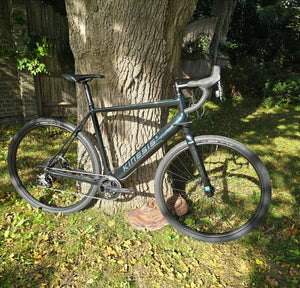

Range Gravel XL Ex-Display
Sale price
£2,600.00 GBP
Shipping calculated at checkout
SKU: K-BIKE-RANGE-GR-6XL
Only 1 in stock

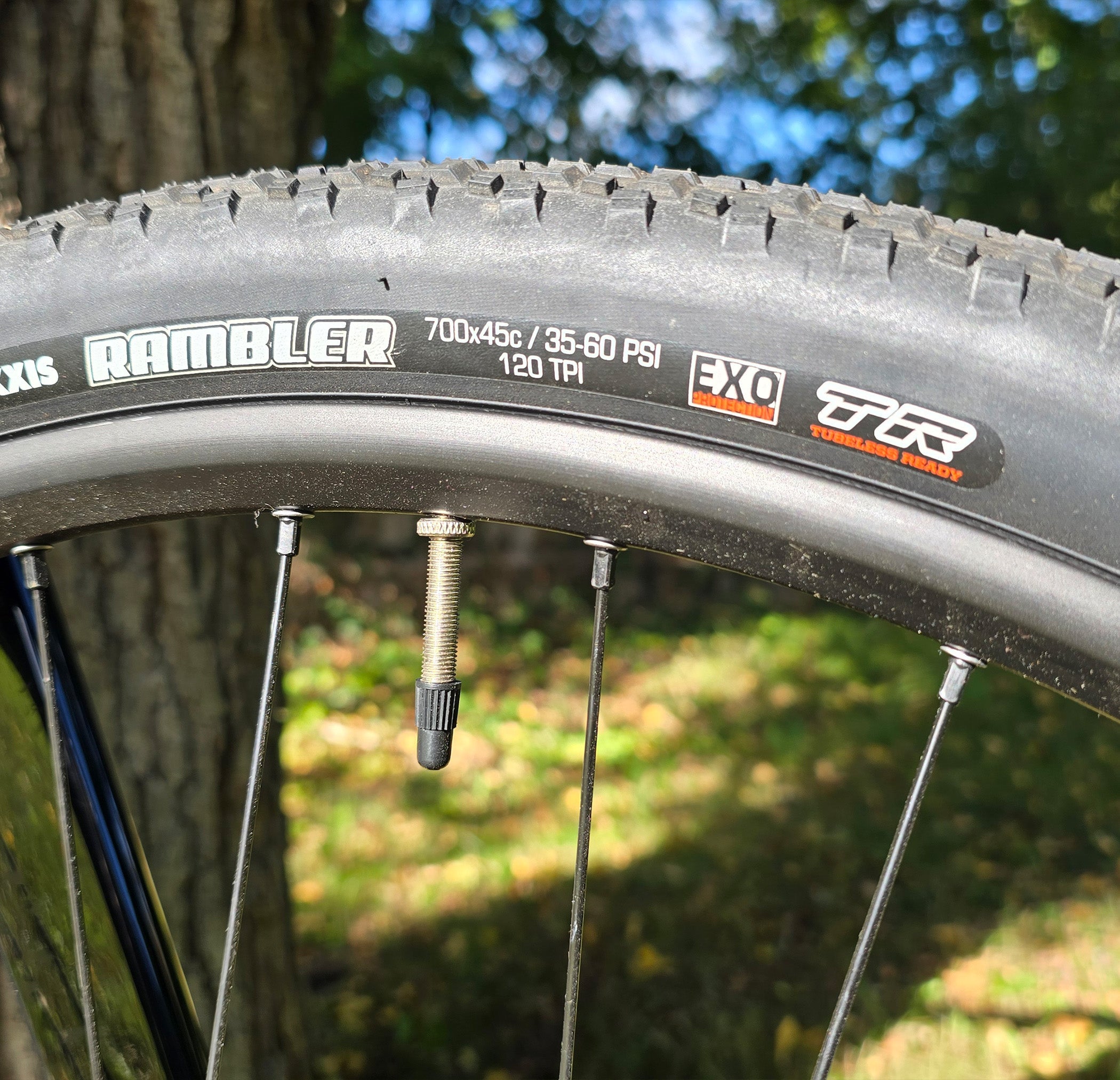

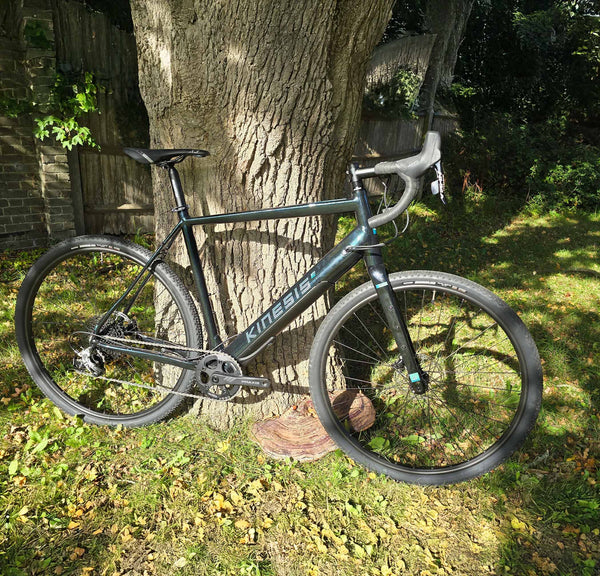

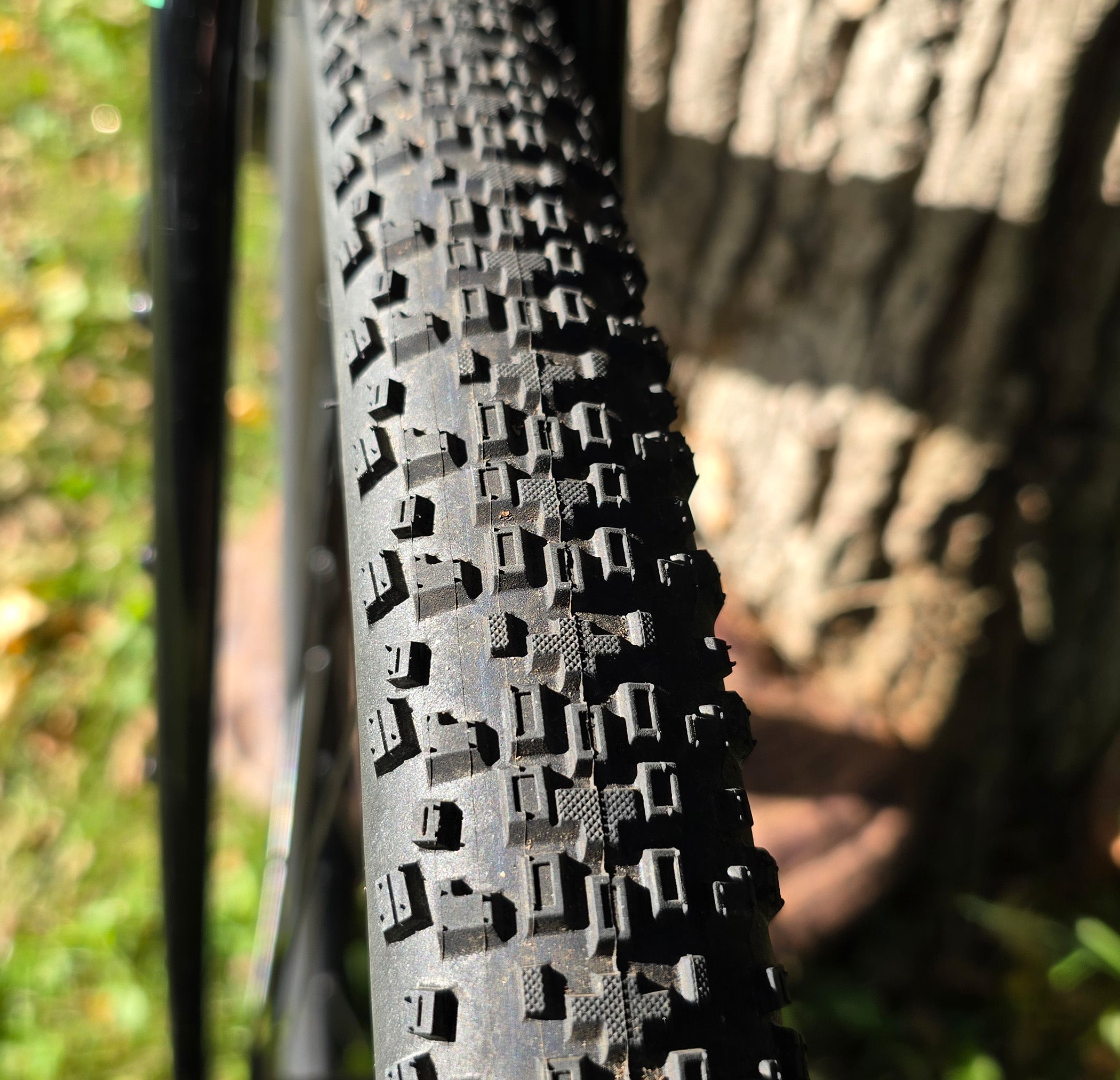

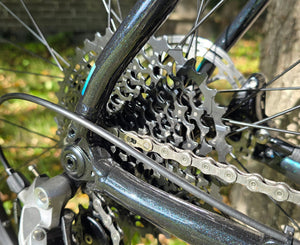

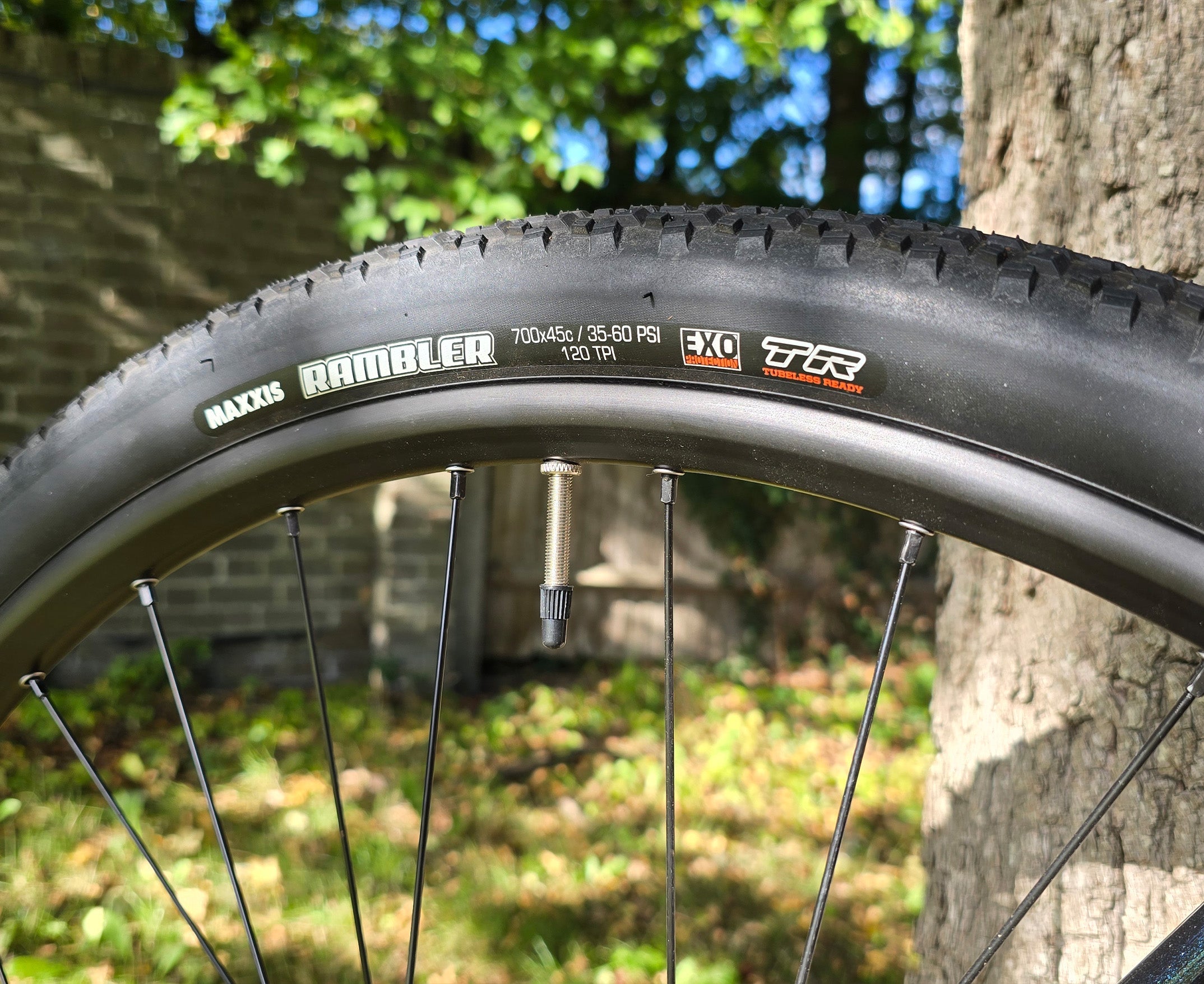

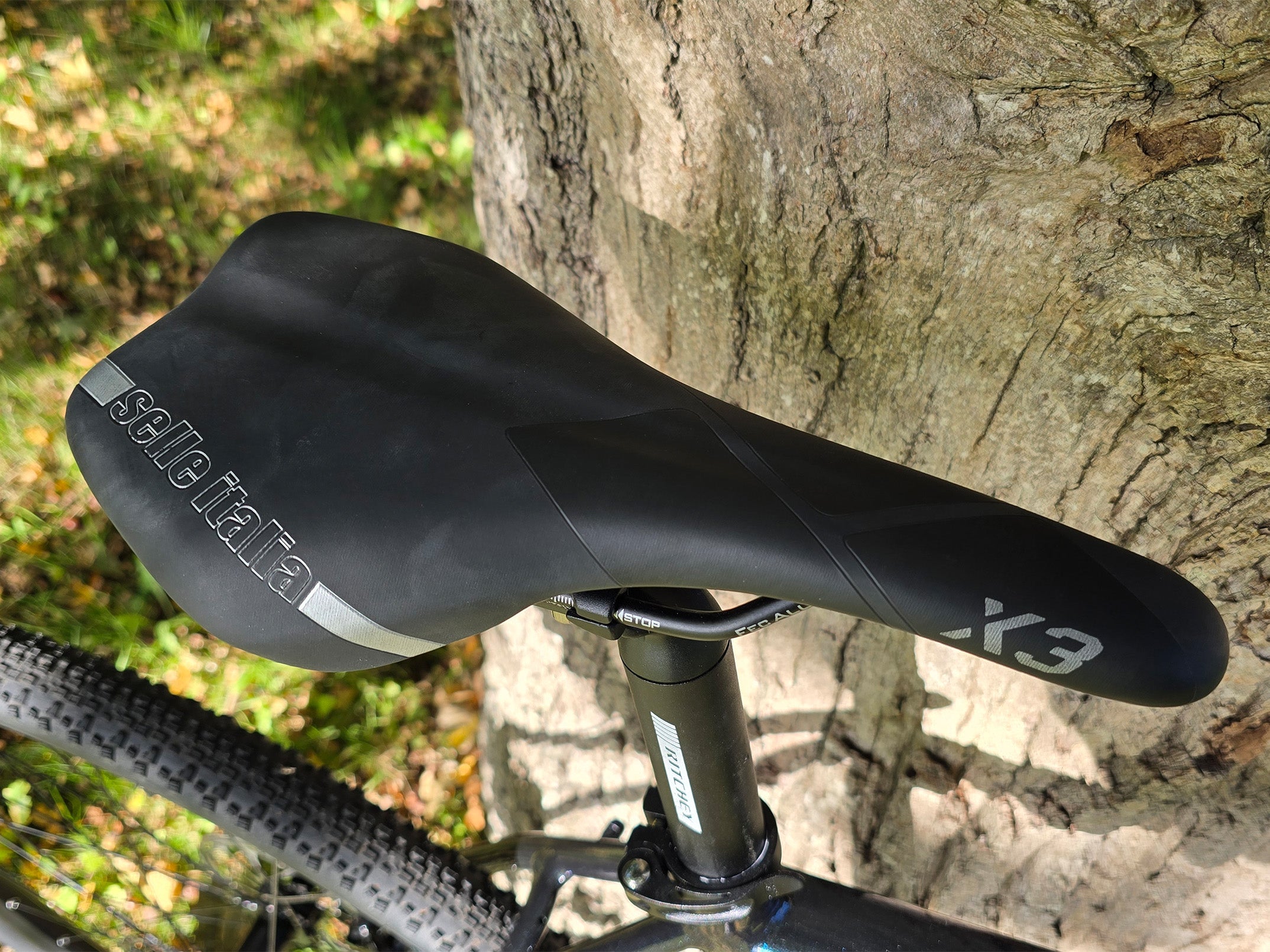

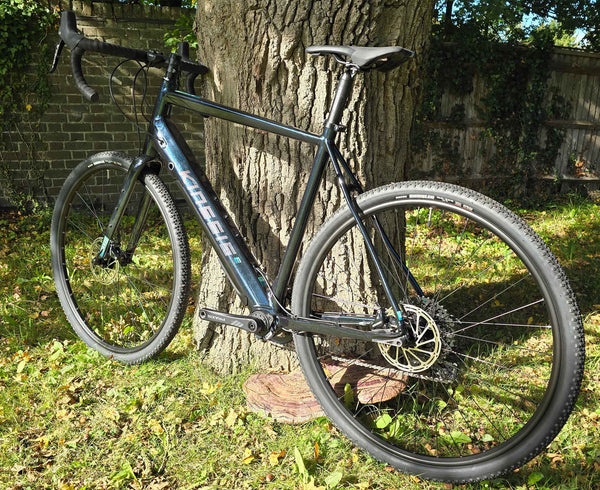

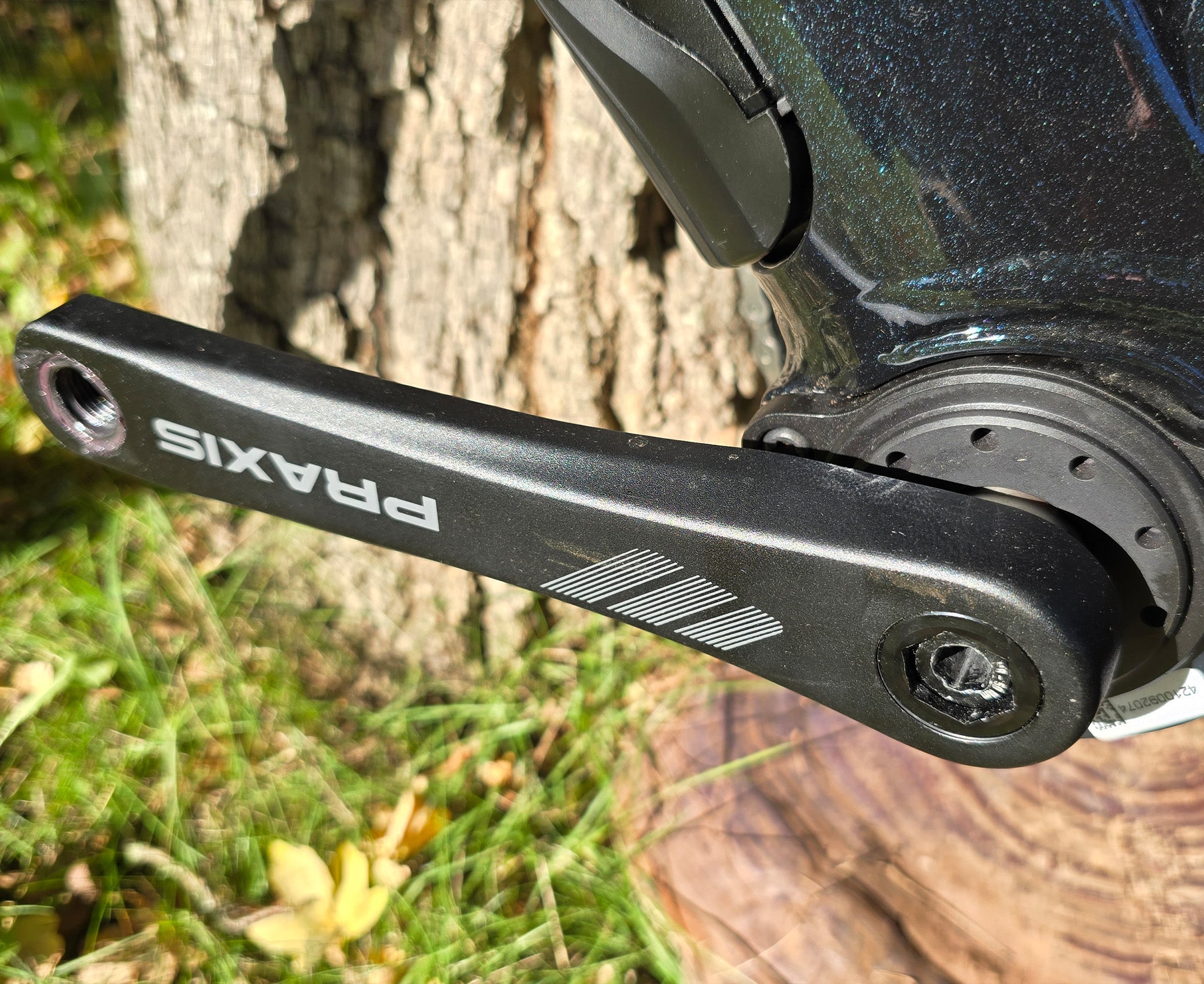

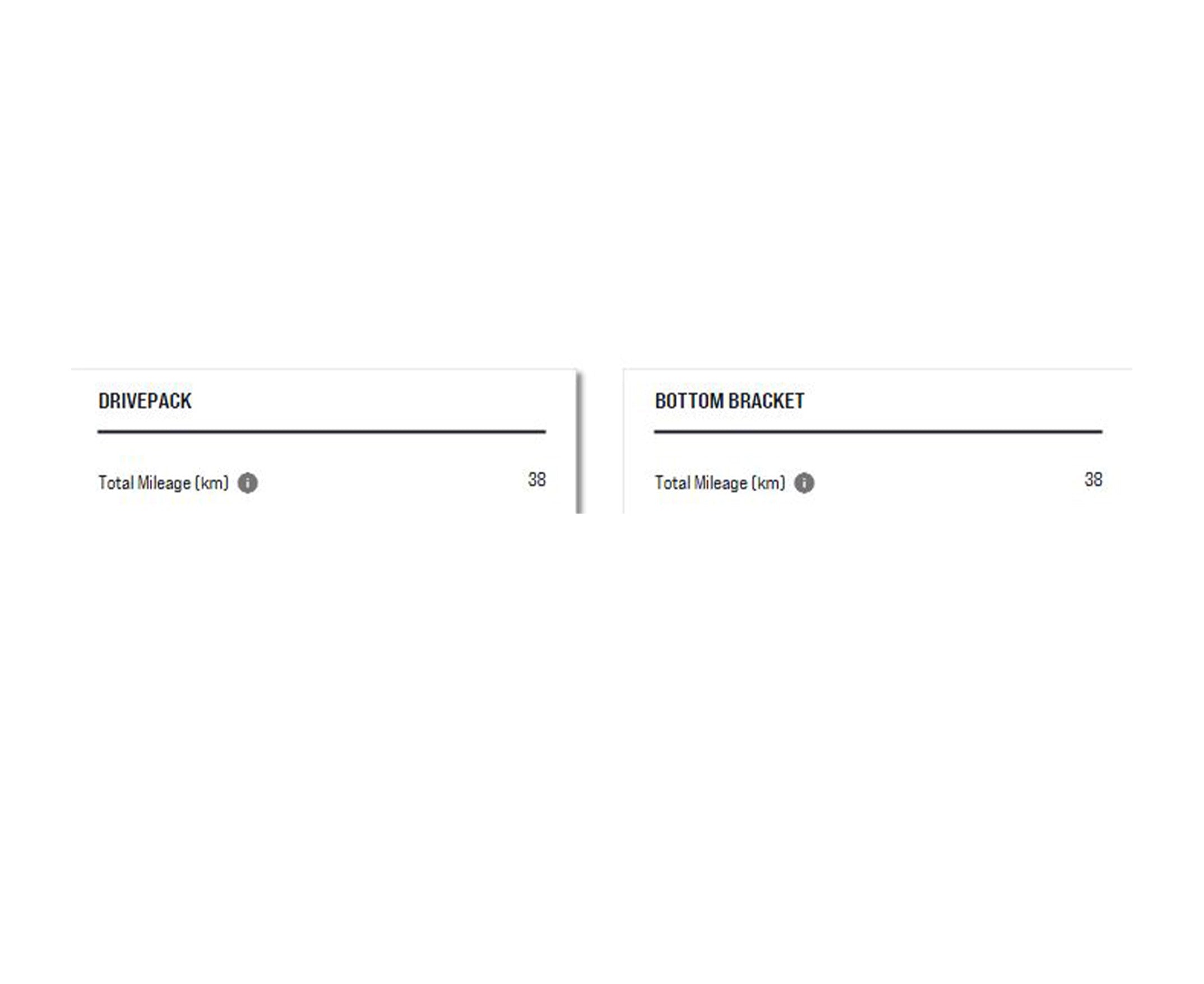

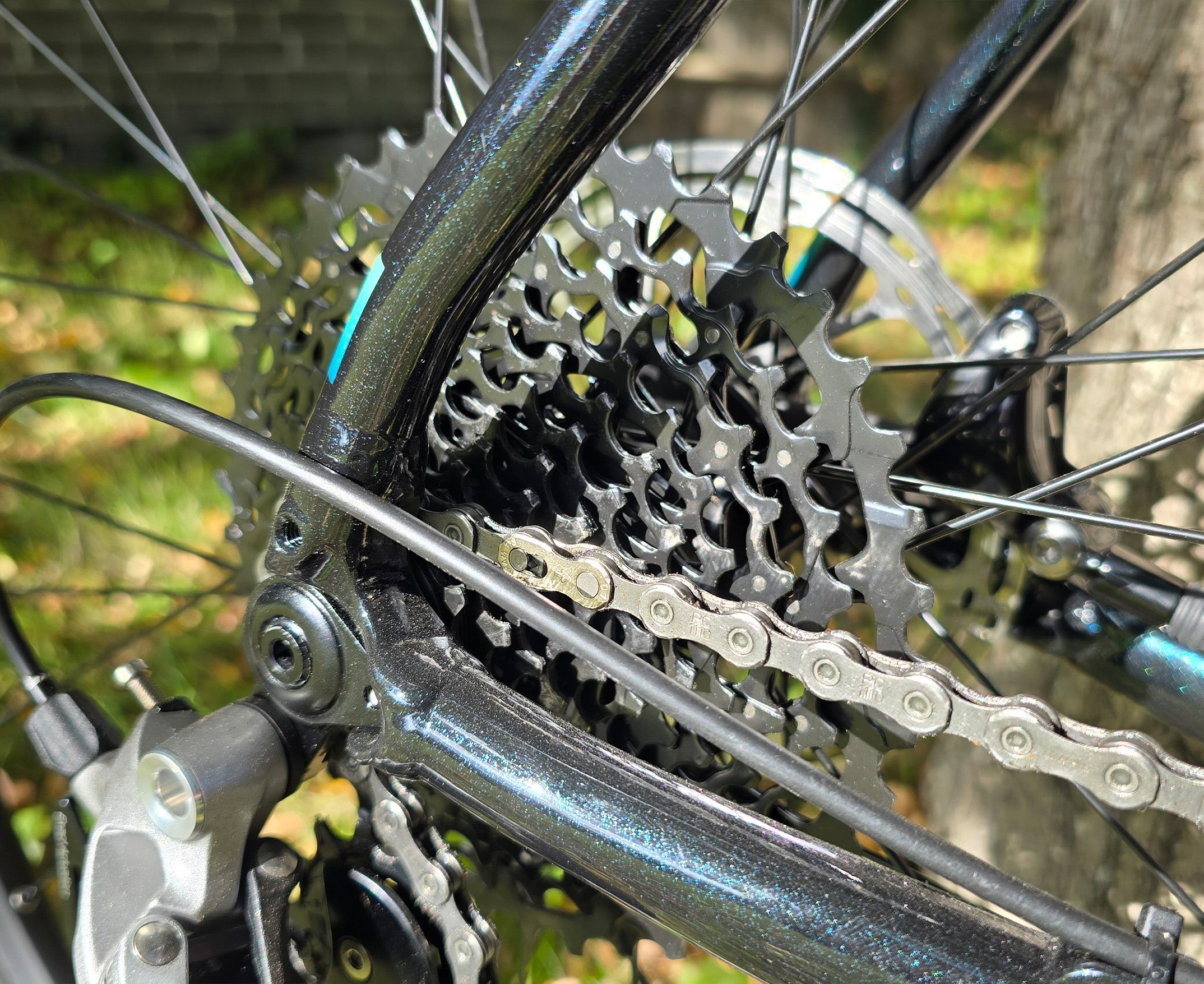

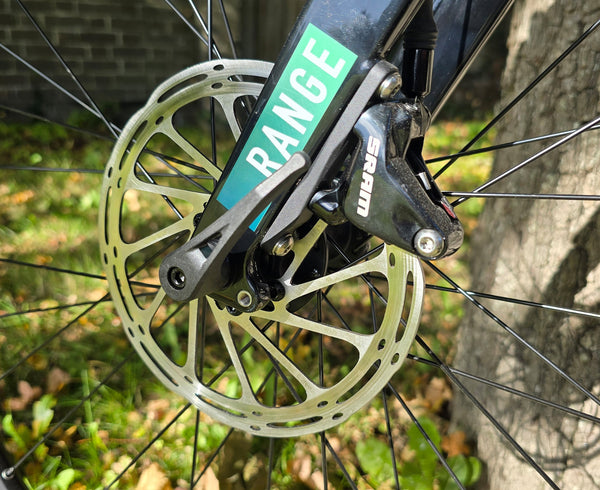

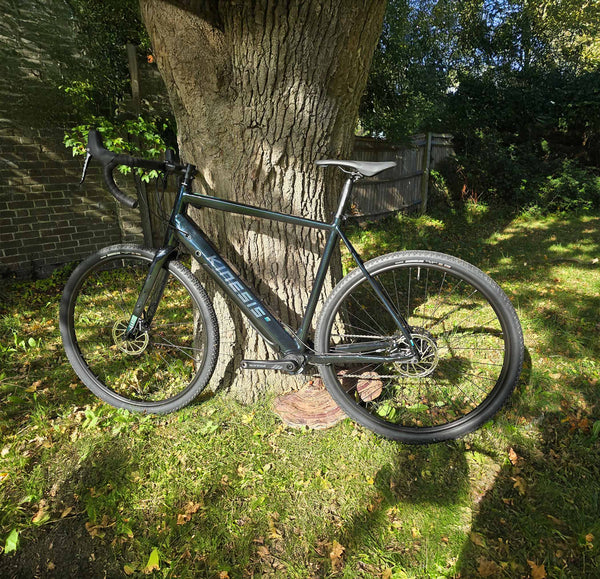

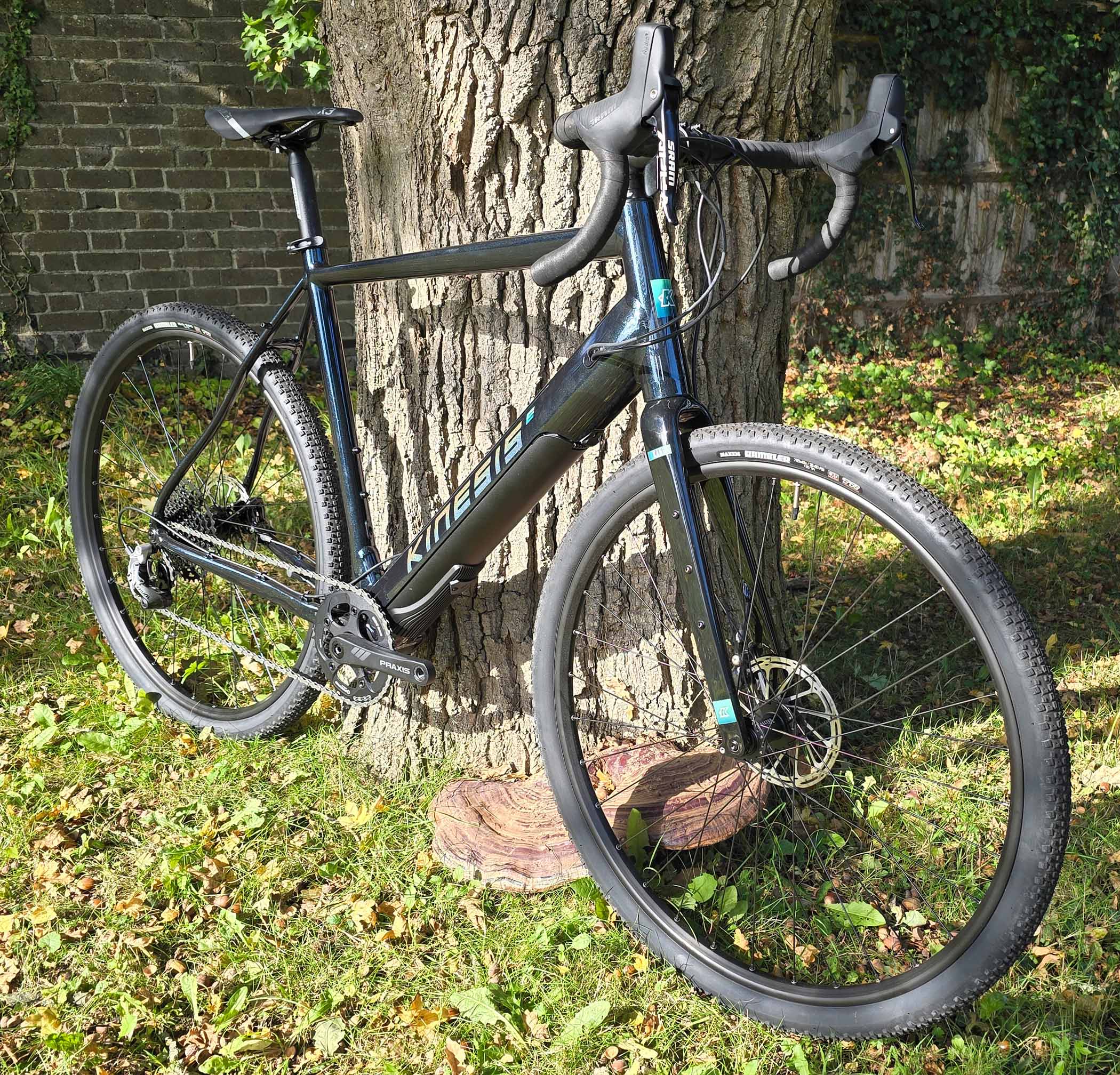

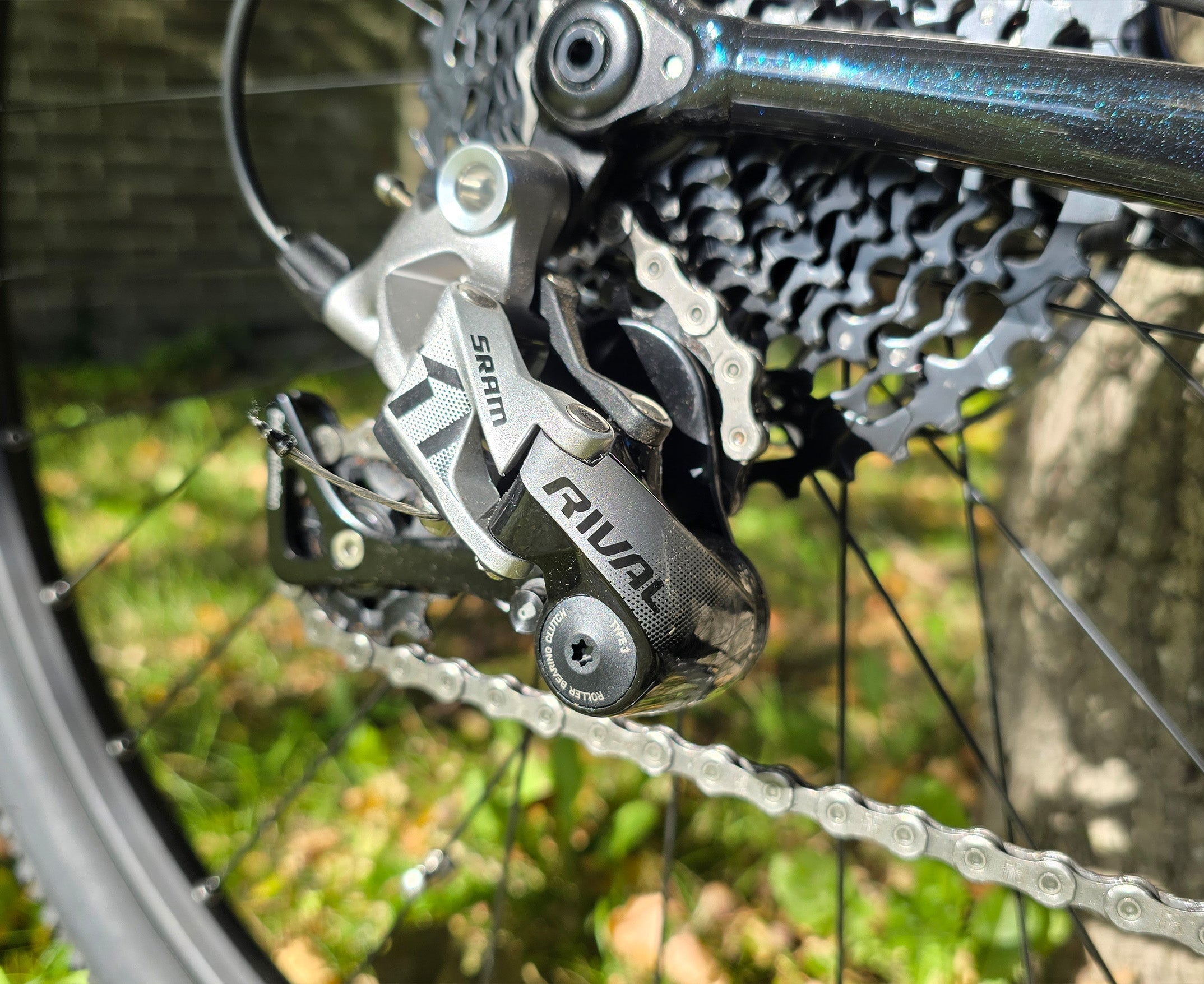

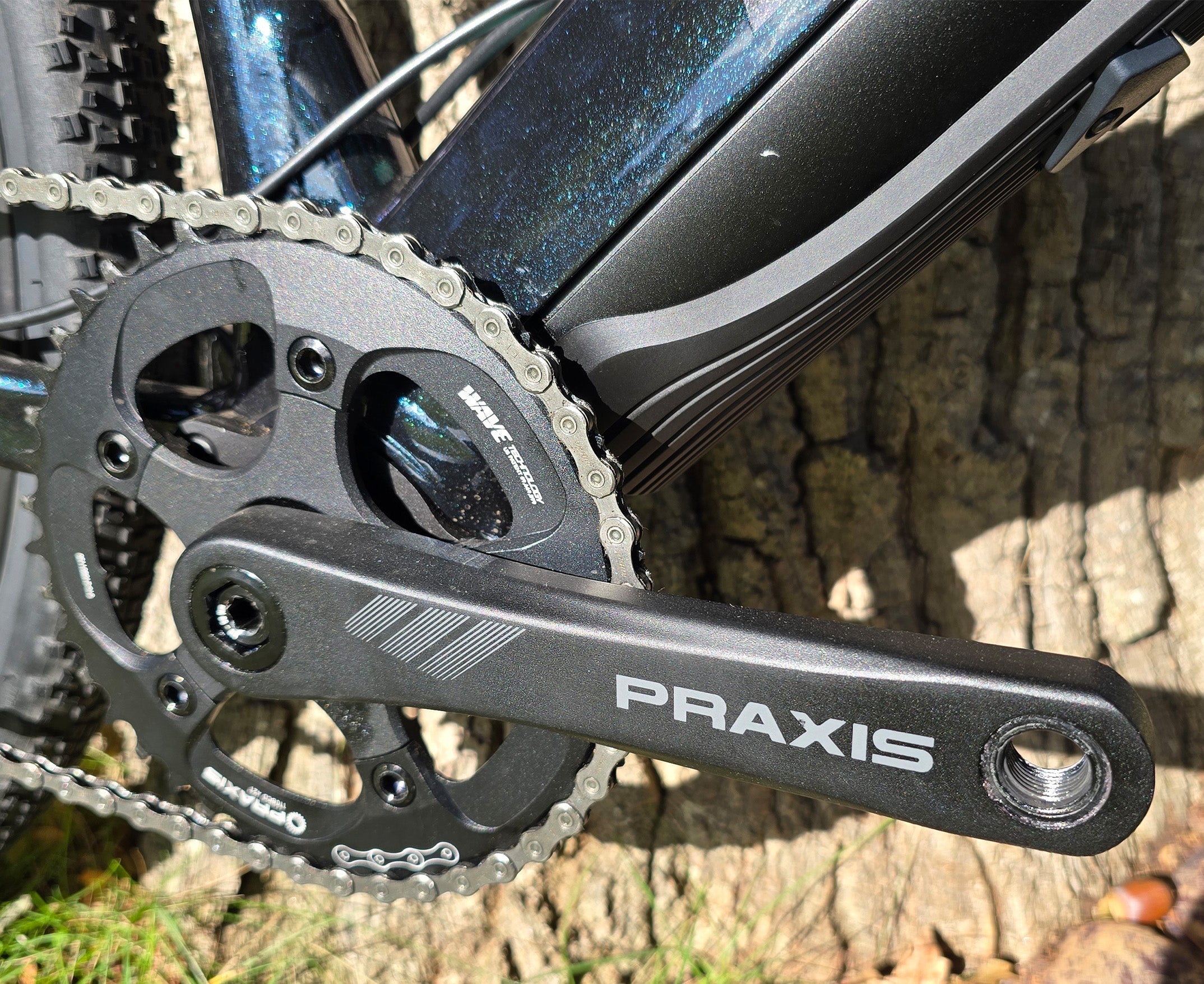

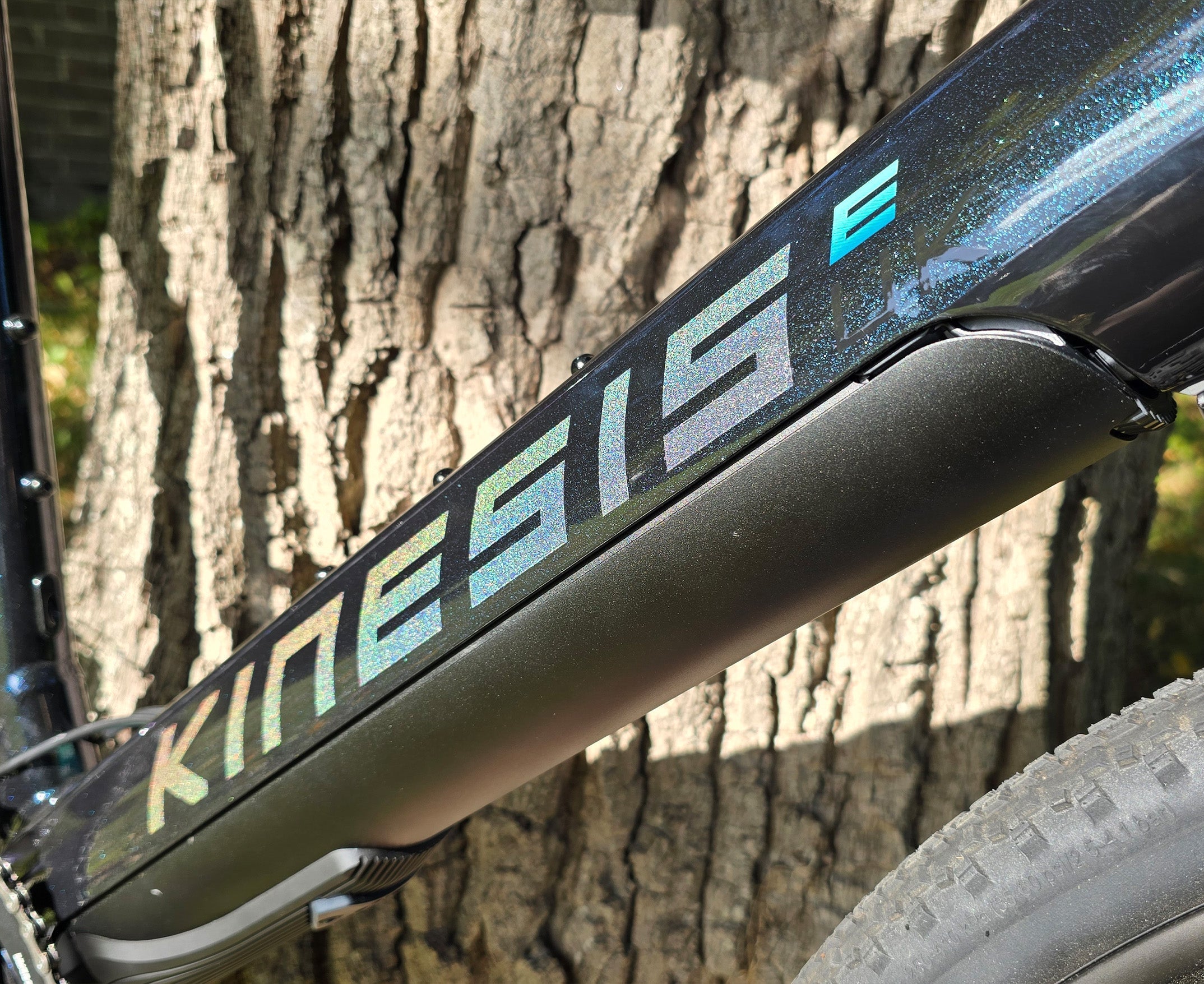

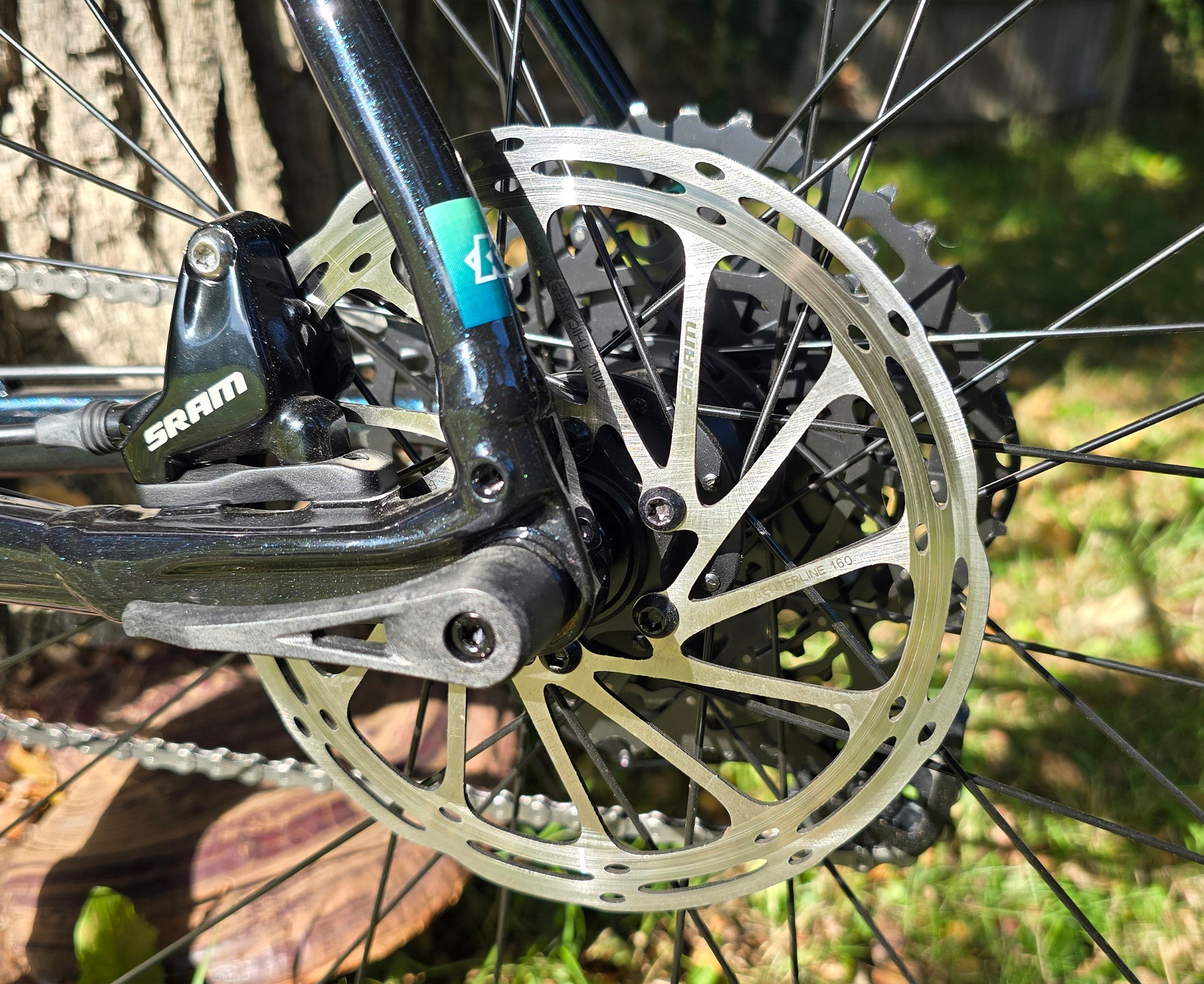

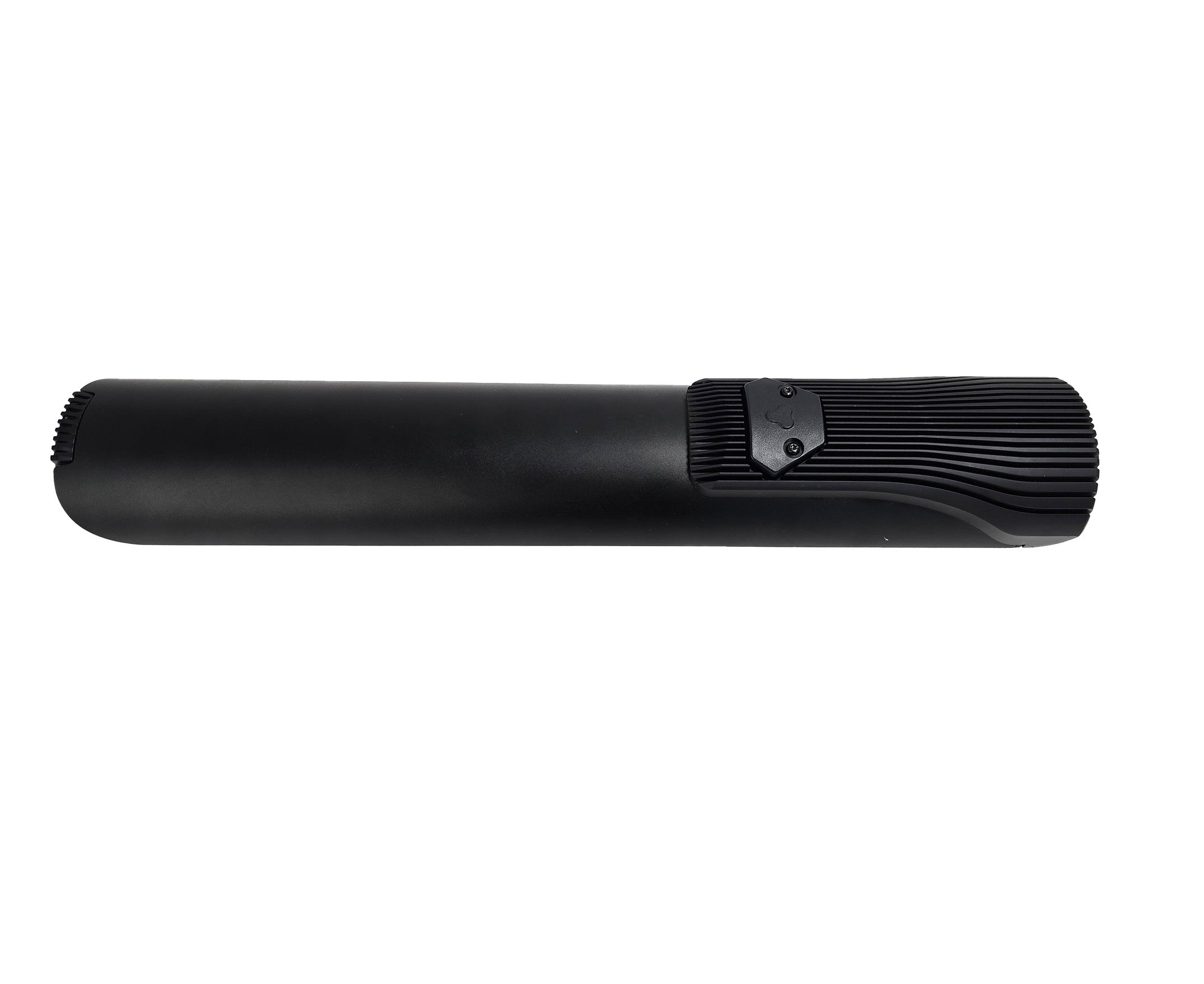

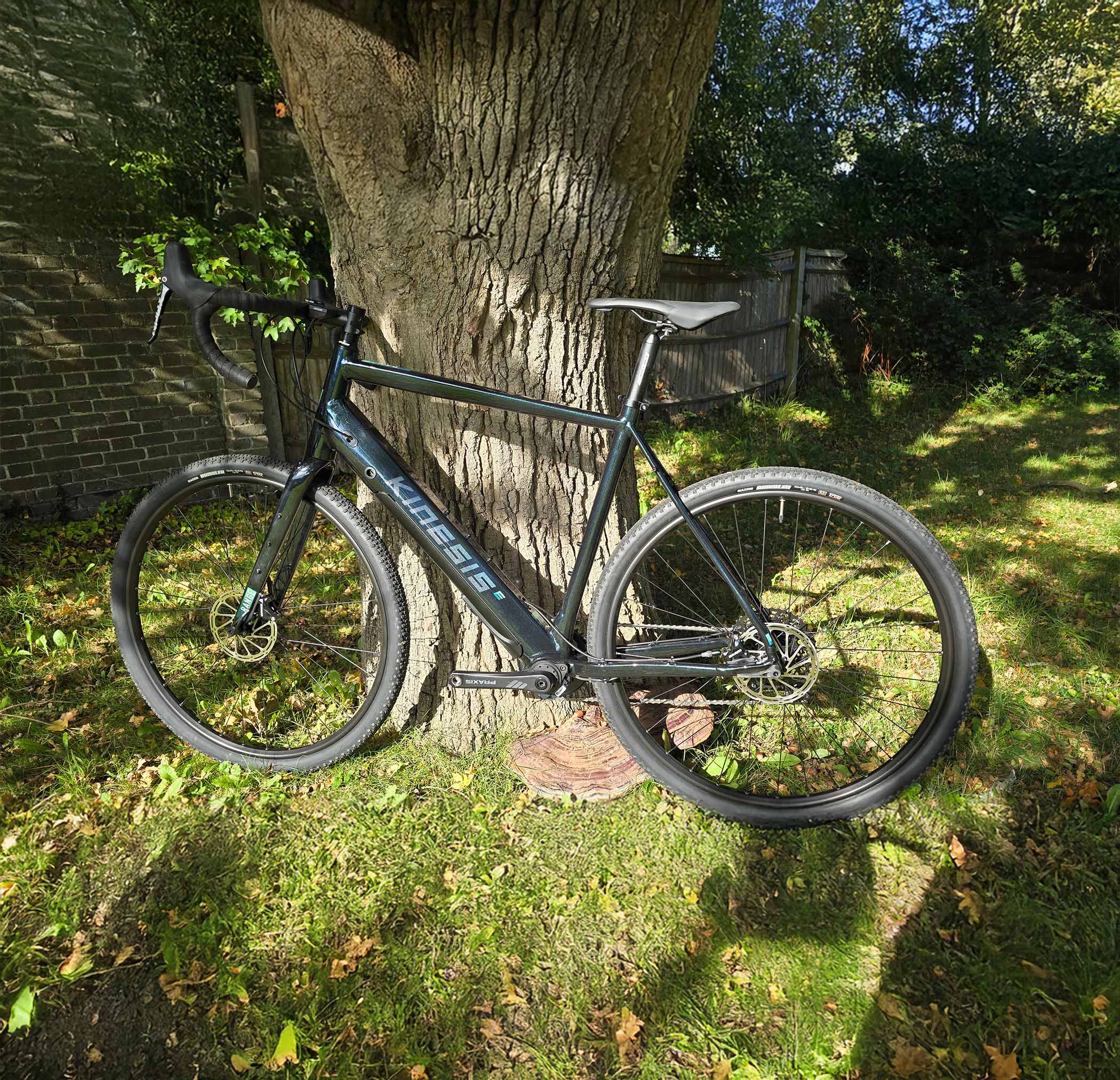

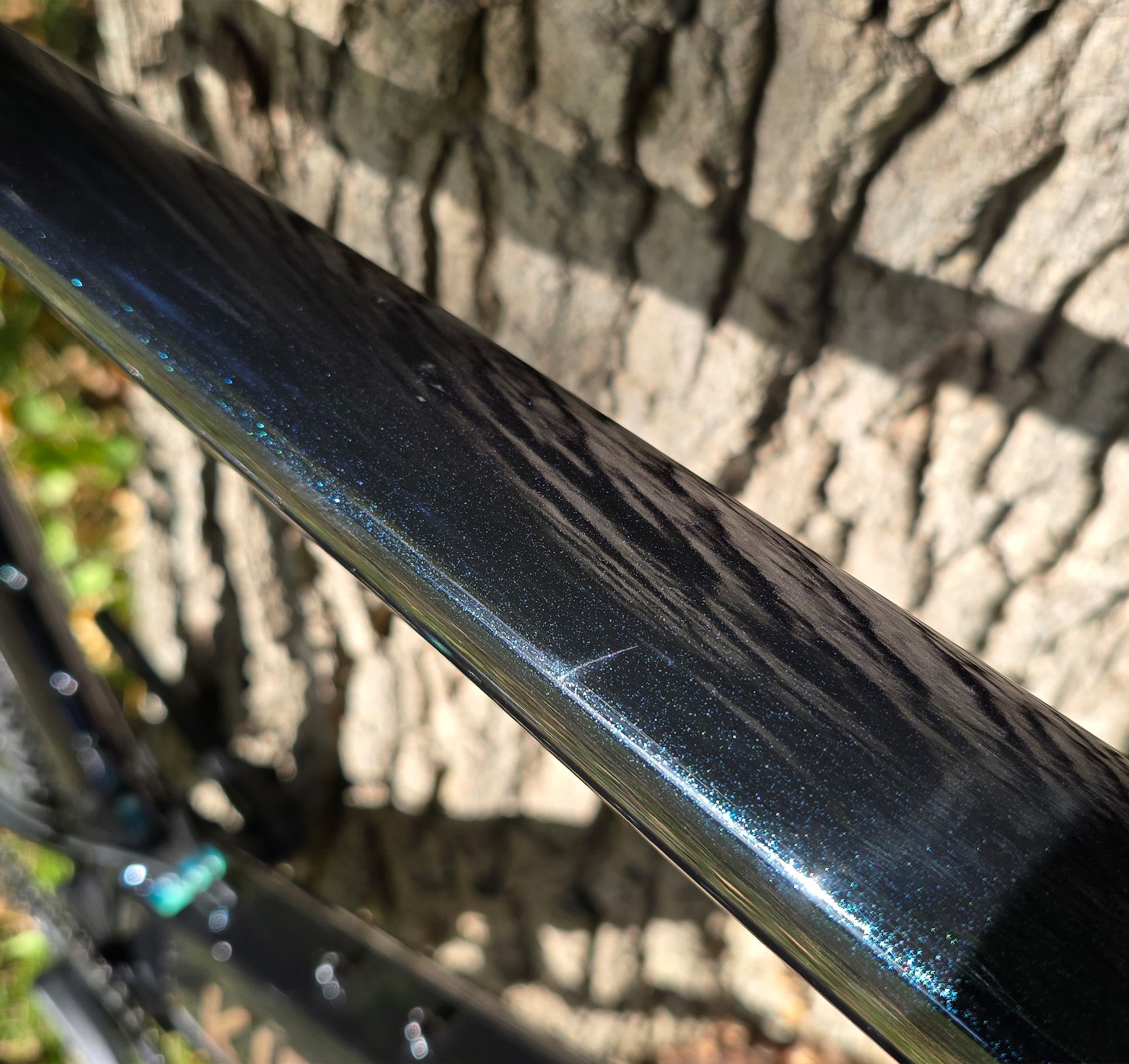

This bike was sold to a customer then returned. It has been ridden only 38km. This bike is in great condition. There is almost no wear on the drivetrain, brakes or tyres. Please see photos for full details. It has the older Evation style drive pack, but has the new style switch fitted to the handlebar.
Features
Specification
Geometry - Range Gravel
Kinesis Range Size | SMALL | MEDIUM | LARGE | X-LARGE |
Seat Tube Length C-T (mm) | 440 | 490 | 540 | 570 |
Top Tube Length Effective (mm) | 534 | 551 | 574 | 595 |
Head Tube Length (mm) | 131 | 157 | 185 | 224 |
Head Tube Angle (°) | 70.5 | 70.5 | 71 | 71 |
Seat Tube Angle (°) | 74 | 74 | 73.5 | 73.5 |
BB Drop (mm) | 75 | 75 | 72 | 70 |
Chainstay Length (mm) | 440 | 440 | 440 | 440 |
Front Centre (mm) | 602.7 | 621 | 635 | 657.9 |
Wheelbase (mm) | 1032 | 1050 | 1065 | 1089 |
Stack (mm) | 555 | 580 | 605 | 640 |
Reach (mm) | 375 | 385 | 395 | 405 |
Fork Length (mm) | 395 | 395 | 395 | 395 |
Fork Rake (mm) | 50 | 50 | 50 | 50 |
Trail (Actual) (mm) | 74 | 74 | 71 | 71 |
Standover A* (mm) | 708 | 745 | . | 834 |
Standover B* (mm) | 756 | 780 | . | 862 |
Handlebar Width (mm) | 420 | 440 | 460 | 460 |
Stem Length (mm) | 80 | 80 | 90 | 90 |
Crank Length (mm) | 165 | 165 | 170 | 170 |
Seatpost Length (mm) (350 x 31.6 / 25 offset) | 350 | 350 | 350 | 350 |
Seatpost Clamp (mm) | 34.9 | 34.9 | 34.9 | 34.9 |
*Standover A is measured from the floor through the bottom bracket to the top of the top tube *Standover B is measured from the floor through the centre of the top tube to the top of the top tube |
