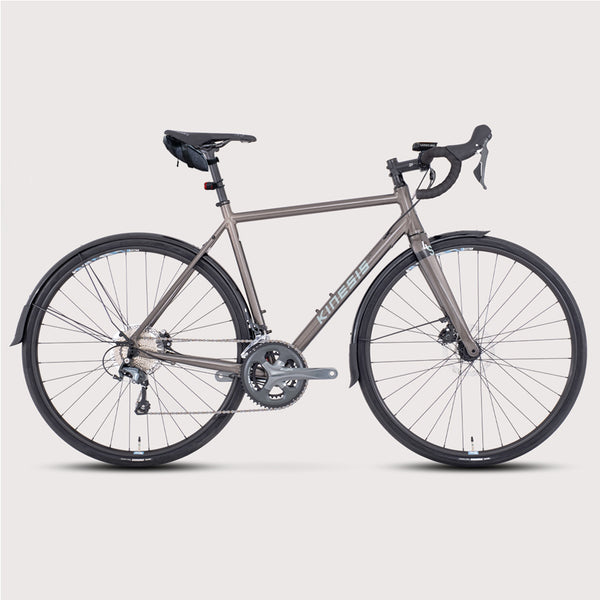

4S Tiagra in Graphite Grey

Sale price £1,600.00 GBP

Tax included

Shipping calculated at checkout

SKU: K-BIKE-4S-TI-3SM
Colour: Graphite Grey
Size
Size guide

Only 10 in stock


Introducing the brand-new Kinesis 4S Tiagra, a modern aluminium road bike designed for those who seek a balance between speed and adventure. We've taken our acclaimed Kinesis R1 and worked hard to improve every detail to improve every ride.

The 4S Tiagra is built around the same proven frame and fork as our highly praised, group test-winning R1 bike which Cycling Plus magazine proclaimed had "Understated class and excellent ride quality" and BikeRadar.com said had “instant zing when pressing the pedals". The lightweight double-butted 6061 Alloy tube blend provides a responsive ride feel, and the impeccable weld quality and attention to detail ensure high standards. Additionally, the internal down tube cable routing keeps the bike clean and easy to service. It features a Shimano 2x10 drivetrain, offering a wide gear range suitable for diverse terrains. The 4S Tiagra also comes ready to ride with mudguards fitted, making it suitable for all seasons.

The custom full UD carbon fork reduces road buzz and offers precise handling, while the Kinesis Rider Fit Geometry ensures comfortable all-day rides. With four sizes to choose from, finding the perfect bike fit is made simple. Get ready to experience the perfect blend of performance and adventure with the Kinesis 4S Tiagra.

Features

Frame — Lightweight double butted 6061 Alloy tube blend that delivers a light and responsive ride feel.

Fork — Custom full 'UD carbon' fork keeps weight low and takes out road buzz whilst feeling direct and accurate at all times.

Groupset — Full Tiagra 4700 20-speed groupset.

Brakes — Hydraulic Shimano Tiagra disc brakes are brilliantly reliable and handle the stopping duties with minimum effort.

Tyres — Maxxis Pursuer in 32c, hitting the sweet spot for grip, cornering and low rolling resistance.

Specification

COLOUR: Graphite Grey.

FRAME: Kinesis Double Butted Alloy 6061.

FORK: Kinesis Full UD Carbon.

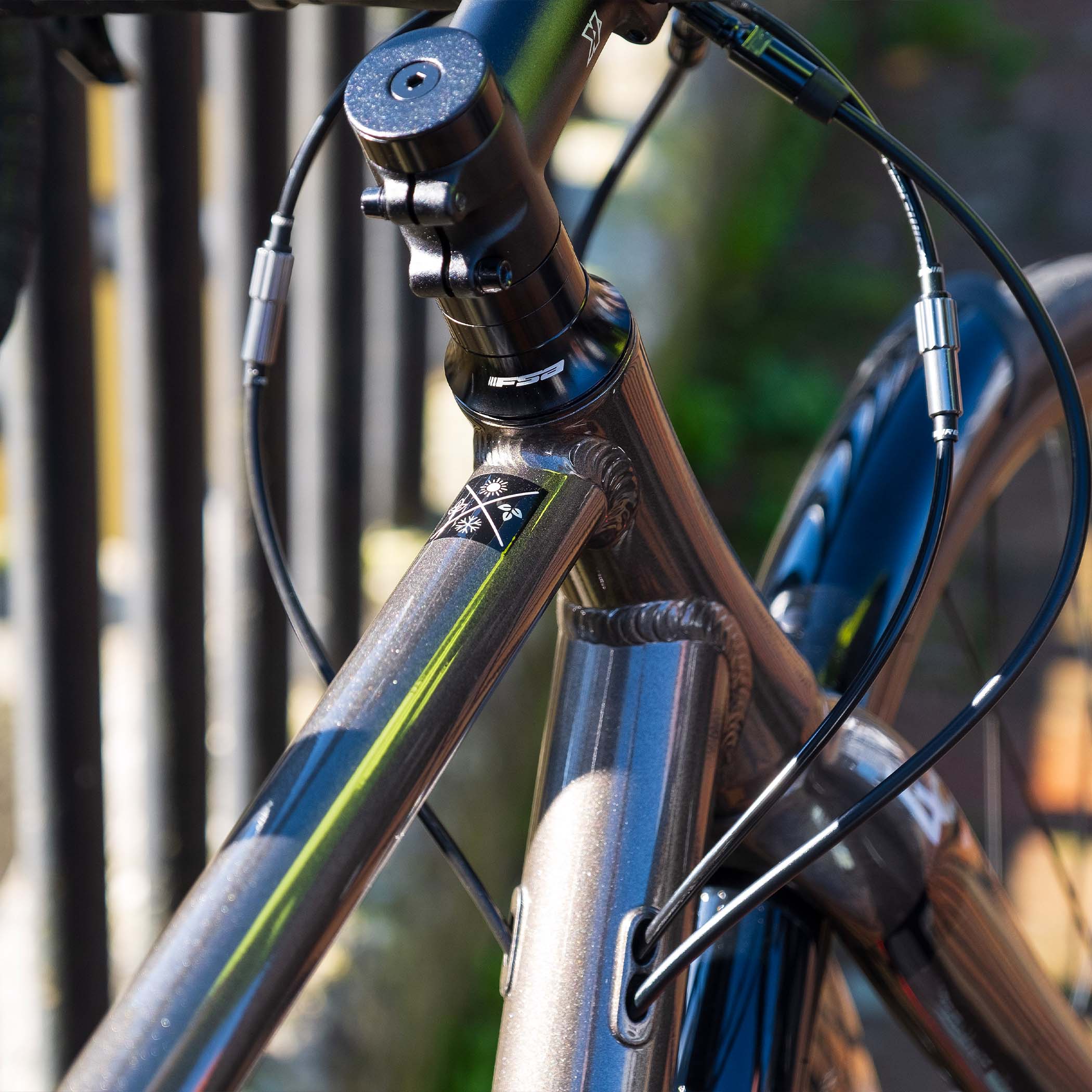

HEADSET: FSA Sealed Bearing No. 42 Integrated Road.

SHIFT LEVERS: Shimano Tiagra ST-4720.

REAR MECH: Shimano Tiagra RD-4700.

FRONT MECH: Shimano Tiagra FD-4700.

CHAIN: Shimano HG-51.

BOTTOM BRACKET: Shimano CN-HG54.

BRAKES: Shimano Tiagra BR-4770 Hydraulic.

ROTORS: Shimano RT64 160mm.

CASSETTE: Shimano CS-HG500 10 speed 11-34.

CRANKSET: Shimano Tiagra FC-4700 50/34t. S: 170mm, M & L: 172.5mm, XL: 175mm.

FRONT HUB: Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 100 mm Through Axle.

REAR HUB: Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 142 mm Through Axle.

RIMS: Lightweight low profile aluminium.

TYRES: Maxxis Pursuer 32c.

SEATPOST: Kinesis Alloy 6061 27.2 mm x 350 mm.

HANDLEBAR: Kinesis Alloy 6061 S(51):42 cm M(54):44 cm L(57):44 cm XL(60):46 cm.

STEM: Kinesis Alloy 6061 6° Rise S(51):80mm M(54):90mm L(57):90mm XL(60):100mm

BAR TAPE: Black Cork Bar Tape.

SADDLE: Selle Italia X3 Black.

Bike Weight: 10.1 kg Complete (Size Large 57cm).

Geometry - 4S
Frame Size Seat Tube Small (51*) Medium (54) Large (57) XLarge (60)

Seat Tube Length C-T 490 540 570 600
Top Tube Length Effective 532 545 561 580
Head Length 130 146 172 204
Head Tube Angle 71 72 72 72
Seat Tube Angle 74 74 74 74
Bottom Bracket Drop 70 70 70 70
Chain Stay Length 420 420 420 420
Front Centre 590.7 595 611.8 631.8
Wheelbase 1001 1005 1022 1042
Stack 538 557 582 612
Reach 378 385 394 404
Fork Axle to Crown 378 378 378 378
Fork Rake 45 45 45 45

*Semi-Sloping

Additional Info

Additional Info:

If ordered online, the 4S bike will be delivered 95% built.

The rotor will need fitting to front wheel (rotor is boxed between the front wheel and frame, and the lockring is in the spares/manuals box).

The front wheel needs fitting.

You’ll need to align the front brake.

Handlebars need fitting to the stem (the stem comes fitted with a positive rise, and all 3x10mm spacers under the stem).

Seatpost needs fitting (saddle attached to post).

The pedal washers are tied to the crank arms.

The Kinesis 4S bike has been checked prior to packing, however before your first ride the bike must have a PDI (Pre Delivery Inspection) by an authorised Kinesis Dealer.

Also the 4S bike comes with some spares and manuals in a separate box, in the bike box:

Front rotor lockring (as mentioned above).

Wheel reflectors.

Frame reflectors.

Quick Release axle manuals.

4S 2x Tiagra

The 4S Tiagra is based on the award winning R1, offering 'understated class and excellent ride quality'. Press on the pedals for an instant response or flick through the 2x setup to tackle any climb.

four seasons, one bike

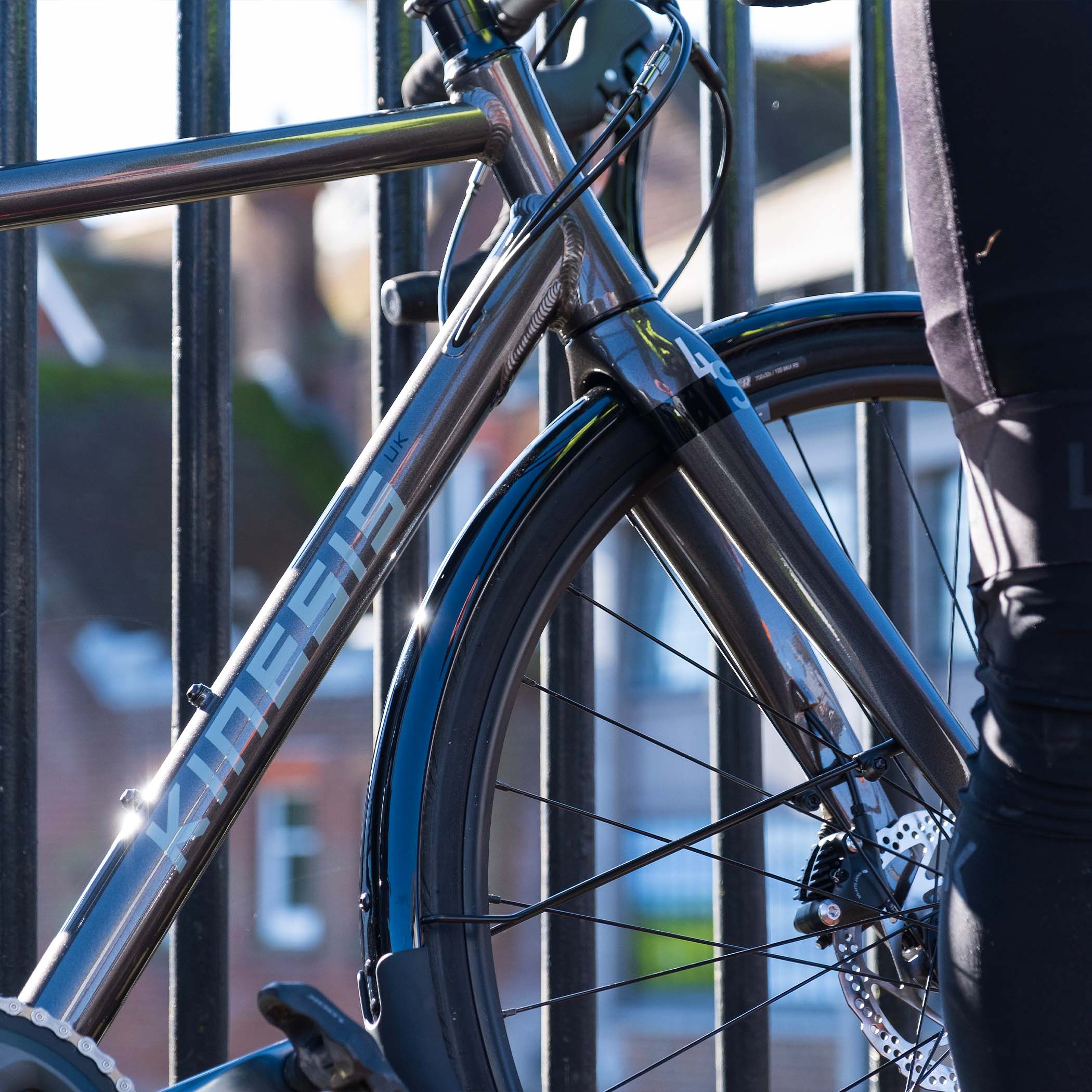

The lightweight alloy tube blend will turn heads everywhere you ride. The clean looks are enhanced with internal routing and the fitted mudguards will keep the worst of the road spray off the rider.
