Kinesis UK

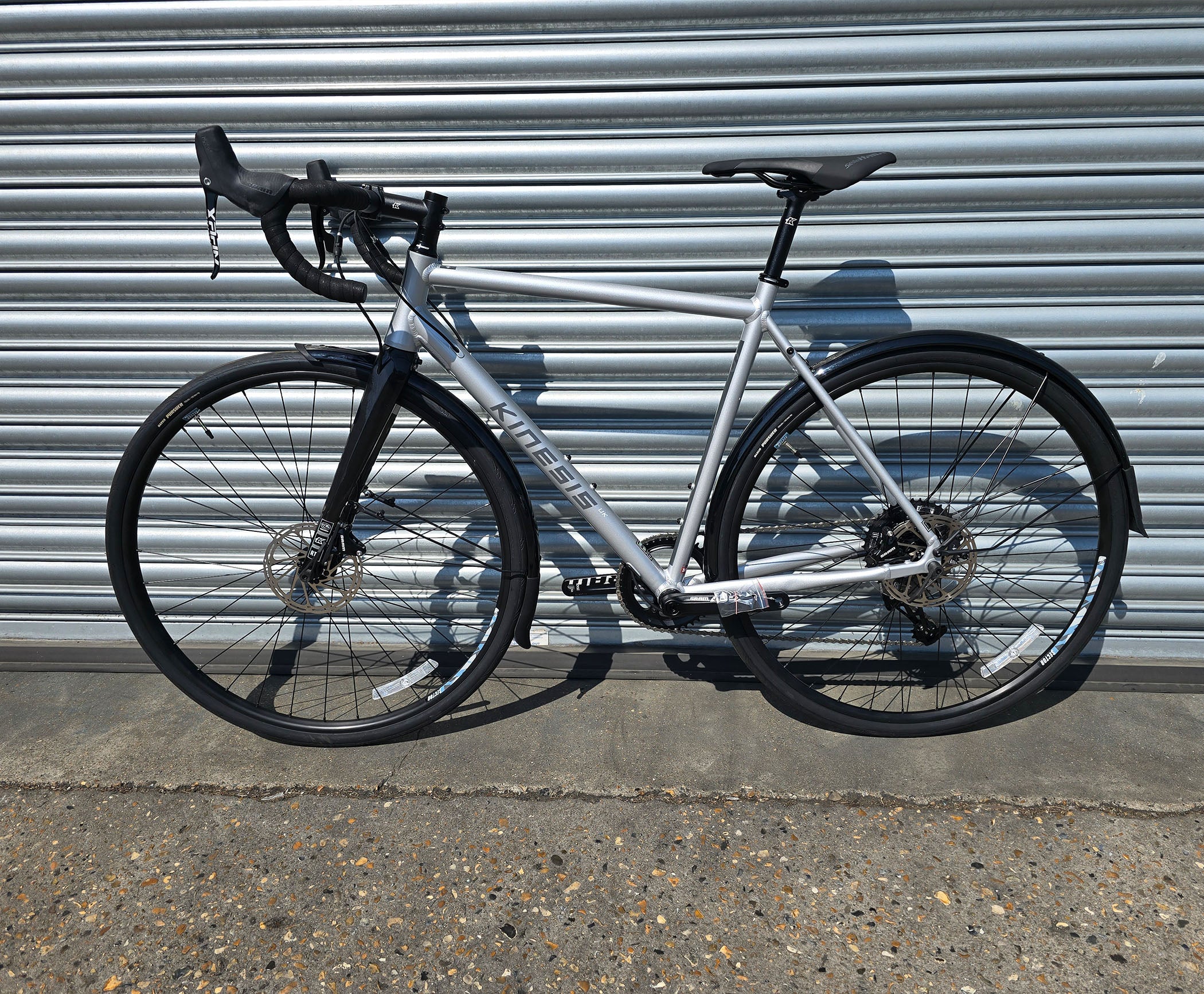

4S SRAM Apex in Silver Mist Medium Ex Display

Sale price £800.00 GBP

Shipping calculated at checkout

Colour: Silver Mist
Size
Size guide

Out of stock

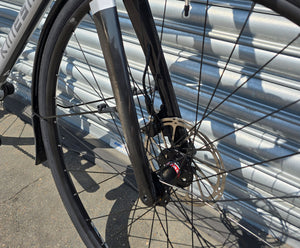

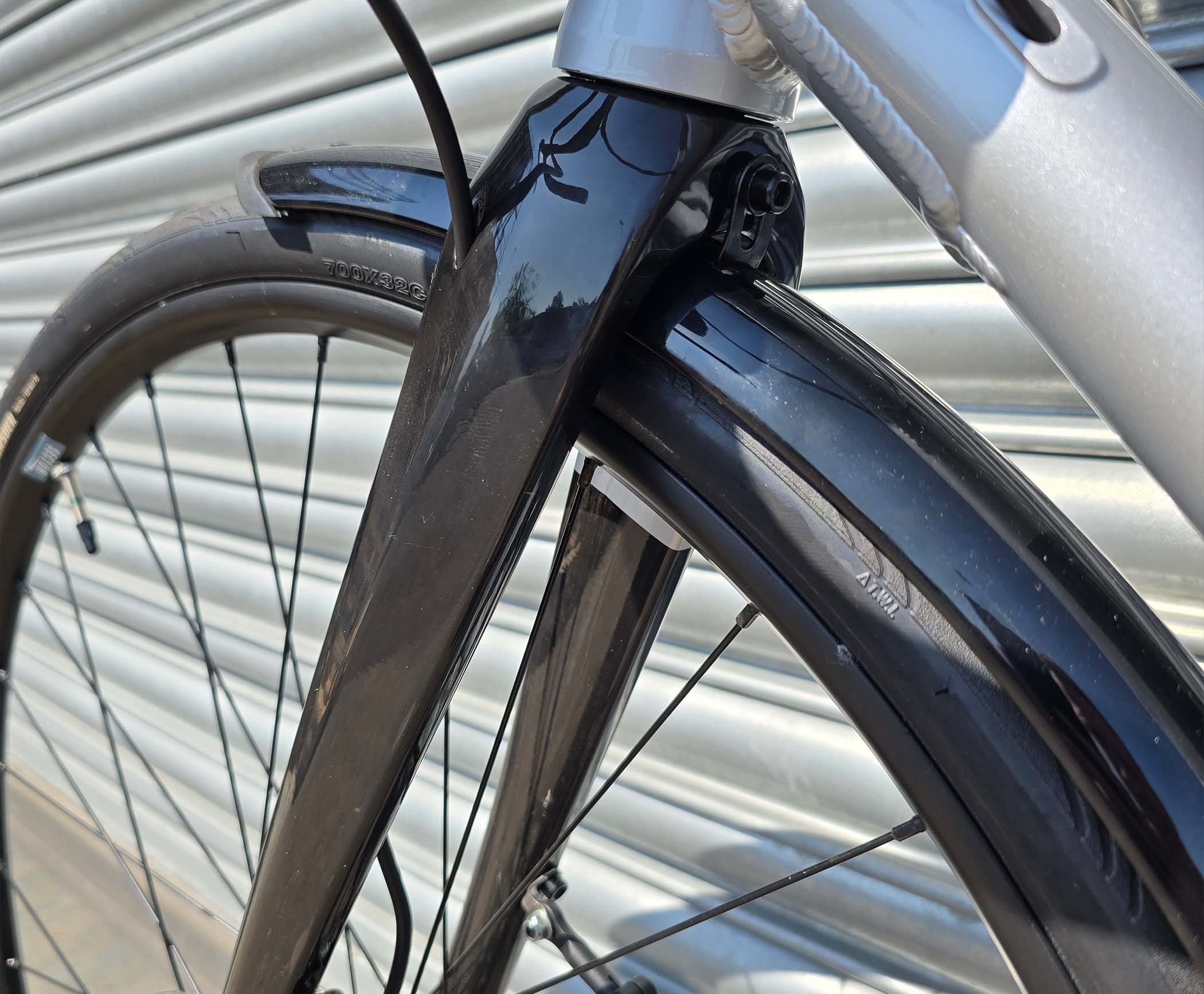

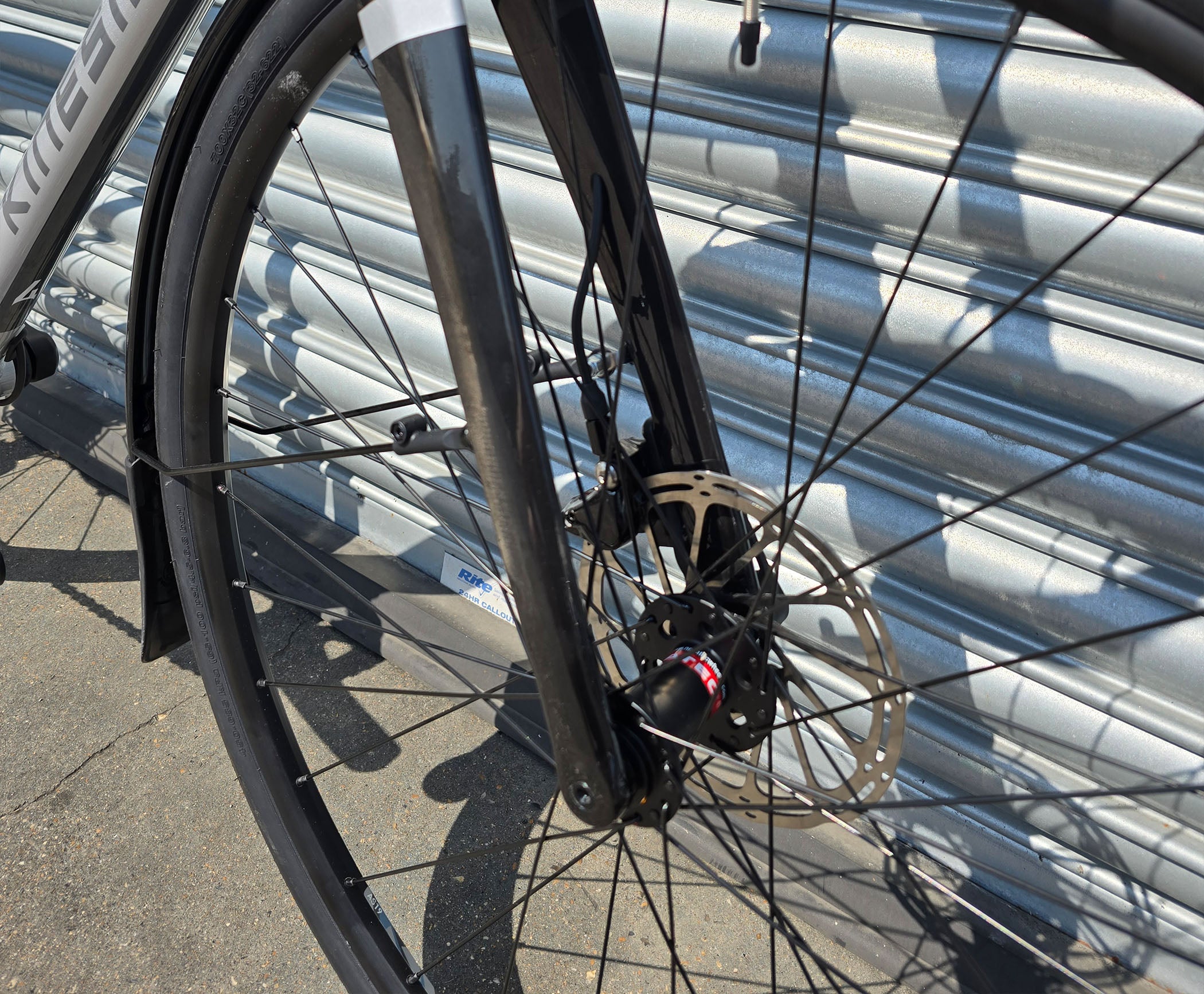

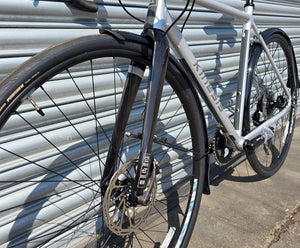

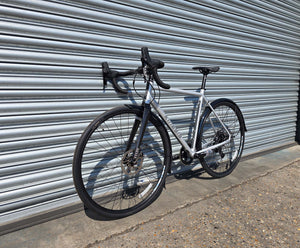

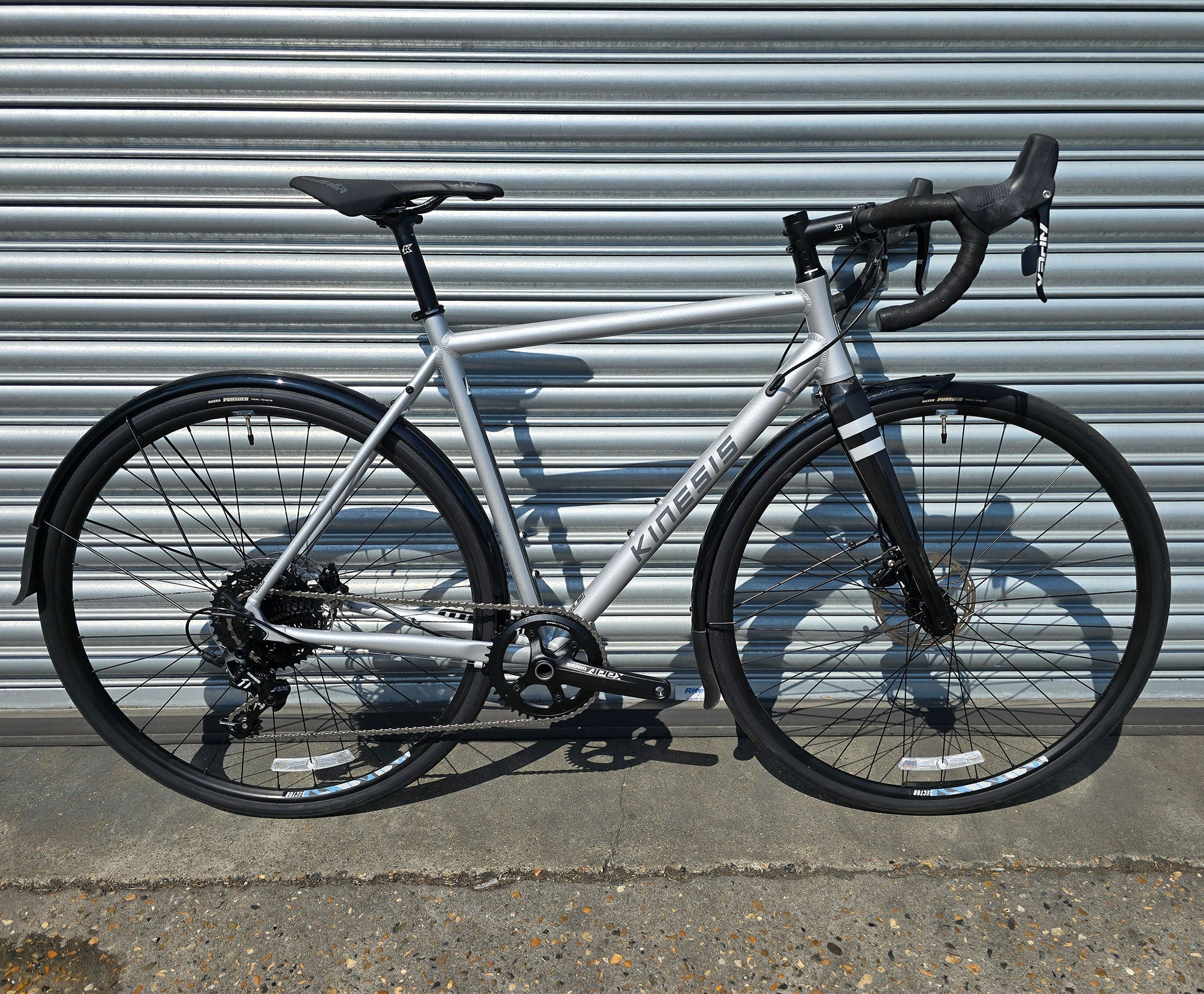

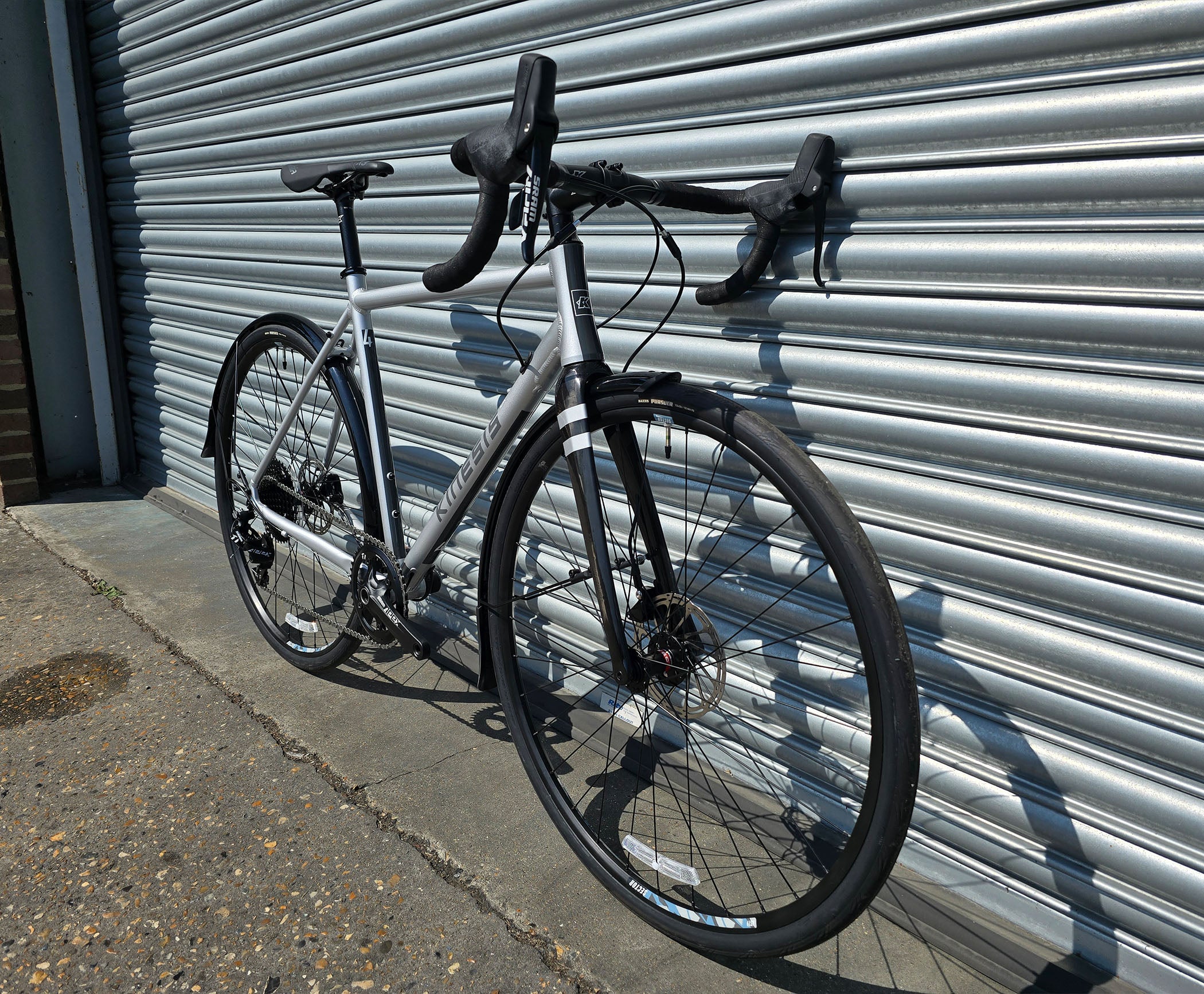

This bike is brand new and has not been ridden. The fork got damaged in transit, so was returned to us. The fork has been replaced with a black Kinesis RTD fork.
The 4S name says it all: Four Seasons. This is a road bike designed to be ridden and enjoyed all year round, not stored when the weather turns. It comes ready for real UK riding, with full mudguards already fitted, a carbon fork, SRAM Apex gears, full hydraulic disc brakes and slightly flared bars that give extra control on rougher roads or loaded with a bar bag on longer days out.

The SRAM 1x drivetrain keeps things simple. One chainring, less to adjust, less to go wrong. Its wide gear range handles steep climbs and fast descents without fuss, and the editors at road.cc found that after testing it on their regular routes, the ride position of the 4S bike is comfortable enough to pay dividends on longer rides and would be their choice for daily commuting or year-round use. Built around a lightweight double-butted 6061 aluminium frame and Kinesis Rider Fit Geometry, the 4S works across four sizes and is sized to fit a wider range of riders than many bikes at this price. At £845 with free UK delivery, it's one of the strongest value road bikes available direct from a UK brand with over 25 years of frame-building experience. Available in Silver Mist. Direct from Kinesis only. Cannot be purchased with promotion codes..

Features

Frame — Lightweight double butted 6061 Alloy tube blend that delivers a light and responsive ride feel.
Fork — black RTD T700S and HFM carbon fibre monocoque, tapered steerer 1-1/8" - 1-1/4".
Groupset — Full SRAM Apex 11 speed groupset.
Brakes — Hydraulic SRAM Apex disc brakes are brilliantly reliable and handle the stopping duties with minimum effort.
Tyres — Maxxis Pursuer 32c, hitting the sweet spot for grip, cornering and low rolling resistance.

Specification

COLOUR: Silver Mist.
FRAME: Kinesis Double Butted Alloy 6061.
FORK: Kinesis RTD 1-1/8" - 1-1/4" tapered.
HEADSET: FSA Sealed Bearing No. 42 Integrated Road.

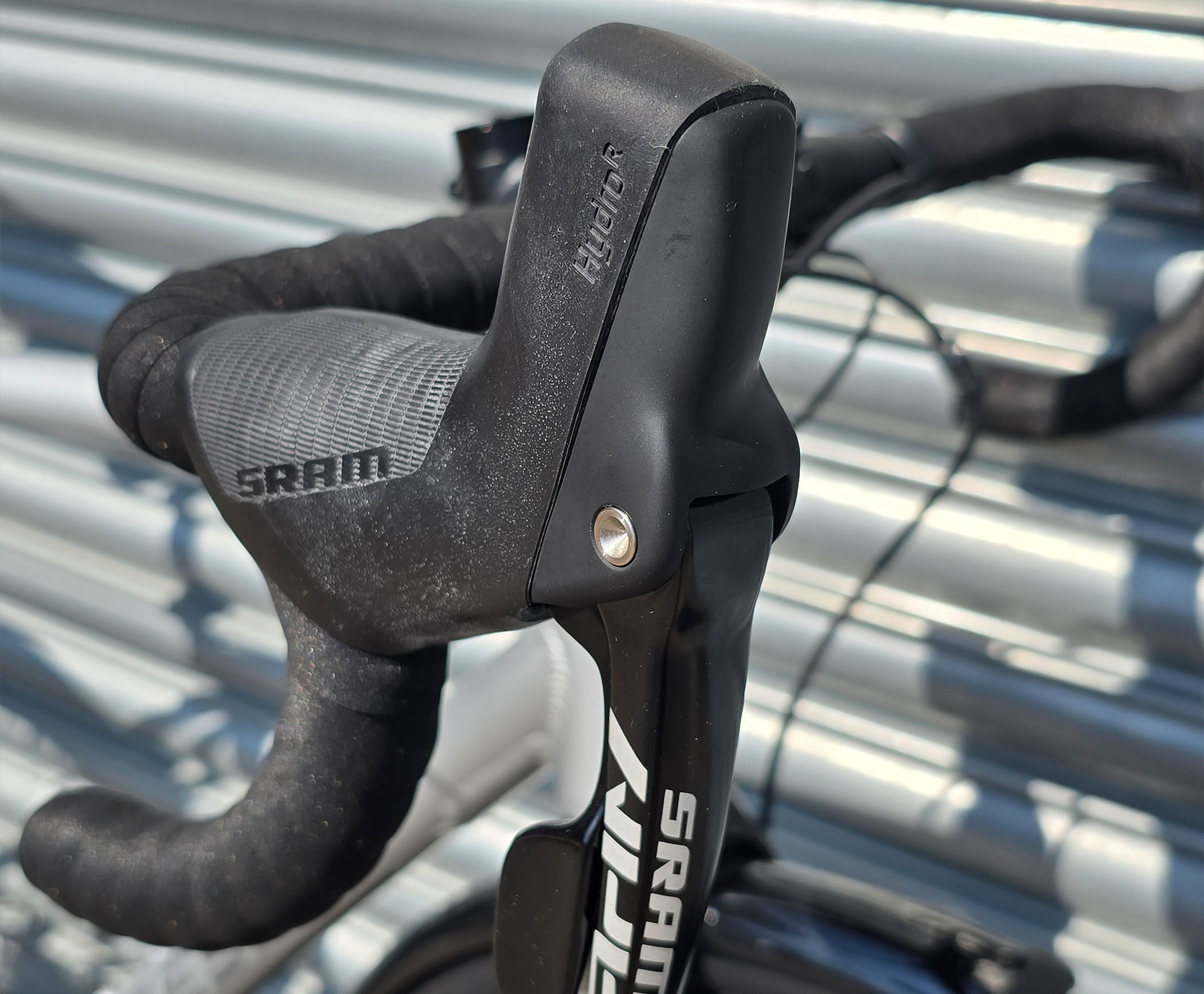

SHIFT LEVERS: SRAM Apex 1 HRD.

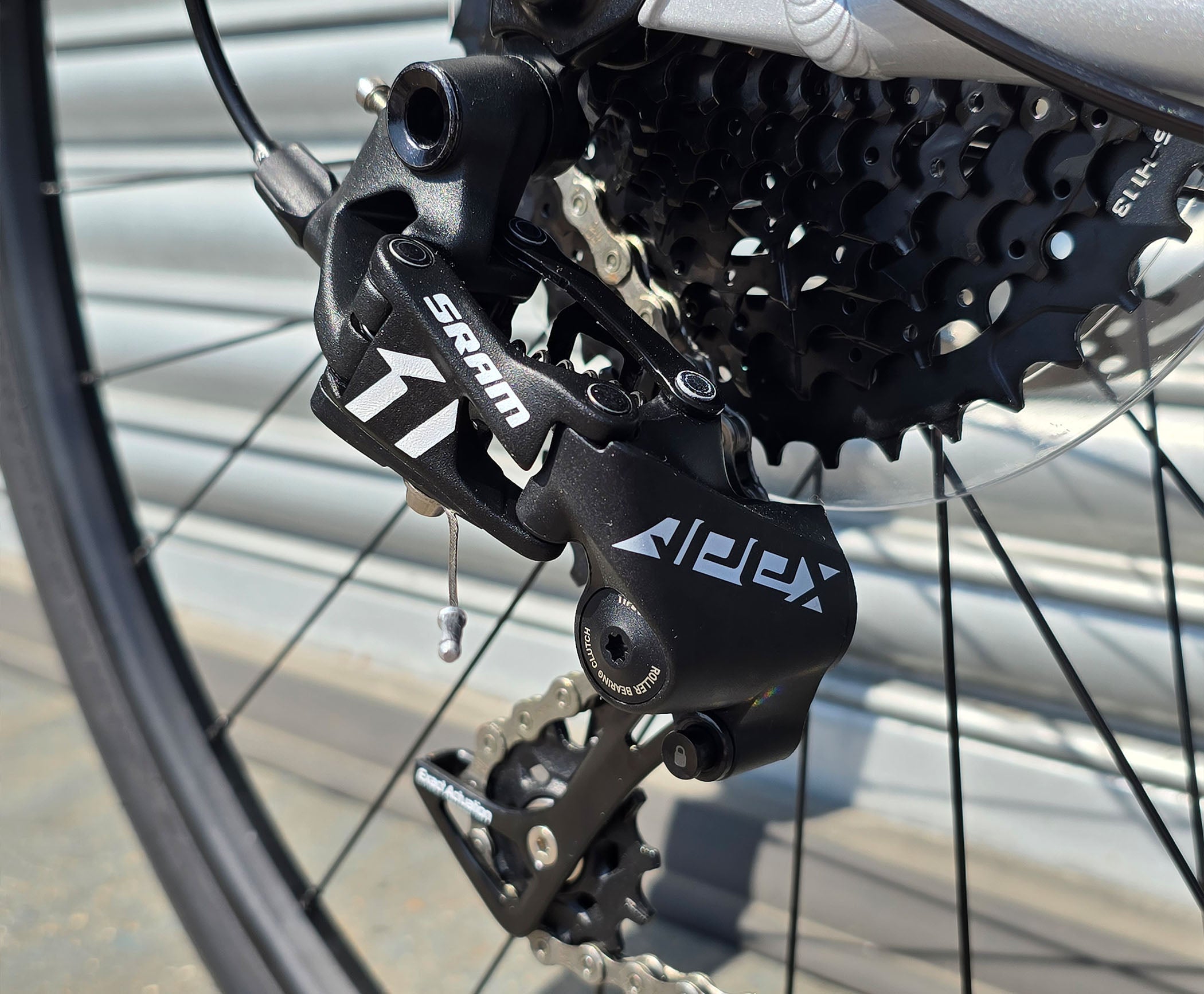

REAR MECH: SRAM Apex 1 Long Cage.
CHAIN: SRAM PC1110 with POWERLOCK.
BOTTOM BRACKET: SRAM BB GXP.
BRAKES: SRAM Apex 1 HYD 160mm Rotors.
CASSETTE: SRAM PG-1130 POWERGLIDE 11-42.
CRANKSET: SRAM Apex 1 X-SYNC 44t M(54):172.5mm.
FRONT HUB: Alloy, Sealed Cartridge Bearing Hub, 6-bolt, 12mm x 100mm.
REAR HUB: Alloy, Sealed Cartridge Bearing Hub, 6-bolt, 12mm x 142mm Through Axle.
RIMS: Lightweight, low-profile aluminium.
TYRES: Maxxis Pursuer 32c.
SEATPOST: Kinesis Alloy 6061 27.2 mm x 350 mm.
HANDLEBAR: Kinesis Alloy 6061 M(54):44 cm.
STEM: Kinesis Alloy 6061 6° Rise M(54):90mm.
BAR TAPE: Black Cork Bar Tape.
SADDLE: Selle Italia X3 Black.
WEIGHT: 9.5kg Complete (Size Large 57cm)

Geometry changes from standard 4S bike:
Axle-to-crown = 382mm
Stack = 561mm
Fork rake = 47mm

Kinesis 4S Geometry
Frame Size 51cm (S)* 54cm (M) 57cm (L) 60cm (XL)
Seat Tube Length C-T 490 540 570 600
Top Tube Length (Effective) 532 545 561 580
Head Tube Length 130 146 172 204
Head Tube Angle 71° 72° 72° 72°
Seat Tube Angle 74° 74° 74° 74°
Bottom Bracket Drop 70 70 70 70
Chain Stay Length 420 420 420 420
Front Centre 590.7 595 611.8 631.8
Wheelbase 1001 1005 1022 1042
Stack 538 557 582 612
Reach 378 385 394 404
Fork Axle to Crown 378 378 378 378
Fork Rake 45 45 45 45

*Semi-sloping Top Tube.
All measurements in mm.

Size Guide

Additional Info

The 4 Apex bike will be delivered 95% built.
The rotor will need to be fitted to the front wheel (rotor is boxed between the front wheel and frame, and the lockring is in the spares/manuals box).
The front wheel needs fitting.
You’ll need to align the front brake.
Handlebars need fitting to the stem (the stem comes fitted with a positive rise, and all 3x10mm spacers under the stem).
Seatpost needs fitting (saddle attached to post).
The pedal washers are tied to the crank arms.
The Kinesis 4 Apex bike has been checked prior to packing. Before your first ride, the bike must have a PDI (Pre-Delivery Inspection) by an authorised Kinesis Dealer.
Also, the 4 Apex bike comes with some spares and manuals in a separate box, in the bike box:
Front rotor lockring (as mentioned above).
Wheel reflectors.
Frame reflectors.
Quick-Release axle manuals.
SRAM rotor manual.
