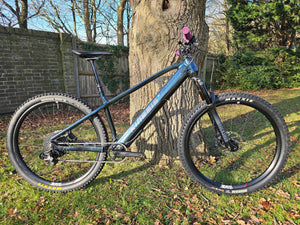

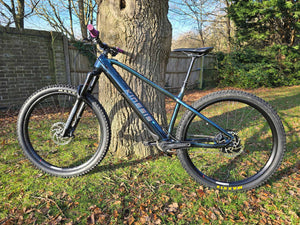

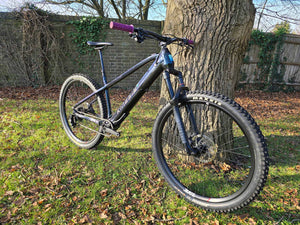

Rise EBike LG (L3) Ex-Display

Sale price £1,400.00 GBP

Shipping calculated at checkout

SKU: DEMO-KP-RISE-L2
Colour: Blue

Out of stock

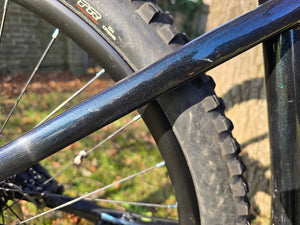

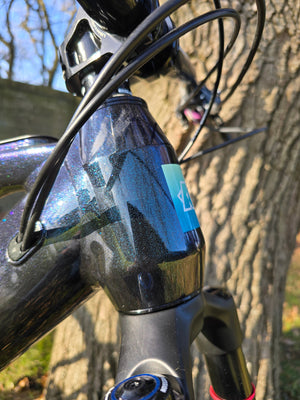

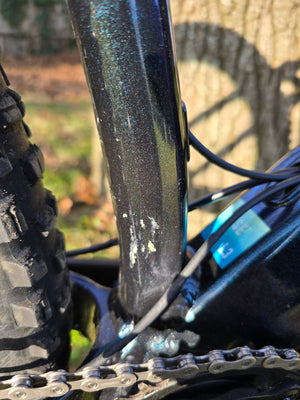

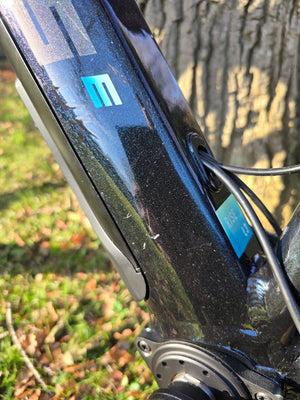

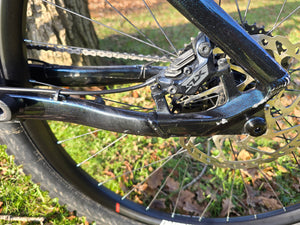

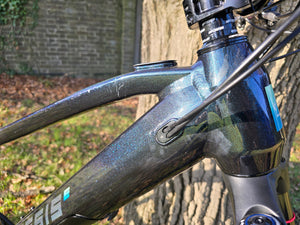

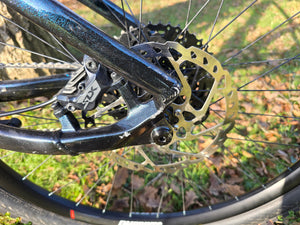

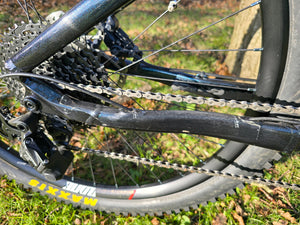

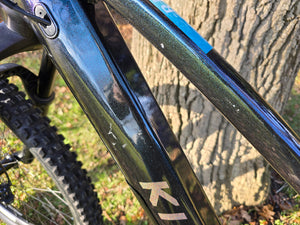

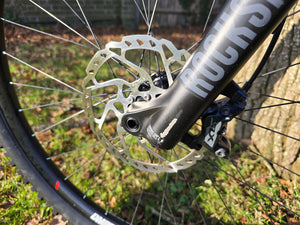

This is an ex-demo model that has been ridden for 405km. There are scuffs and scratches on the frame and forks. The drivetrain is showing signs of wear, and there are some scuffs on the rear derailleur. The forks have some scuffs on them, they have not been serviced but they have had the wiper seals lubricated. The front brake rotor is quite new – 1.8mm thick, the rear brake rotor has some wear – 1.7mm thick. The front brake pads are quite new, the rear brake pads have some wear.

BE A RIDER, NOT A PASSENGER... The capable E-Trail hardtail was created for real mountain biking. Born from a British love of the hardtail, and coupled with a lightweight Fazua drive system to maintain the fundamental characteristics that make sliding around the woods so fun. A bike to be cornered jumped, dropped, and enjoyed... again and again. Thanks to the lightweight and replaceable battery, RISE can take your riding to the next level with just as much assistance and just as much range as you need. So no matter if you have just one hour, or one whole day to get out on the bike. It's time to do more of what you love.

WARNING: The maximum total weight allowed (rider, clothing, protective gear, backpack, luggage etc.) is 120kg.

FAZUA: SMALLER, LIGHTER, MORE NATURAL. RISE is a bike that doesn't compromise on handling and ride quality just because there's a motor attached to it. Thanks to the lightweight Fazua Evation system, bike weight is kept low and the 400W (peak) assistance feels smooth and natural. Unlike other systems, at 15.5mph (the legal limit in the UK), the motor decouples from the drivetrain, allowing you to pedal RISE like a regular bike.

TWO BIKES IN ONE: The Fazua system features a removable battery and motor system, allowing you to replace them with a blanking plate. So when the time comes, you can ride the Rise as the capable hardtail that it is, completely unassisted.

AS MUCH AS YOU NEED: Thanks to the removable battery, you can equip yourself with a spare battery, doubling the range of the Rise. Leave it in the car at the trailhead, or put it in your bag, and only carry as much battery as you need!

GEOMETRY LEADING DESIGN. Geometry is the number one factor in the handling of a mountain bike frame. RISE has been designed with forward-thinking geometry for the ultimate ride.

LONG, LOW & STABLE: 29" Wheels, big reach numbers, small seat tubes, steep seat angles. All the right elements for a precise handling, efficient pedalling trail machine.

SIZE BY LENGTH: RISE features a length-based sizing system. Depending on how you like your fit, you can size up or down to according to reach. Thanks to the small seat tubes and long dropper posts - each size accommodates a wide range of riders.

CUSTOM OFFSET: Thanks to long front centres and a custom reduced 44mm fork offset; the increased trail of RISE creates stability without having the cumbersome handling of an overly slack bike. As a result, RISE blends high speed capability with intuitive trail manners. EQUIPPED FOR A GOOD TIME. The RISE electric mountain bike comes built for years of happy riding.

Features

POWERED BY FAZUA
UPTO 450W ASSISTANCE
LOW DRAG DRIVE UNIT
55Nm TORQUE

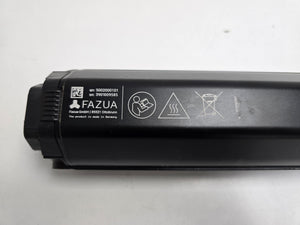

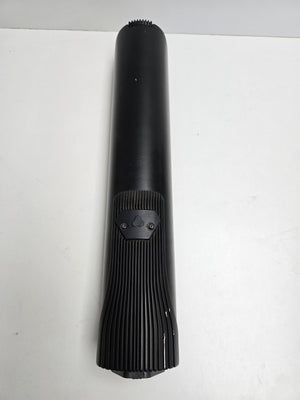

250Wh REMOVABLE & REPLACEABLE BATTERY - ONLY 1.38kg
RANGE: 1000m ELEVATION (UP TO 55km USING MIXED MODES)
Choose from three levels of assistance or pedal without any help, just as you would on a non-motorised bike.
BREEZE MODE: Feel the tailwind and extend your battery runtime. Up to 125W of power
RIVER MODE: Add some solid power and sail the trail. Up to 250W of power
ROCKET MODE: Rock on! Up to 450W of power
Fazua bX handlebar remote: An easy mode changer.

Specification

COLOUR: Galactic Blue

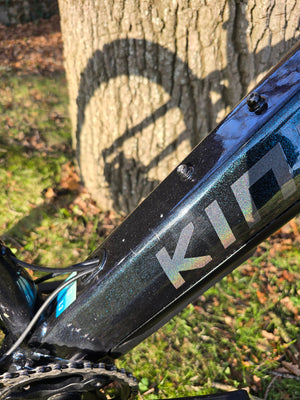

FRAME: Kinesis UK RISE Hardtail custom 6061 Hydroformed Aluminium Frame

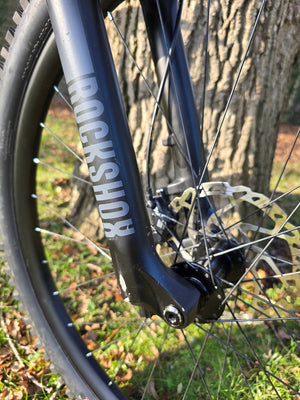

FORK: Rockshox emtb 35mm stanchion
HEADSET: FSA No.57 - Tapered - Top: ZS44/28.6 - Bottom ZS56/40
SHIFT LEVERS: Tektro ED-9

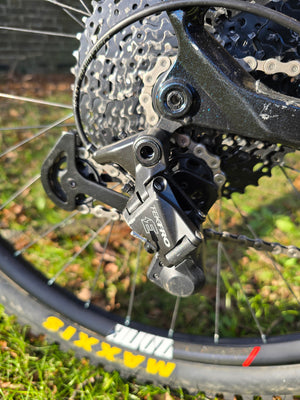

REAR MECH: Tektro ED-9 with clutch
CHAIN: Shimano 9-Speed
BOTTOM BRACKET: Fazua Evation
BRAKES: Shimano SLX 4-pot, 180mm rotors

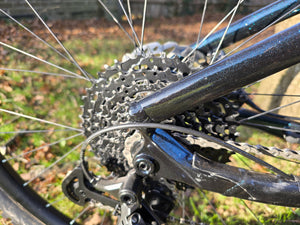

CASSETTE: Tektro ED-9, 11-46, 9-speed
CRANKSET: FSA 165mm Alloy E-Crank 34t Ring
FRONT HUB: DMR Zone boost - 32h - 15x110mm
REAR HUB: DMR Zone Boost - 32h - 148x12mm
RIMS: DMR Zone 29”

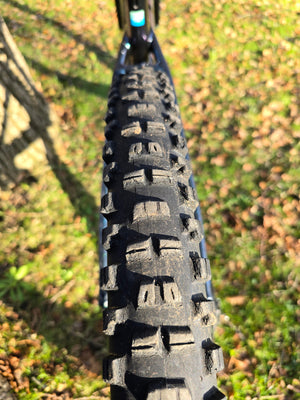

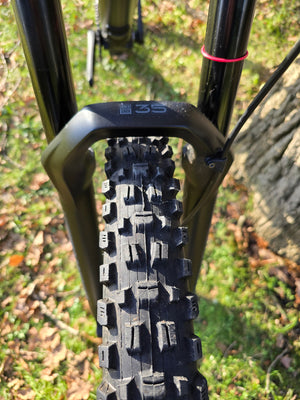

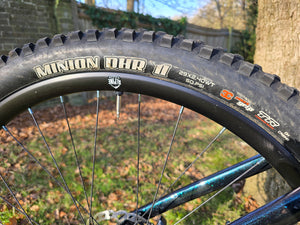

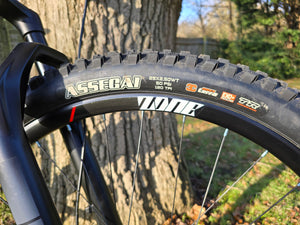

TYRES: Maxxis Assegai 2.5" Front EXO+ Max Terra, Maxxis Minion DHR 2.4" Rear Max Grip

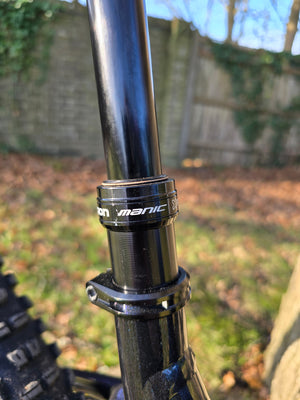

SEATPOST: X-Fusion Manic Dropper - 31.6mm diameter - 34.9mm clamp / 170mm drop

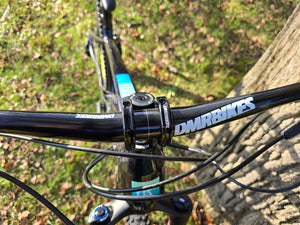

HANDLEBAR: DMR Wingbar 800mm / 35mm clamp
STEM: DMR Defy50 / 35mm clamp

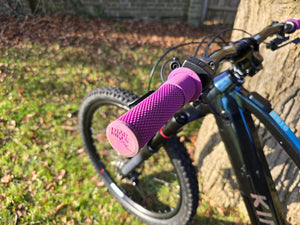

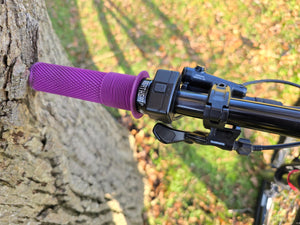

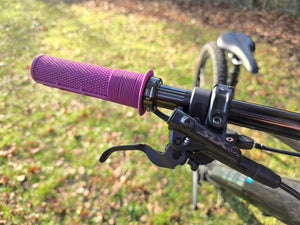

GRIPS: DMR DeathGrip

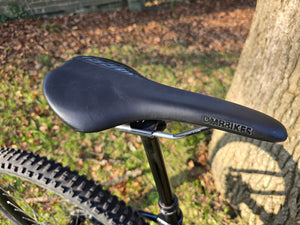

SADDLE: DMR Stage
PEDAL: DMR V6
BIKE WEIGHT: 19.7kg

Geometry - Rise

Frame Size Seat Tube L1 L2 L3 L4

Reach 437 461 485 510
Head Tube Length Effective 120 120 125 140
Head Tube Angle 66.7 66.7 66.7 66.7
Seat Tube Angle 75.5 75.5 75.5 75.5
Bottom Bracket Drop 55 55 55 55
Chain Stay Length 445 445 445 445
Front Centre 743 767 793 829
Wheelbase 1183 1206 1233 1268
Stack 634 634 639 653
Dropper Post Length (mm) 150 170 170 170
Fork Length 536 536 536 536
Fork Rake 44 44 44 44

Additional Info

This is an ex-demo model that has been ridden for 405km. There are scuffs and scratches on the frame and forks. The drivetrain is showing signs of wear, and there are some scuffs on the rear derailleur. The forks have some scuffs on them, they have not been serviced but they have had the wiper seals lubricated. The front brake rotor is quite new – 1.8mm thick, the rear brake rotor has some wear – 1.7mm thick. The front brake pads are quite new, the rear brake pads have some wear.
