Range Fork

Regular price £400.00 GBP

Tax included

Shipping calculated at checkout

SKU: K-FK-RANGE-K
Colour: Black
Size

Only 10 in stock

Kinesis Ebike category and the RANGE fork has been paired to compliment our Ebikes RANGE (Adventure) and RANGE Flat Bar (Fitness).

Originally the RANGE fork was designed to be used with the new and improved Kinesis Tripster ATR. However, it is now available to purchase separately to upgrade your current bike, ready for the next adventure.

The RANGE Fork has 3 cargo mounts on the left and right legs (6 in total), the Range fork is extremely customizable and can easily accommodate bottle cages as well as luggage racks, perfect for all adventures. The Range fork also provides internal routing for the front brake, creating a much tidier front end and reducing the risk of cable snag.

With full UD Carbon Fibre construction, the Range carbon fork absorbs all vibrations, resulting in a smooth and comfortable ride whilst also being incredibly light at only 500g (without axle).

The luggage carrying weight capacity of the Range fork is 3kg per side. We recommend distributing weight evenly between the two sides so as not to affect handling.

The minimum bolt insertion depth must be 10mm. The maximum bolt insertion depth is 16mm on the topmost and middle mounting hole, and 12mm on the lowest hole. The range fork is not supplied with cargo mount bolts as the length of bolt required for your rack or mount can vary greatly depending on the thickness of the material used in the construction of your rack or mount. If bolts of too short a length are fitted it may cause the threads to strip and the rack or mount to fail. If bolts of too long a length are fitted, you will damage the carbon inside the fork.

Features

Full UD Carbon Construction

12mm GW Switch Lever Axle

Three mounting holes on each fork leg

Internal brake hose routing.Mudguard Eyelets

300mm Steerer.Discreet Shimano Flat Mount

Material: UD Carbon Fibre

Steerer Size: 1.1/8" - 1.5" Tapered

Wheel Size: 700c

Rake: 50mm

Weight: 500g (without axle)

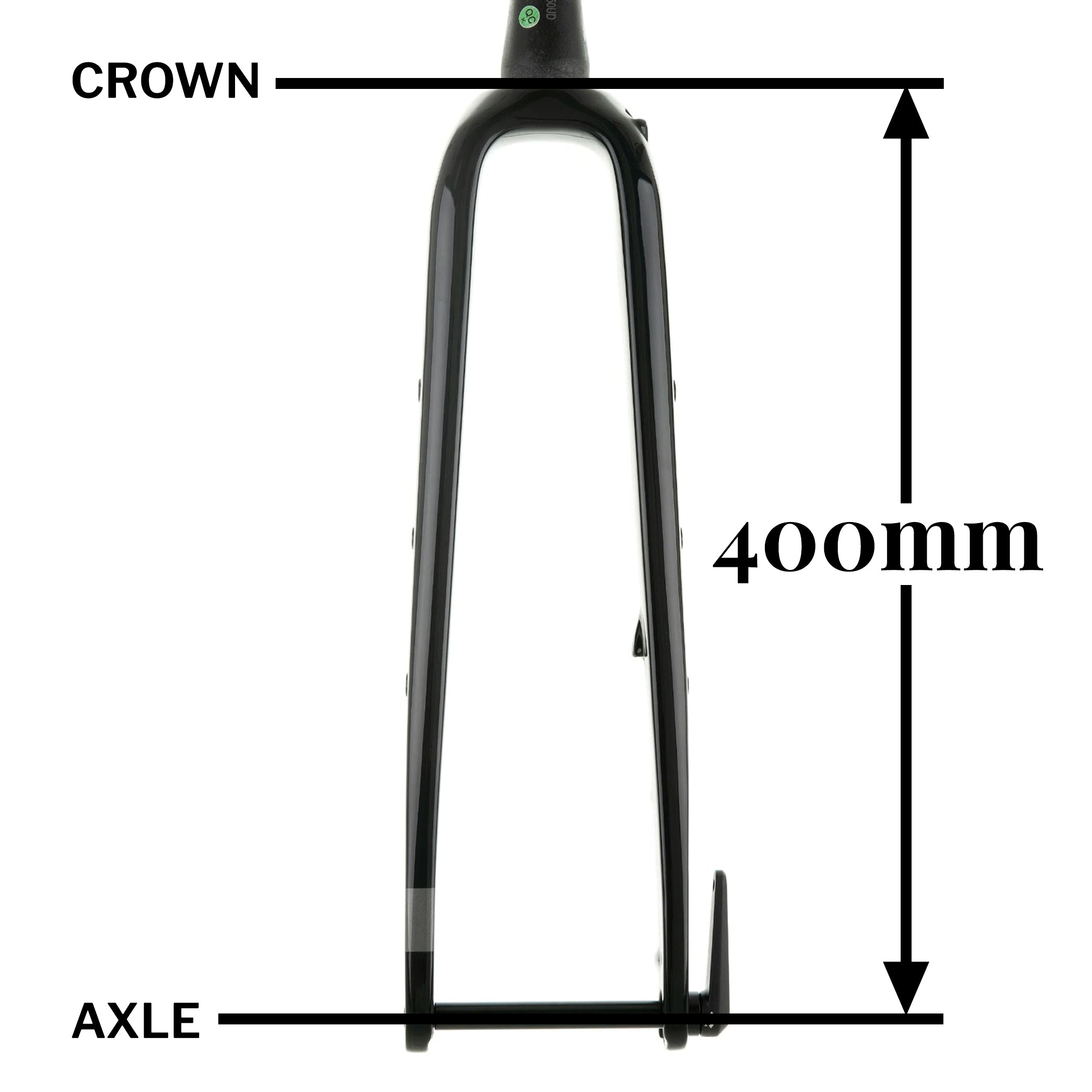

Crown Height: 400mm

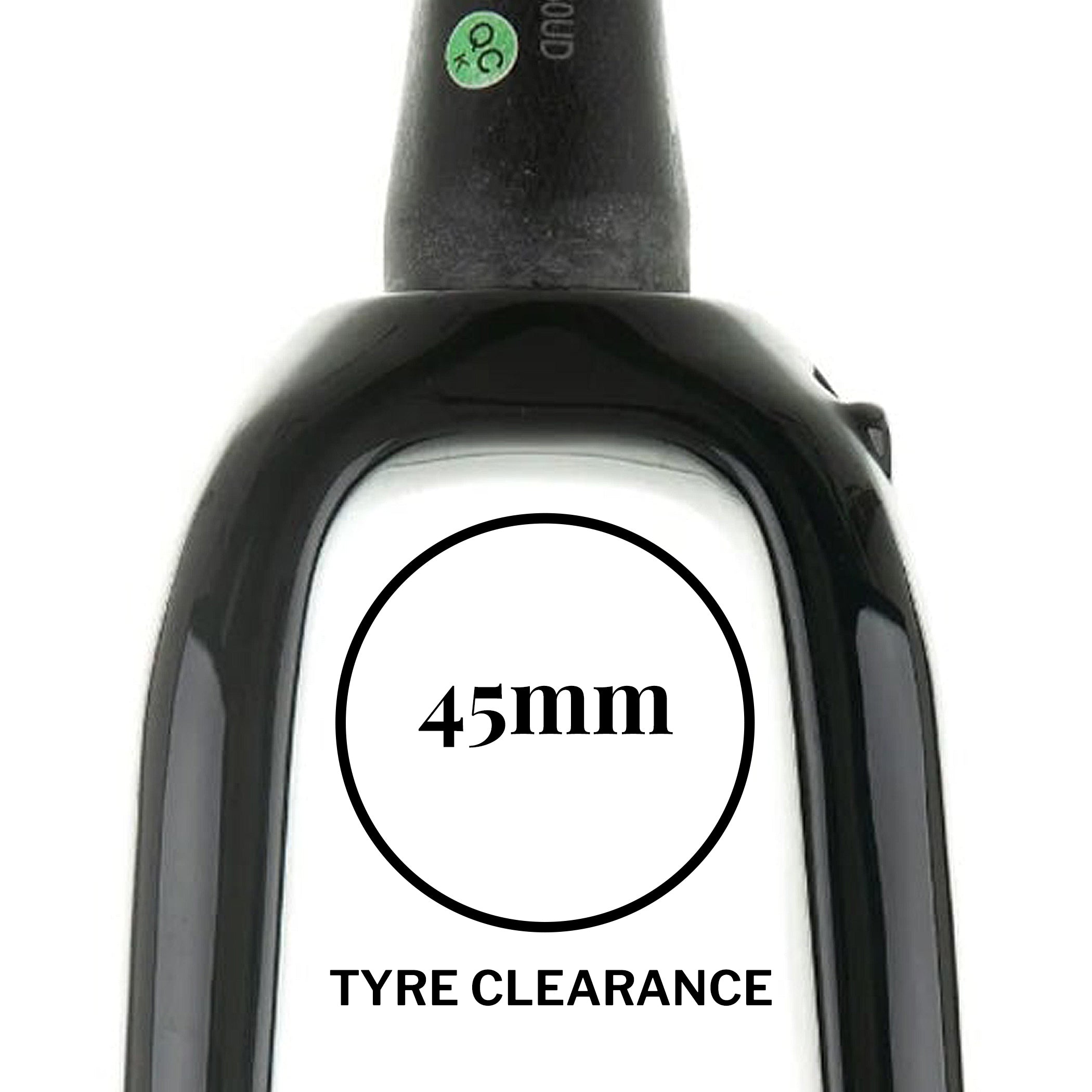

Max Tyre Width: 700c x 45mm or 650b x 50mm

Additional Info

Loading image:

A Selection of Cargo Mounts

Learn more
Loading image:

Internal Cable Routing

Learn more
