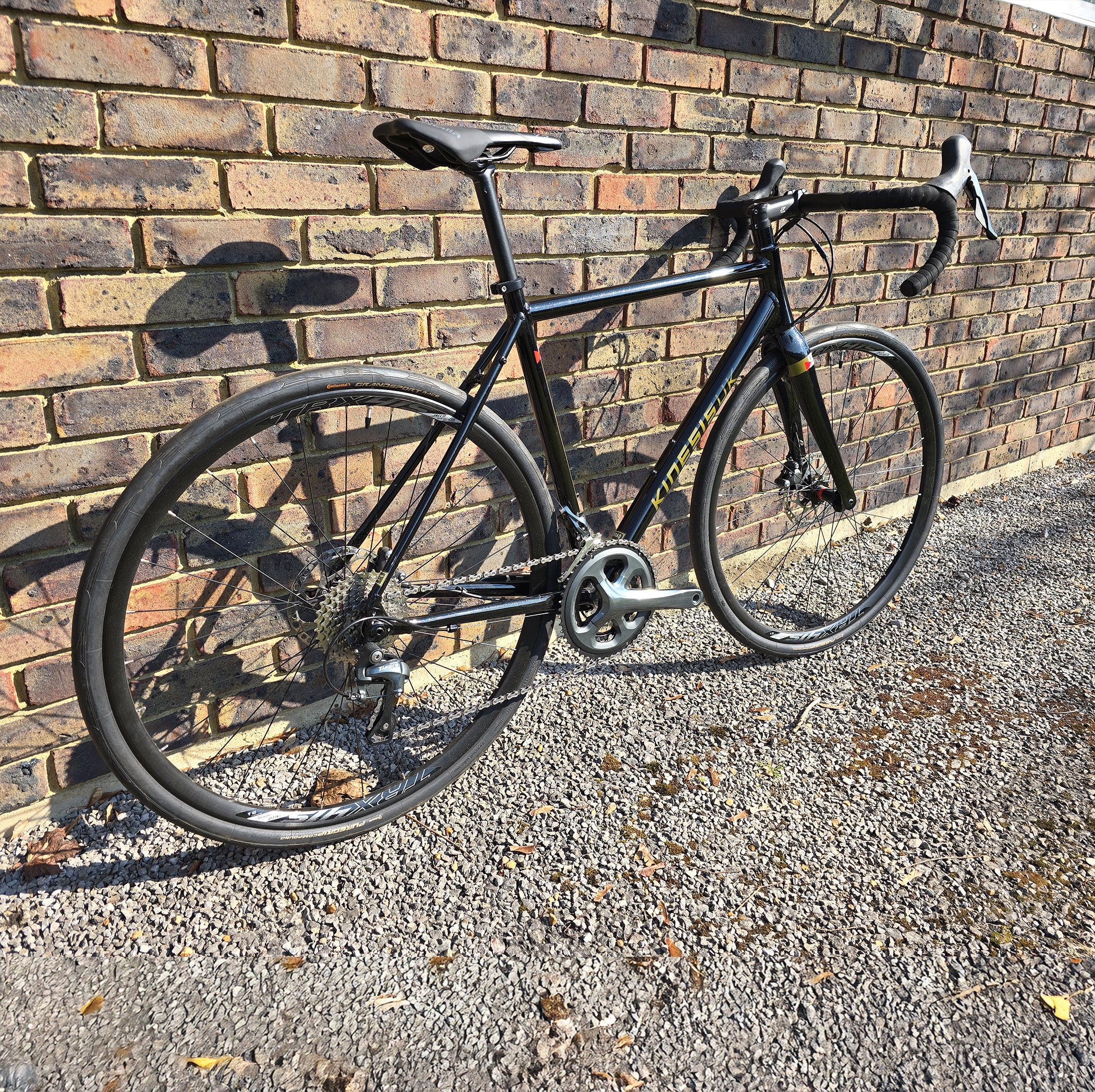

Kinesis R2 Black Gold 54cm Ex-Demo Bike

Sale price £1,050.00 GBP

Shipping calculated at checkout

SKU: K-BIKE-R2-BG-54
Colour: Black
Size
Size guide

Only 1 in stock

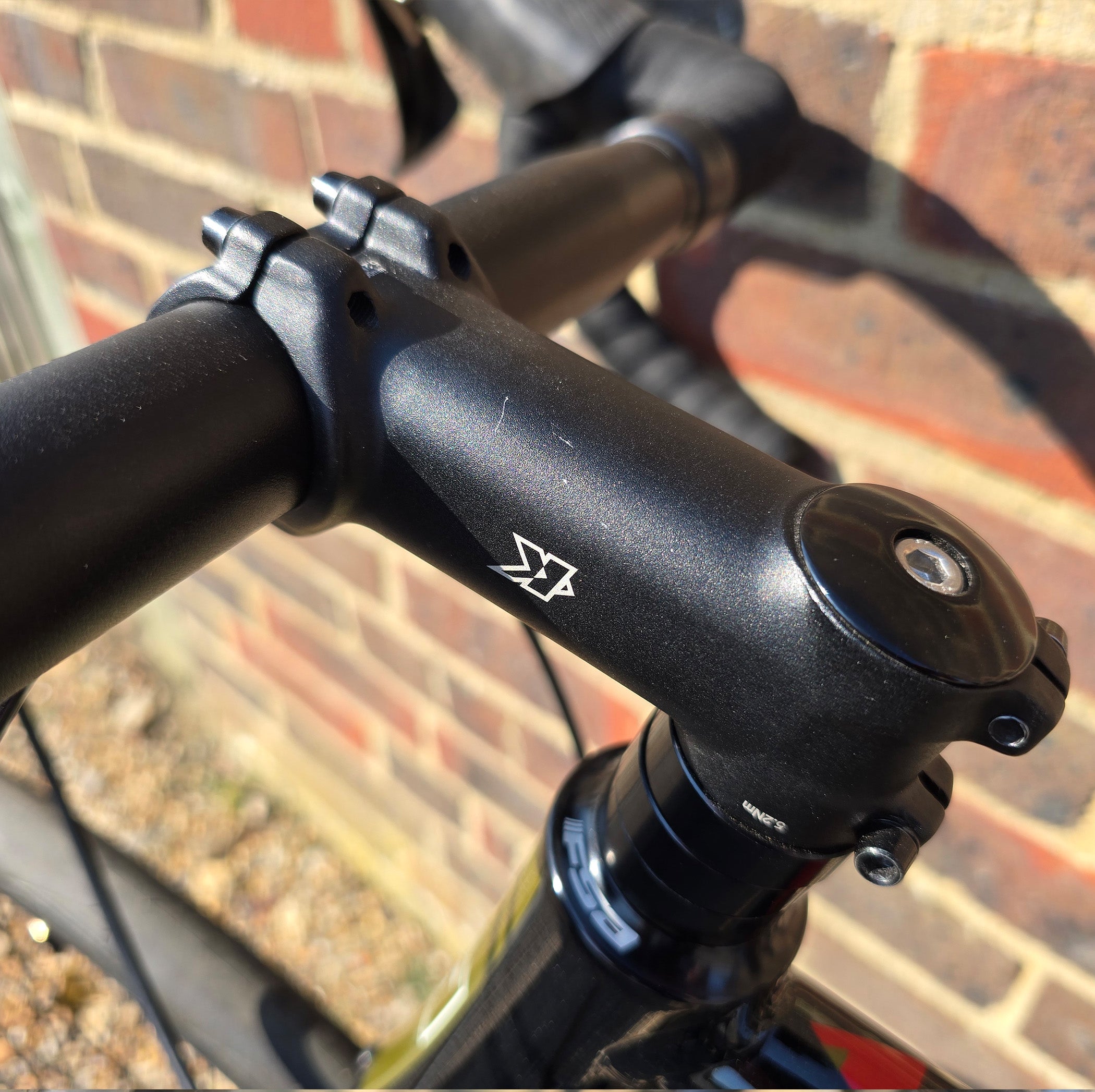

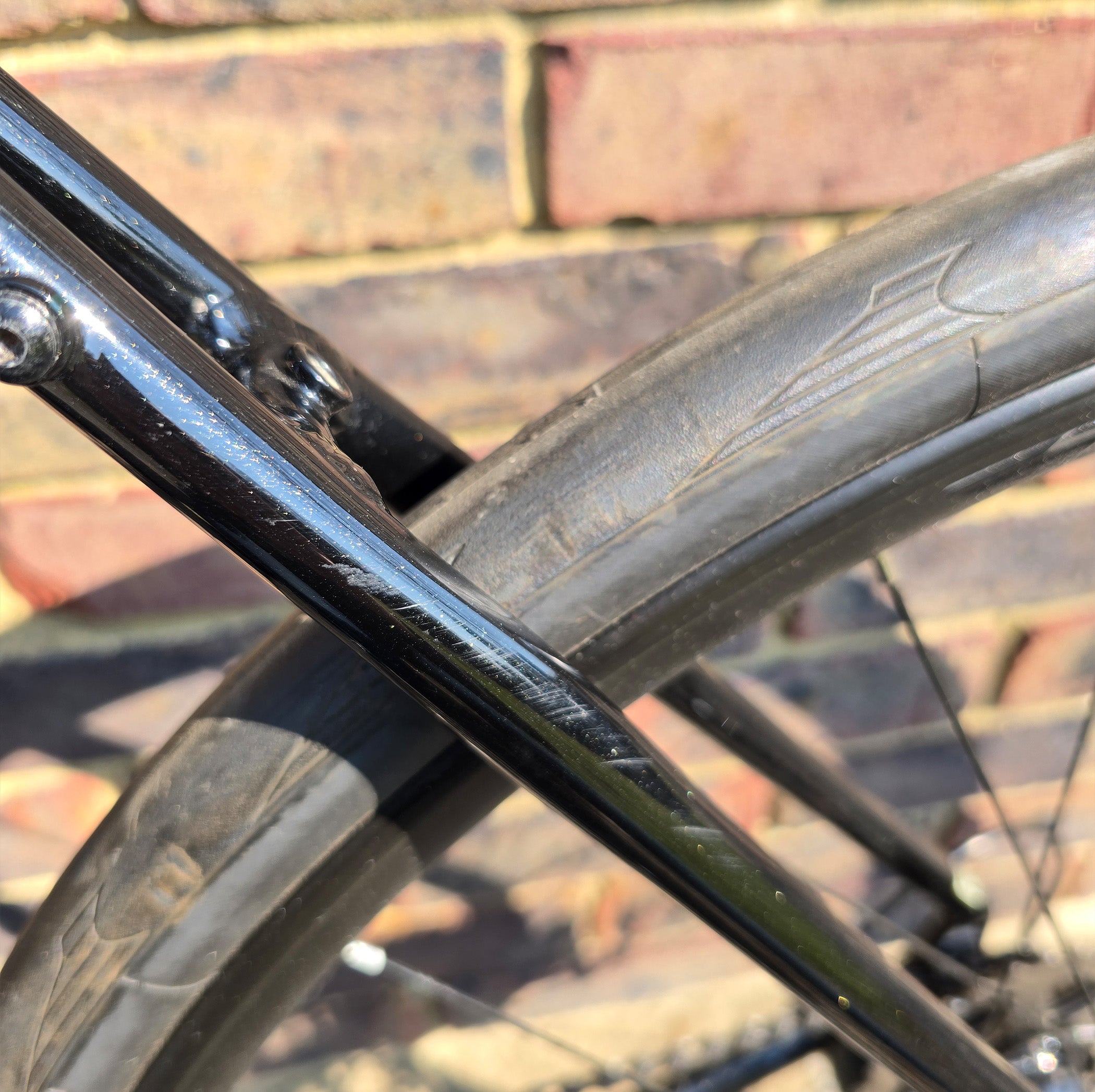

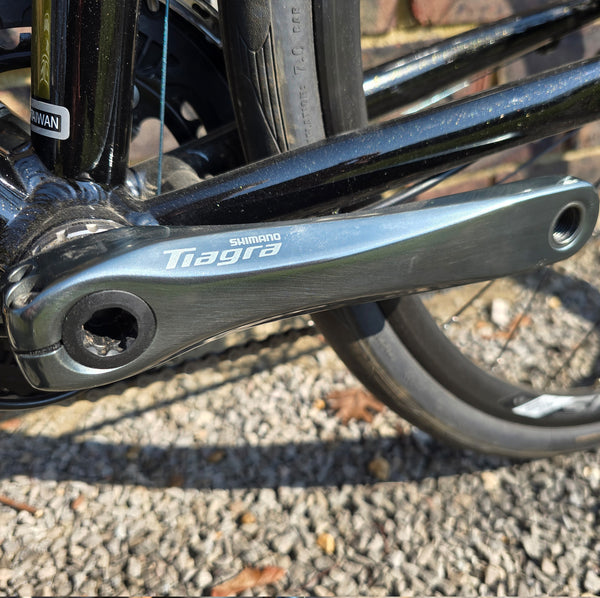

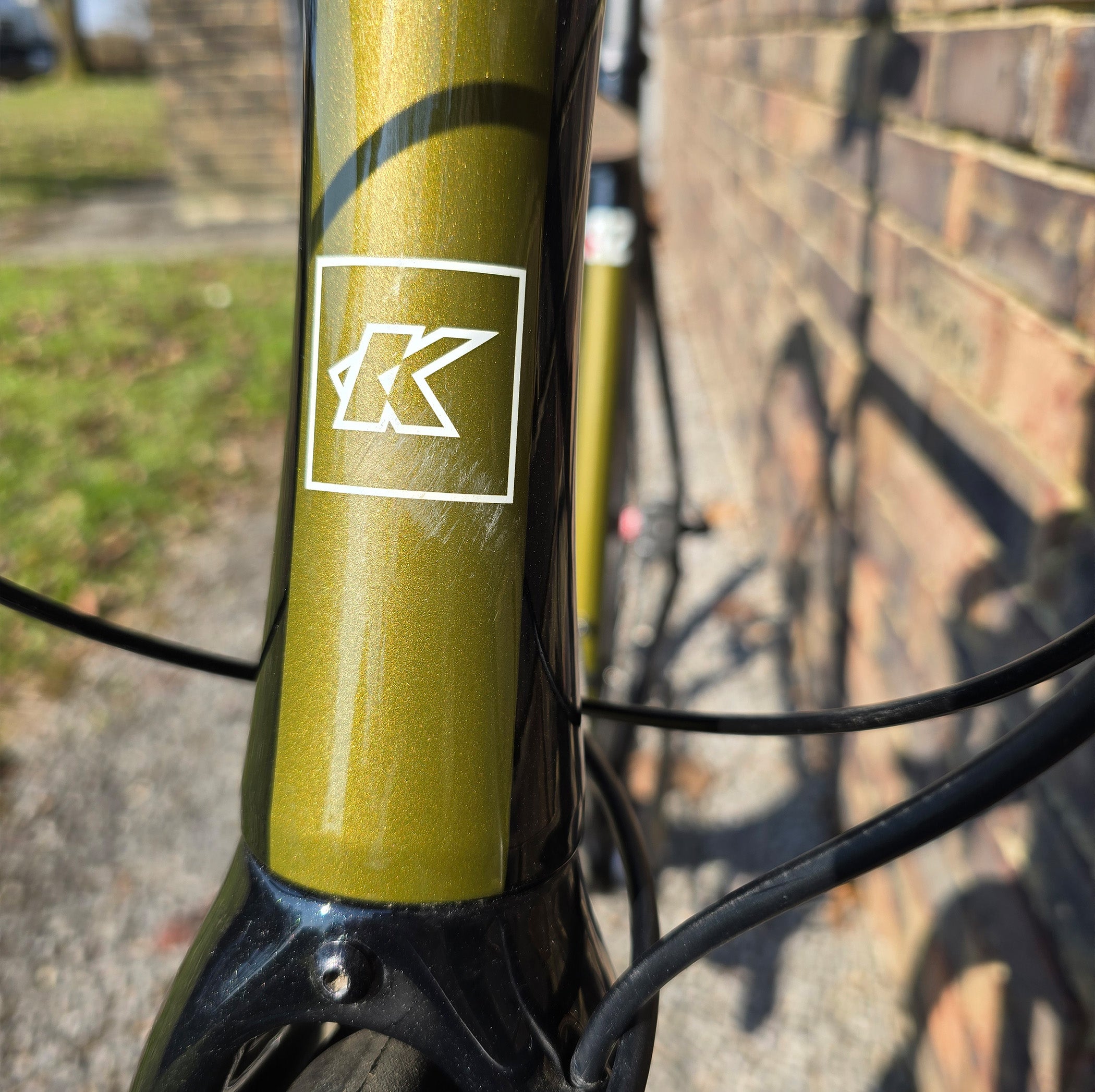

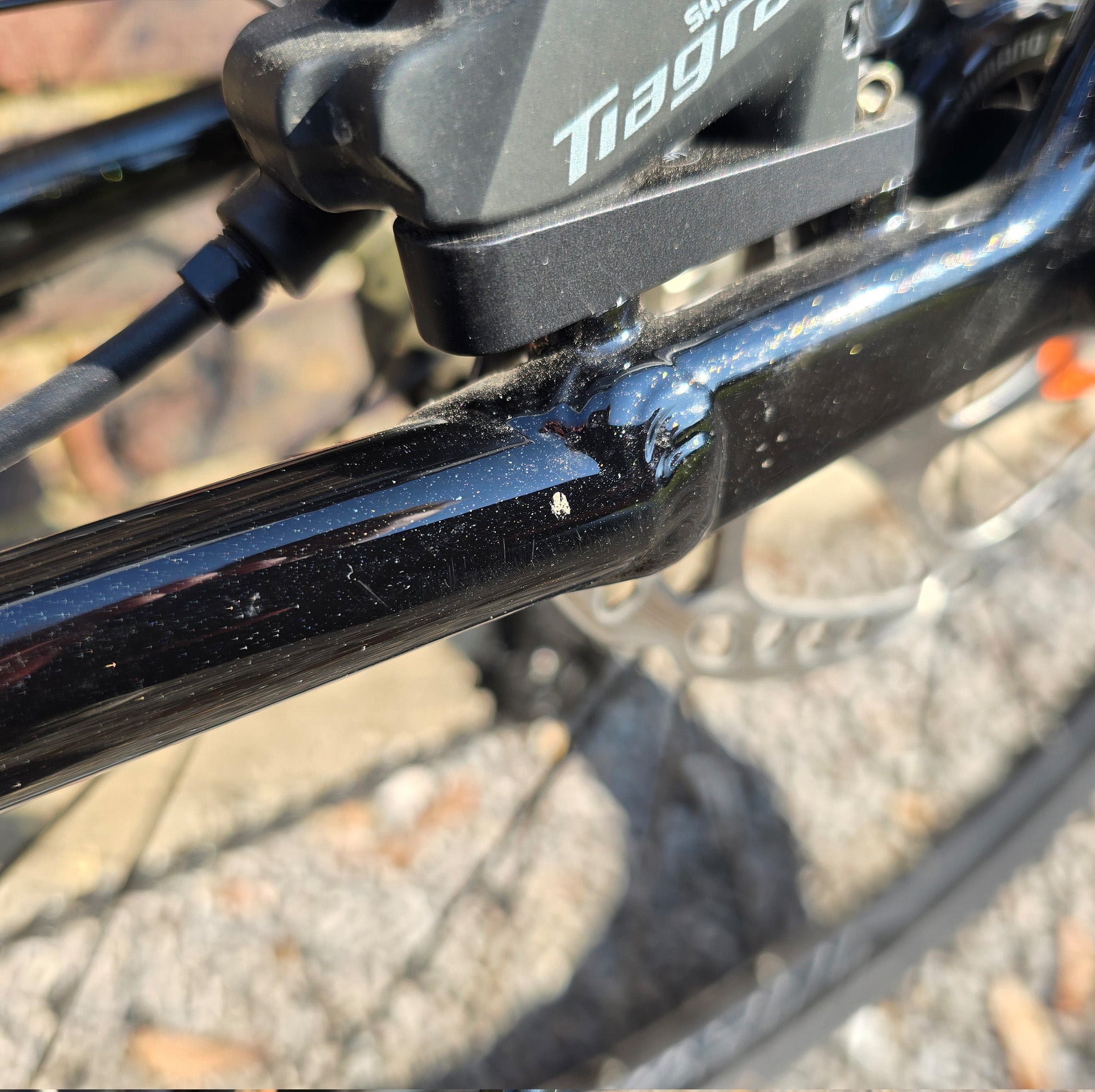

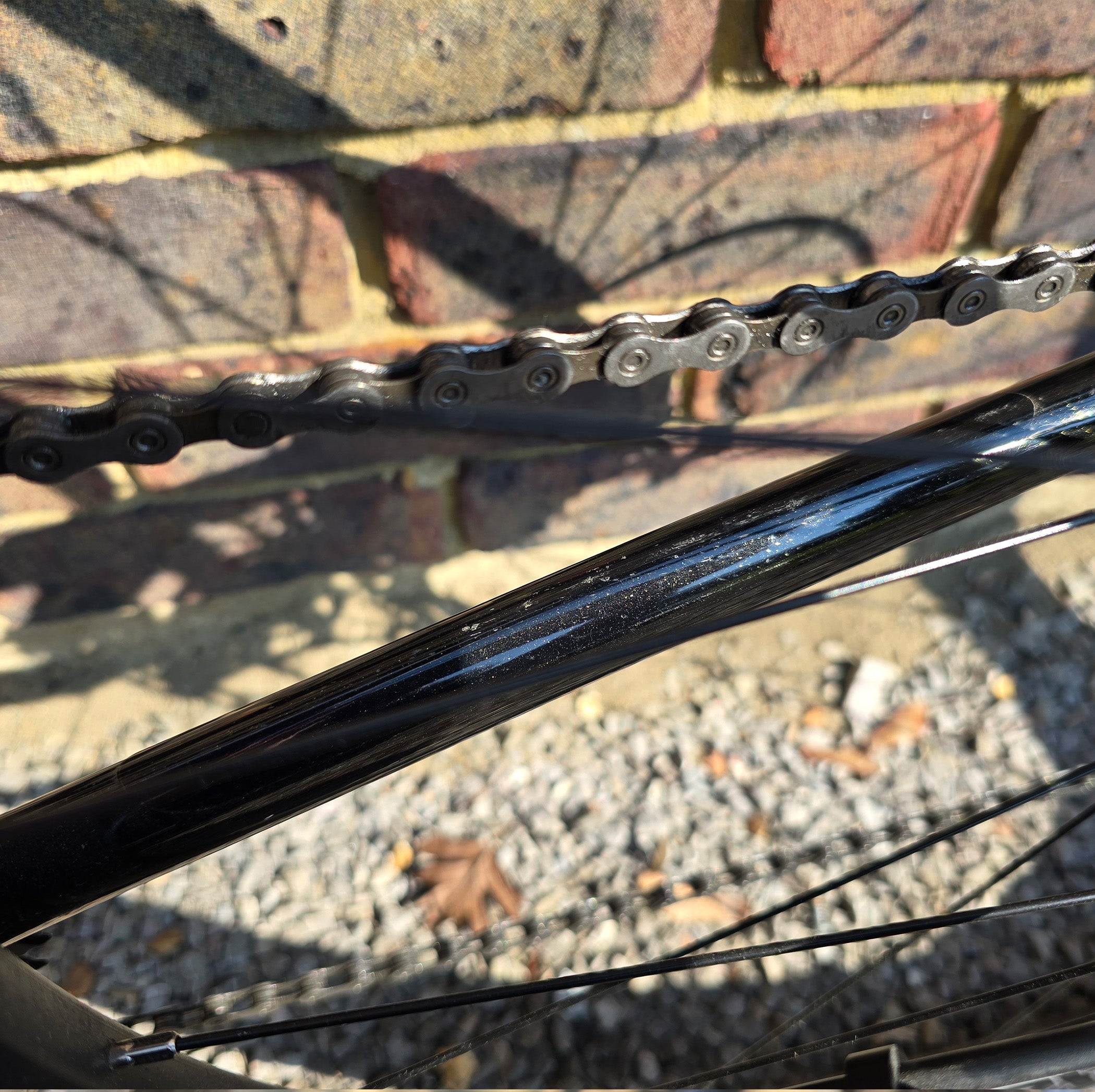

This bike was loaned out for a demo once, so has done very few miles. The tyres and drivetrain show small signs of usage including scuffs on the cranks, but otherwise look in good condition. There is a large scuff on the headtube. There are also small scratches along the top tube and non driveside seatstay. There are small chips on both chainstays. There are some small scratches on the stem.

This ex-demo bike is sold will full 5 years warranty on the frame only. There is no warranty for any components or paint/finish.

Features

Frame: Lightweight double butted 6061 Alloy tube blend that delivers a light and responsive ride feel.
Fork: Custom full 'UD carbon' fork keeps weight low and takes out road buzz whilst feeling direct and accurate at all times.
Groupset: Full Tiagra 4700 20-speed groupset.
Brakes: Hydraulic Shimano Tiagra disc brakes are brilliantly reliable and handle the stopping duties with minimum effort.
Tyres: Continental’s Grand Sport Race in 32c, hitting the sweet spot for grip, cornering and low rolling resistance.

Specification

COLOUR: Black Gold.
FRAME: Kinesis R2 Double Butted Alloy 6061.
FORK: Kinesis R2 Full UD Carbon.
HEADSET: FSA Sealed Bearing No. 42 Integrated Road.

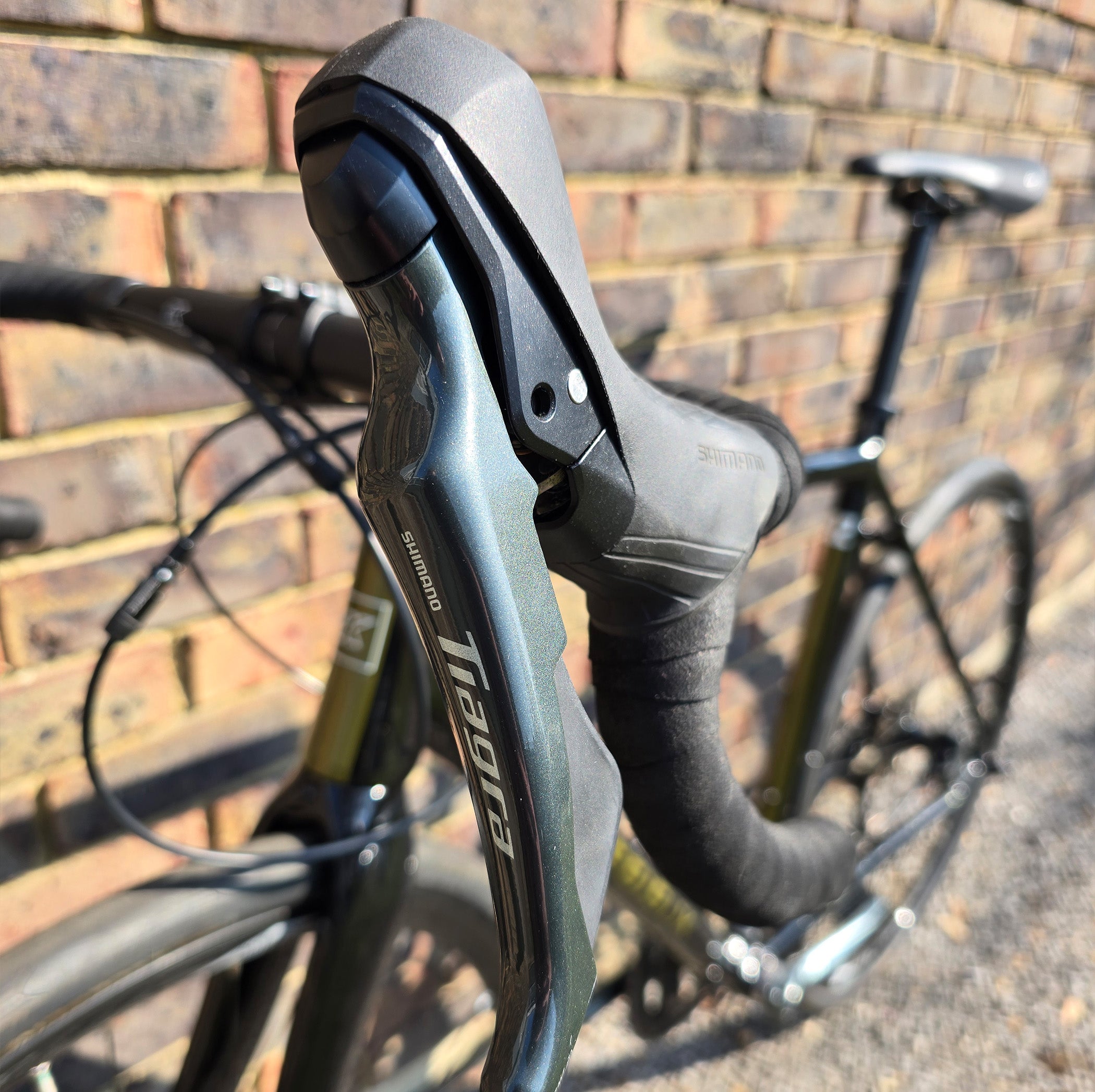

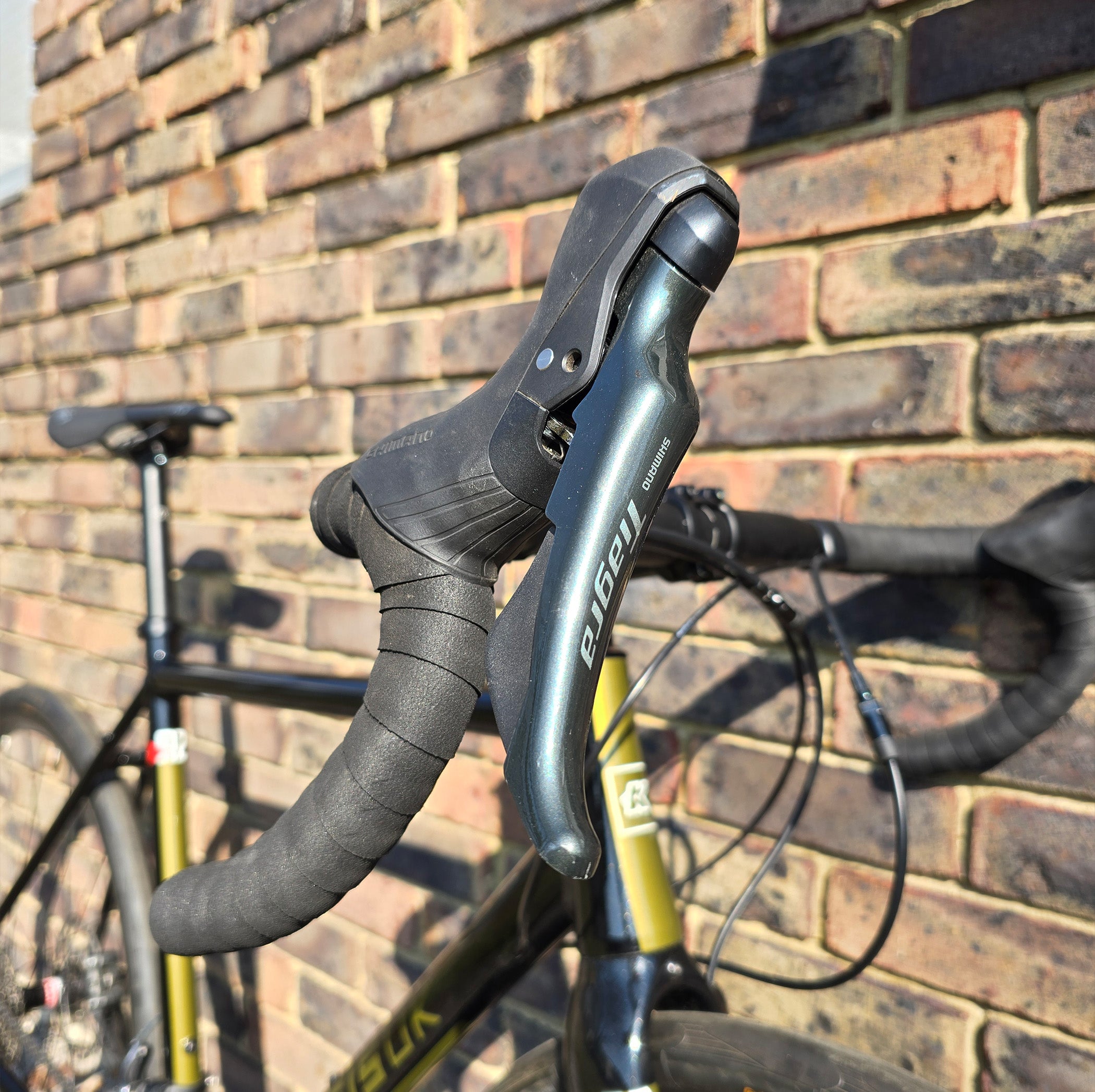

SHIFT LEVERS: Shimano Tiagra ST-4720.

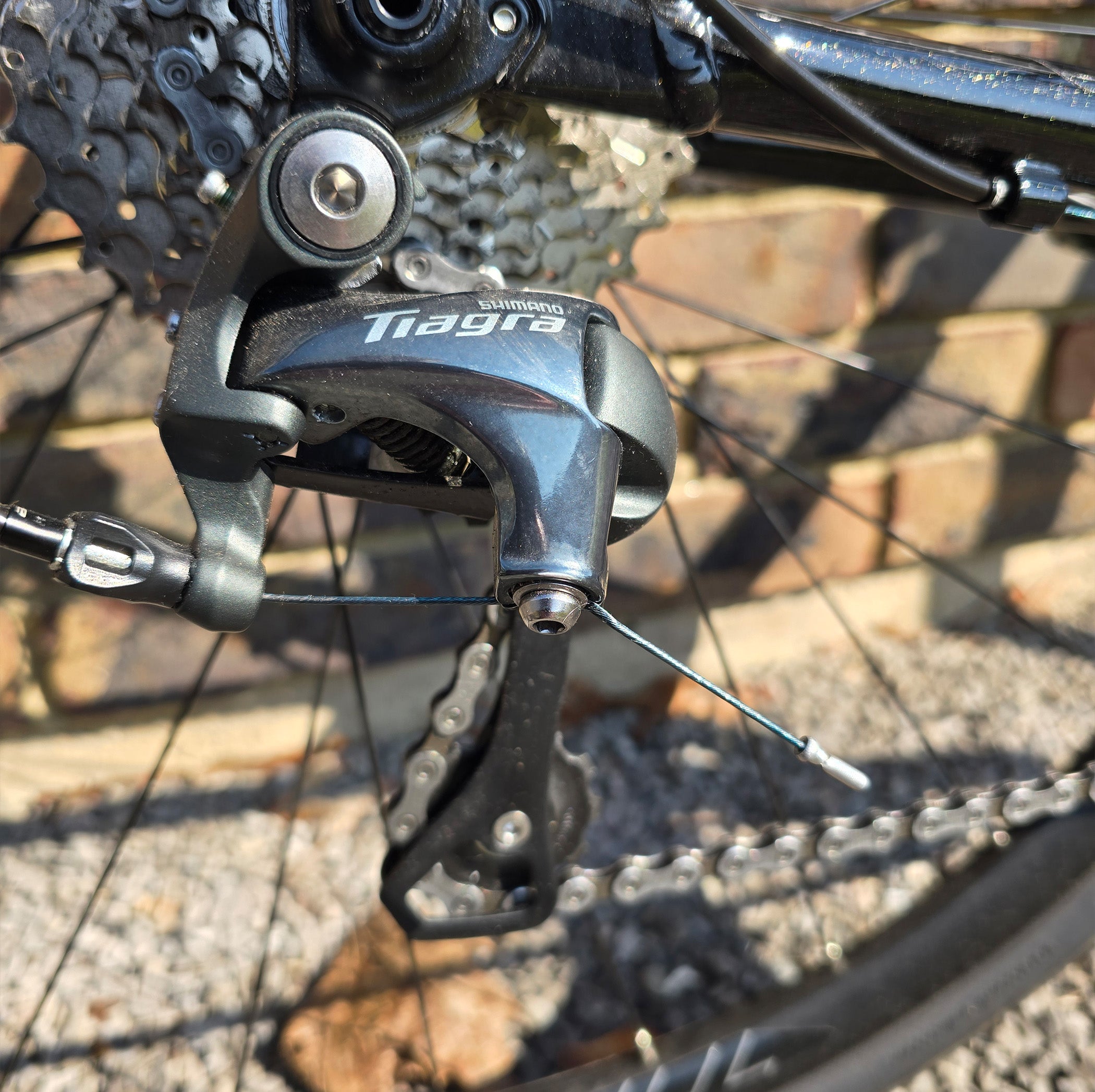

REAR MECH: Shimano Tiagra RD-4700.
FRONT MECH: Shimano Tiagra FD-4700.
CHAIN: Shimano HG-51.
BOTTOM BRACKET: 68mm BSA threaded BB.
BRAKES: Shimano Tiagra BR-4770 Hydraulic.

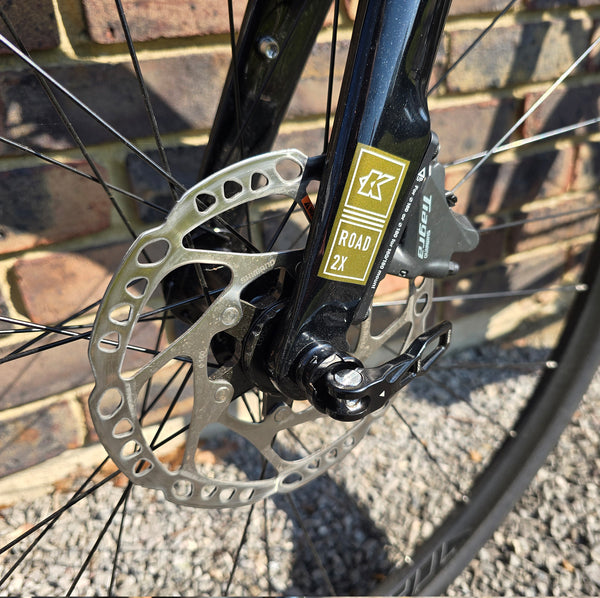

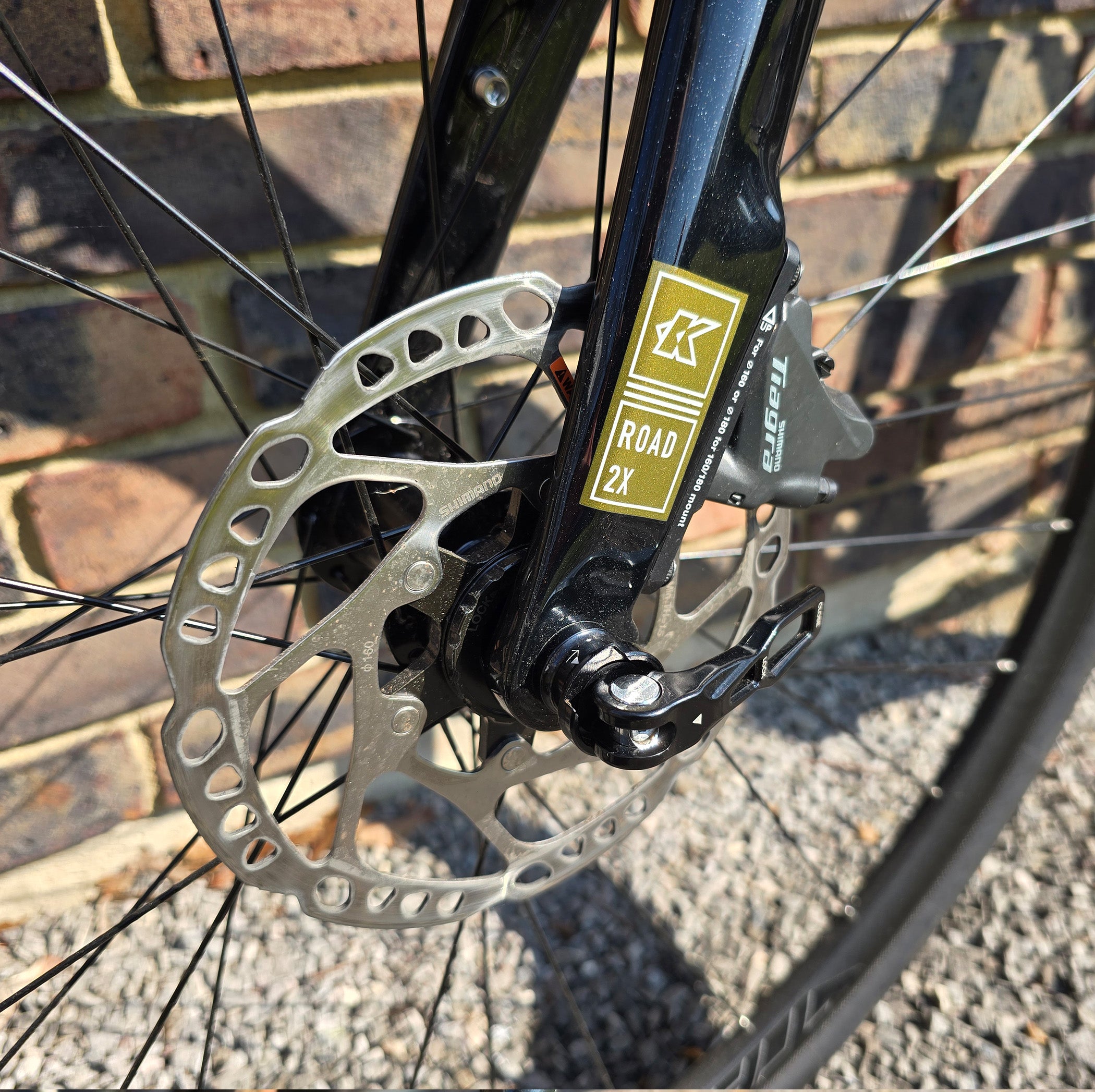

ROTORS: Shimano RT64 160mm.
CASSETTE: Shimano CS-HG500 10 speed 11-34.

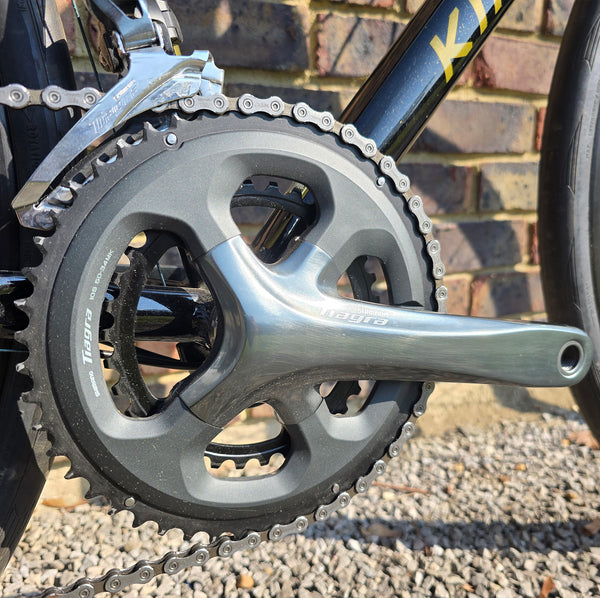

CRANKSET: Shimano Tiagra FC-4700 50/34t. S: 170mm, M & L: 172.5mm, XL: 175mm.
FRONT HUB: Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 100 mm Through Axle.
REAR HUB: Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 142 mm Through Axle.
RIMS: Alex Rims 1.9P Tubeless Compatible.

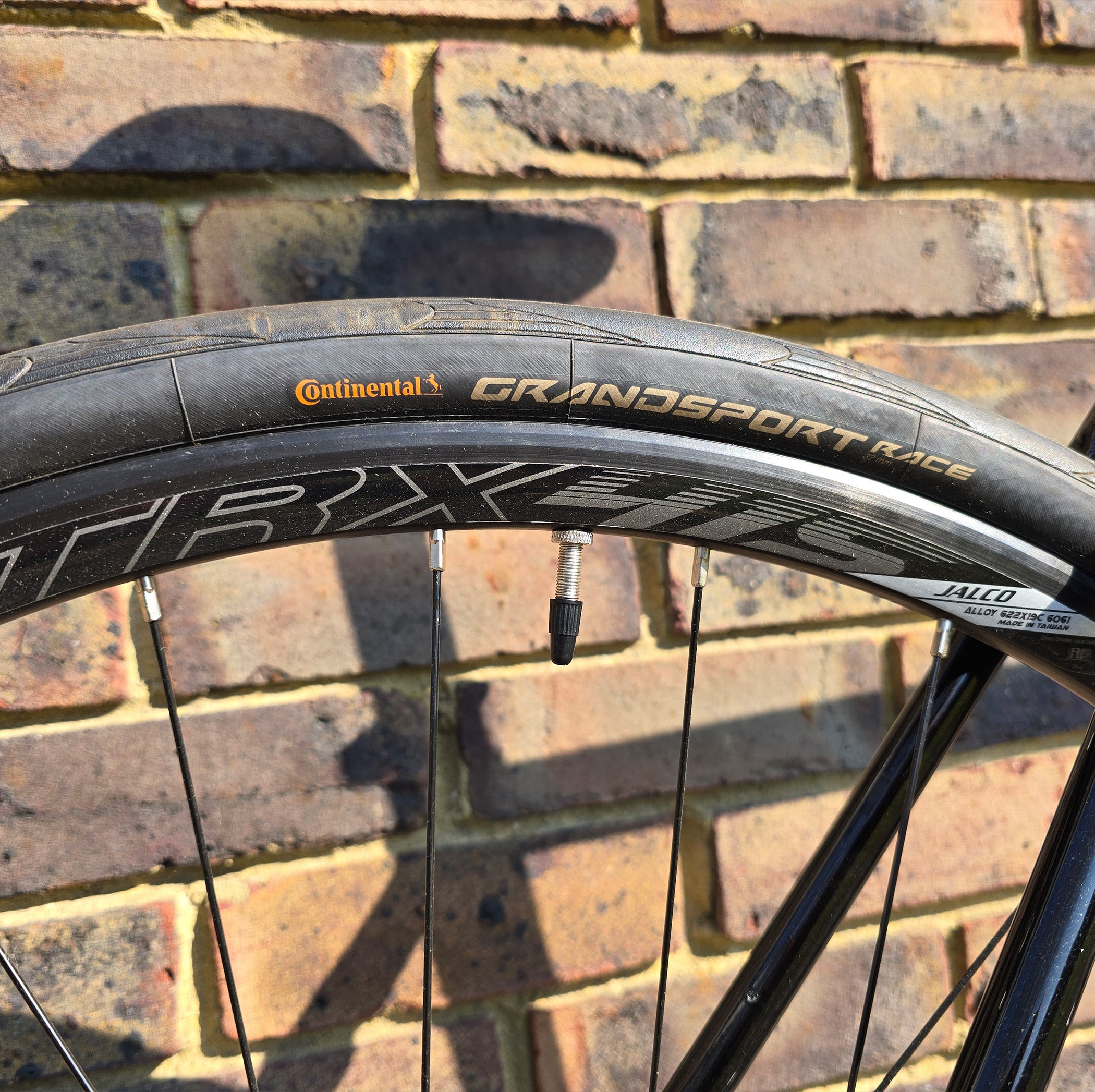

TYRES: Continental Grand Sport Race 32c.
SEATPOST: Kinesis Alloy 6061 27.2 mm x 350 mm.
HANDLEBAR: Kinesis Alloy 6061 S(51):42 cm M(54):44 cm L(57):44 cm XL(60):46 cm.
BAR TAPE: Black Cork Bar Tape.

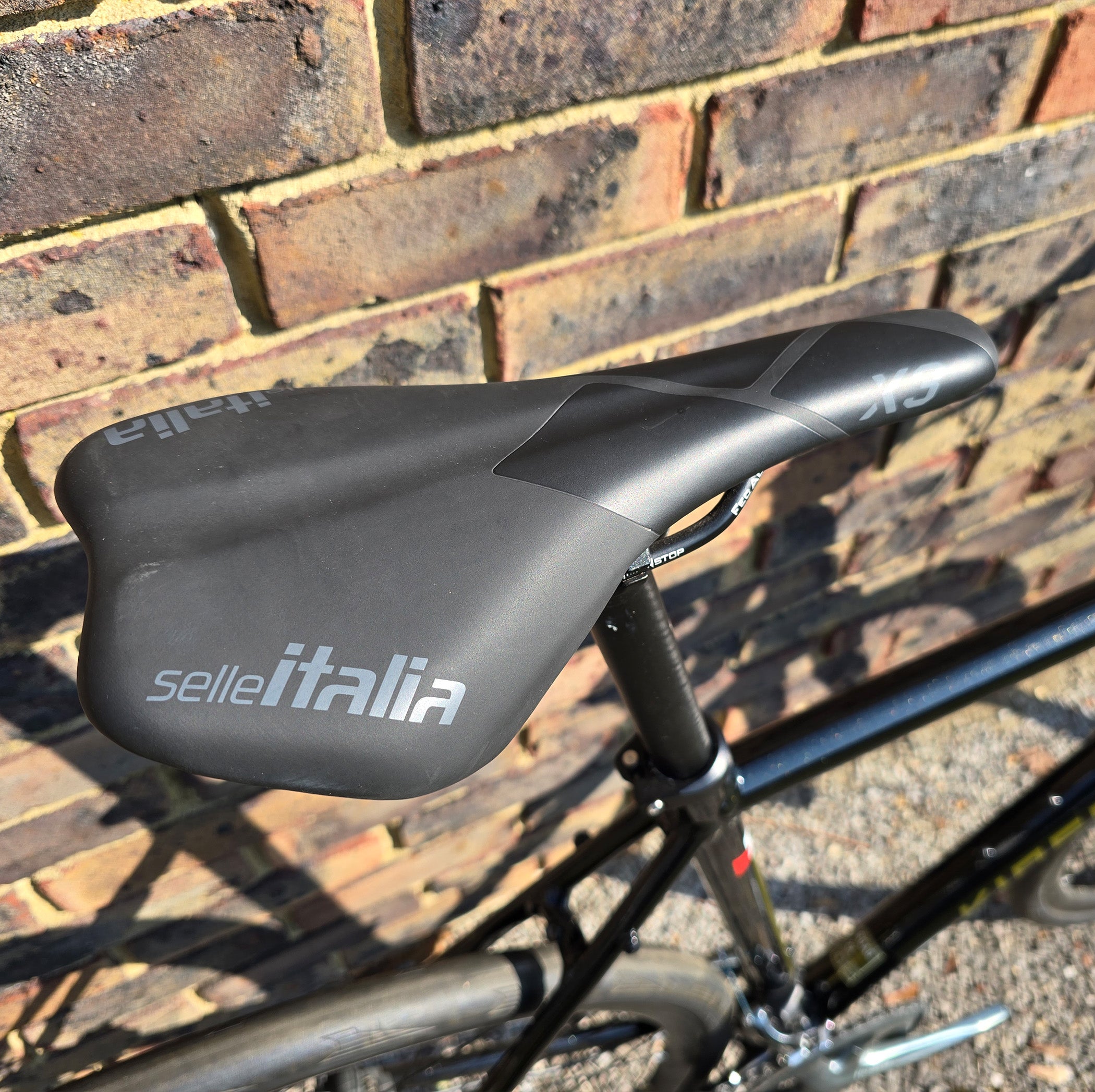

SADDLE: Selle Italia X3 Black.
Bike Weight: 10.1 kg Complete (Size Large 57cm)

Geometry - R2
Frame Size Seat Tube Small (51*) Medium (54) Large (57) XLarge (60)

Seat Tube Length C-T 490 540 570 600
Top Tube Length Effective 532 545 561 580
Head Length 130 146 172 204
Head Tube Angle 71 72 72 72
Seat Tube Angle 74 74 74 74
Bottom Bracket Drop 70 70 70 70
Chain Stay Length 420 420 420 420
Front Centre 590.7 595 611.8 631.8
Wheelbase 1001 1005 1022 1042
Stack 538 557 582 612
Reach 378 385 394 404
Fork Axle to Crown 378 378 378 378
Fork Rake 45 45 45 45

*Semi-Sloping

Additional Info

If ordered online, the R2 bike will be delivered 95% built.
• The rotor will need fitting to front wheel (rotor is boxed between the front wheel and frame, and the lockring is in the spares/manuals box).
• The front wheel needs fitting.
• You’ll need to align the front brake.
• Handlebars need fitting to the stem (the stem comes fitted with a positive rise, and all 3x10mm spacers under the stem).
• Seatpost needs fitting (saddle attached to post).
• The pedal washers are tied to the crank arms.
• The Kinesis R2 bike has been checked prior to packing, however before your first ride the bike must have a PDI (Pre Delivery Inspection) by an authorised Kinesis Dealer.

Also the R2 bike comes with some spares and manuals in a separate box, in the bike box:
• Front rotor lockring (as mentioned above).
• Wheel reflectors.
• Frame reflectors.
• Quick Release axle manuals.
• SRAM rotor manual.
