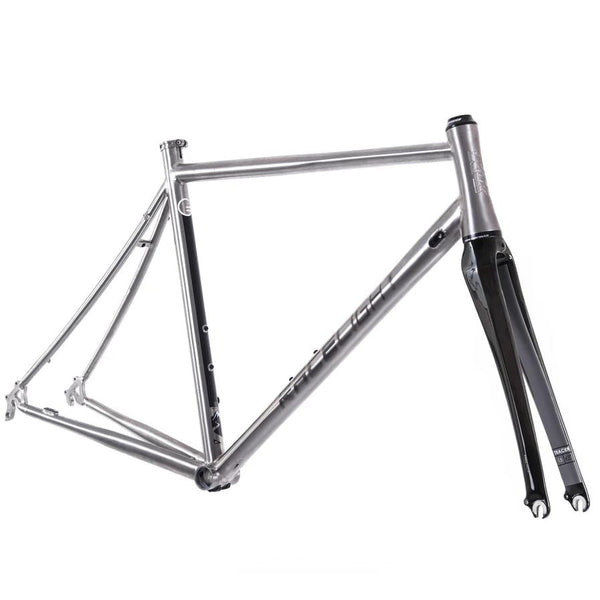

Kinesis - Frame - Racelight Granfondo V2 Frameset - Titanium - Discontinued

Regular price $1,920.00

Tax included

Shipping calculated at checkout

Colour: Titanium

The Granfondo Ti is a super-versatile, all year titanium mile eater.

Features

AEROgrade brushed Ti3AL/2.5V frame

Tapered milled head tube with matching full carbon fork.

Integrated Mudguard and Rack mounts

Fantastic tyre clearance for wide tyres and mudguards

• Totally new taper head tube. Machined from billet and engraved with ‘Kinesis UK’ icon.
• Now with clearance for 28c [depending on brand] when using full size ‘guards [refer to FAQ's 16]. Geometry is set for long-reach [47-57mm] calipers, this gives far more clearance for larger tyres.
• New ‘Tracer 1.5′ Taper 1.5, 450g, monocoque carbon fork with eyelets and clearance for full-size ‘guards and long-drop calipers.
• Tough 7mm dropouts are double-eyeletted to easily accomodate rack and mudguard stays and our own brake bridge gives maximum tyre clearance.
• Top tube is re-profiled with horizontal ovalisation, giving greater lateral stiffness when out of the saddle, complimenting the new fork and headtube.
• Down tube is Bi-ovalised where it meets the BB and Headtube.
• Increased BB drop for stability at speed, precision cornering and better fit.
• Welds at highly stressed area’s like the head tube and BB are ‘double pass’, ensuring proper penetration and a decent fillet on the second pass.
• Seat stays are curved with a 2m radius, providing silky smooth comfort over long distances. Chain stays are deep section and set wide at the BB for stability, we use ‘Bullet’ ends to finish them off perfectly.
• All eyelets are welded, not riveted, so they will never come loose. There is a ‘chain keeper’ on the RHS seat stay to neatly hold the chain when the wheel is out.
• All stops, including down tube adjusters are slotted, making cable servicing much easier, adjusters are high qual. anodised alloy. Hand brushed finish with heat cured decals.

Specification

  • Tapered milled head tube with integrated tapered headset
  • 31.6mm seatpost fitting
  • 34.9mm seat clamp (Ti and Ti bolt included )
  • Clearance for 30mm tyres
  • Long drop 47mm - 57mm
  • Sizes: 48cm- 51cm – 54cm – 55.5cm - 57cm – 60cm
