Range Gravel Evation MD Ex-Display

Sale price £1,250.00 GBP

Shipping calculated at checkout

SKU: K-BIKE-RANGE-GR-4M
Colour: Blue

Out of stock

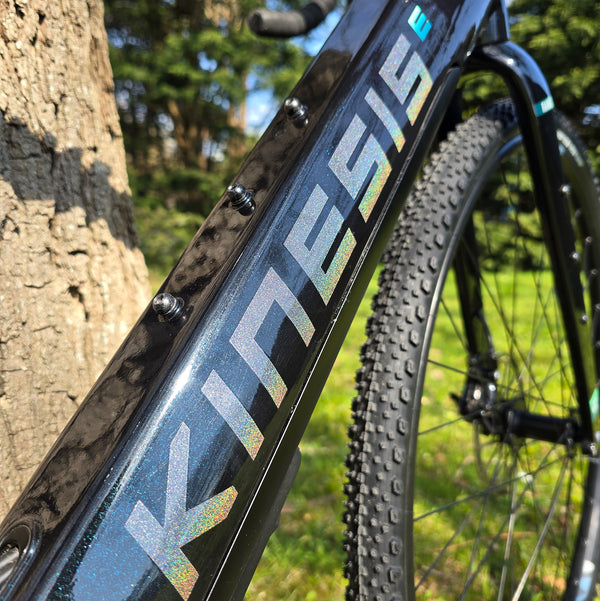

This bike is ex-display and has been ridden for 1518km. It has had a new bottom bracket unit, Narrow-Wide chainring, and Goodyear Peak tyres fitted. There are some marks on the shifters/brake levers. There are some scratches on the downtube, and some small paint chips on the headtube. Please see photos. There is not much wear on the cassette or brakes.

The RANGE electric bike features a premium aluminium frameset based on our award-winning adventure platform. We’ve paired this with the excellent Fazua Evation Motor, known for its smooth, natural power delivery and lightweight performance.
When tackling inclines or accelerating from a standstill, the Fazua motor kicks in to provide up to 250W of assistance right when you need it most. Above the legal 15.5mph limit, the Fazua motor disengages from your bike and becomes unnoticeable, so you can focus on enjoying the ride without resistance. The battery is lightweight and easy to remove, so you can easily extend your range, and only ever carry as much battery as you need. Now with Black Pepper Software Update.

RANGE features high-performance components from the likes of Ritchey, Sector, WTB and SRAM for flawless performance over multiple terrain. The 1x drivetrain, hydraulic brakes, 45C tubeless-ready tyres, and flared bars are all the right ingredients to ensure RANGE is the perfect match to your sense of adventure.

The RANGE drop bar e-bike is not just for new or less fit cyclists, and it does not eliminate the satisfaction of having a good workout on the bike. Instead, it enhances the experience of cycling, enabling you to ride further, faster, or more frequently than you could before. Imagine having a strong leg day, everyday! No matter your fitness, RANGE will maximise your enjoyment from each and every ride.

WARNING: The maximum total weight allowed (rider, clothing, protective gear, backpack, luggage etc.) is 120kg.

This ex-demo ebike is sold with 3 years warranty on the frame only. There is no warranty for any components or paint/finish. There is no warranty on any of the electrical components.

Features

• Aluminium Frame with 50C Tyre Clearance.
• Galactic Iridescent Paint Job.
• Full Carbon RANGE Fork with Luggage Mounting Points.
• Fazua Evation Drive System with Top Tube Remote. Now with Black Pepper Software Update.
• Removable 252Wh Battery.
• Rack and Mudguard Compatible.
• SRAM Apex 1x Drivetrain.
• Goodyear Peak 700c x40mm Tubeless Complete tyres.
• Weight: 15kg (Medium).

Specification

Colour: Galactic
Weight: 15kg (Medium)
Frame: Kinesis RANGE lightweight 6061 Hydroformed Aluminium Frame
Fork: Kinesis Range Carbon Fork
Shift Levers: SRAM Apex 1x11
Rear Derailleur: SRAM Rival
Brakes: SRAM Apex - 160mm Front and Rear
Cassette: SRAM PG1130 11-42
Crankset: Praxis Alloy E-Crank 42t 170mm
Rims: Sector GCe E-Specific 32h Aluminium Rim. Eyeletted and Pinned
Hubs: Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Spokes: 14g Black
Tyres: Goodyear Peak 700c x40mm Tubeless Complete
Seatpost: Ritchey 2-Bolt 350mm x 31.6 diameter / 25mm offset
Saddle: Selle Italia X3
Handlebar: Kinesis Double Butted Gravel Bar 46cm
Stem: Kinesis 3D Forged 6061 90mm
Headset: FSA no.42 Cartridge Bearing
Bar Tape: Kinesis Black Cork Tape

Geometry - Range Gravel

Kinesis Range Size SMALL MEDIUM LARGE X-LARGE

Seat Tube Length C-T (mm) 440 490 540 570
Top Tube Length Effective (mm) 534 551 574 595
Head Tube Length (mm) 131 157 185 224
Head Tube Angle (°) 70.5 70.5 71 71
Seat Tube Angle (°) 74 74 73.5 73.5
BB Drop (mm) 75 75 72 70
Chainstay Length (mm) 440 440 440 440
Front Centre (mm) 602.7 621 635 657.9
Wheelbase (mm) 1032 1050 1065 1089
Stack (mm) 555 580 605 640
Reach (mm) 375 385 395 405
Fork Length (mm) 395 395 395 395
Fork Rake (mm) 50 50 50 50
Trail (Actual) (mm) 74 74 71 71
Standover A* (mm) 708 745 . 834
Standover B* (mm) 756 780 . 862
Handlebar Width (mm) 420 440 460 460
Stem Length (mm) 80 80 90 90
Crank Length (mm) 165 165 170 170
Seatpost Length (mm) (350 x 31.6 / 25 offset) 350 350 350 350
Seatpost Clamp (mm) 34.9 34.9 34.9 34.9
*Standover A is measured from the floor through the bottom bracket to the top of the top tube
*Standover B is measured from the floor through the centre of the top tube to the top of the top tube

Additional Info

The Range Gravel bike will be delivered 95% built.
• The front wheel needs fitting (rotor attached).
• You might need to align the front brake caliper.
• The handlebars need fitting to the stem (the stem comes fitted with a negative rise, and 2x10mm spacers under and 1x10mm spacer above the stem).
• The seatpost needs fitting (saddle attached to post).
