Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike
Kinesis Range Gravel Large with New Switch Style - ex Display Bike

Kinesis UK

Kinesis Range Gravel Large with New Switch Style - ex Display Bike

Sale price £1,400.00 GBP

Shipping calculated at checkout

SKU: K-BIKE-RANGE-GR-5L
Colour: Galactic

Out of stock

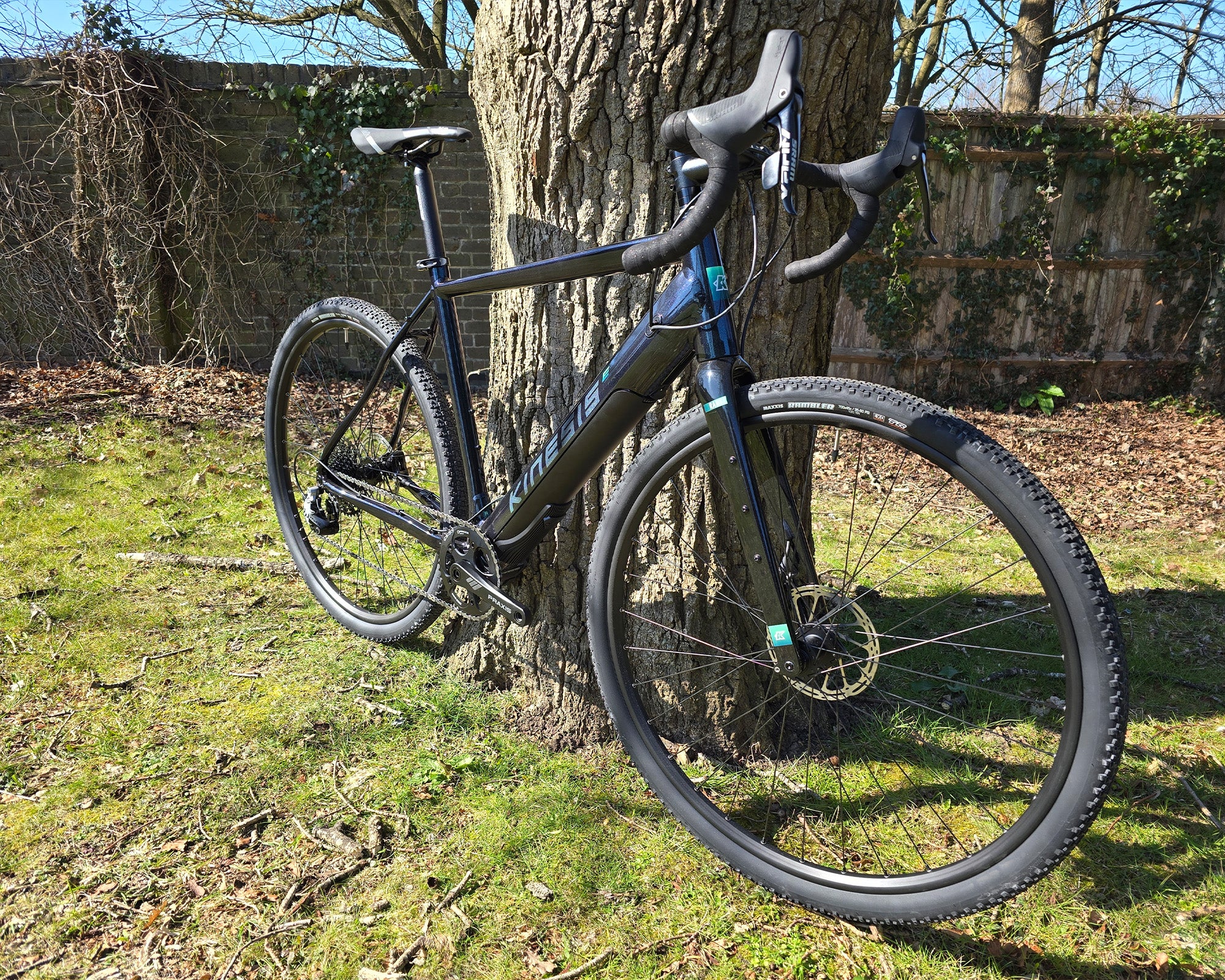

This bike was sold to a customer then returned. It has been ridden only 2km. This bike is in great condition. There is almost no wear on the drivetrain, brakes or tyres. Please see photos for full details. It has the older Evation style drive pack, but has the new style switch fitted to the handlebar.

This ex-demo ebike is sold with 3 years warranty on the frame only. There is no warranty for any components or paint/finish. There is no warranty on any of the electrical components.

Features

• Aluminium Frame with 50C Tyre Clearance.
• Galactic Iridescent Paint Job.
• Full Carbon RANGE Fork with Luggage Mounting Points.
• Fazua Evation Drive System with Top Tube Remote. Now with Black Pepper Software Update.
• Removable 252Wh Battery.
• Rack and Mudguard Compatible.
• SRAM Apex 1x Drivetrain.
• Maxxis Rambler 45C Tyres.
• Weight: 15kg (Medium).

Specification

Colour: Galactic
Weight: 15kg (Medium)
Frame: Kinesis RANGE lightweight 6061 Hydroformed Aluminium Frame
Fork: Kinesis Range Carbon Fork
Shift Levers: SRAM Apex 1x11
Rear Derailleur: SRAM Rival
Brakes: SRAM Apex - 160mm Front and Rear
Cassette: SRAM PG1130 11-42
Crankset: Praxis Alloy E-Crank 42t 170mm
Rims: Sector GCe E-Specific 32h Aluminium Rim. Eyeletted and Pinned
Hubs: Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub
Spokes: 14g Black
Tyres: Maxxis Rambler 700x45c TR EXO 120tpi
Seatpost: Ritchey 2-Bolt 350mm x 31.6 diameter / 25mm offset
Saddle: Selle Italia X3
Handlebar: Kinesis Double Butted Gravel Bar 46cm
Stem: Kinesis 3D Forged 6061 90mm
Headset: FSA no.42 Cartridge Bearing
Bar Tape: Kinesis Black Cork Tape

Geometry - Range Gravel
Kinesis Range Size SMALL MEDIUM LARGE X-LARGE

Seat Tube Length C-T (mm) 440 490 540 570
Top Tube Length Effective (mm) 534 551 574 595
Head Tube Length (mm) 131 157 185 224
Head Tube Angle (°) 70.5 70.5 71 71
Seat Tube Angle (°) 74 74 73.5 73.5
BB Drop (mm) 75 75 72 70
Chainstay Length (mm) 440 440 440 440
Front Centre (mm) 602.7 621 635 657.9
Wheelbase (mm) 1032 1050 1065 1089
Stack (mm) 555 580 605 640
Reach (mm) 375 385 395 405
Fork Length (mm) 395 395 395 395
Fork Rake (mm) 50 50 50 50
Trail (Actual) (mm) 74 74 71 71
Standover A* (mm) 708 745 . 834
Standover B* (mm) 756 780 . 862
Handlebar Width (mm) 420 440 460 460
Stem Length (mm) 80 80 90 90
Crank Length (mm) 165 165 170 170
Seatpost Length (mm) (350 x 31.6 / 25 offset) 350 350 350 350
Seatpost Clamp (mm) 34.9 34.9 34.9 34.9
*Standover A is measured from the floor through the bottom bracket to the top of the top tube
*Standover B is measured from the floor through the centre of the top tube to the top of the top tube

Additional Info

The Range Gravel bike will be delivered 95% built.
• The front wheel needs fitting (rotor attached).
• You might need to align the front brake caliper.
• The handlebars need fitting to the stem (the stem comes fitted with a negative rise, and 2x10mm spacers under and 1x10mm spacer above the stem).
• The seatpost needs fitting (saddle attached to post).
