Race ready Kinesium tubing with Crossbow top tube.
Tapered head tube and custom CXD full carbon post mount eyeletted disc fork.
Internal Di2 and brake cable routing.
Mudguard eyelets, bottle and rack mounts as standard.
Flat mount rear to 160mm with post mount adapter included.

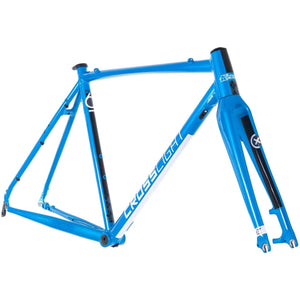

The Kinesis Crosslight Pro6 disc is a race bike first and foremost and uses our race proven geometry, in addition, it has eyelets to allow the fitment of mudguards, a rack and bottles and up to a 38mm tyre allowing longer range use from a day out to a transcontinental epic. It’s not supposed to be a ‘Jack of all trades’, but it is designed to be practical and adaptable as well as FAST.
• Tough yet lightweight Kinesium tubeset with tapered headtube and ‘CXd‘ 500g, full UD carbon monocoque, 1-1/8″>1.5″ taper-steerer disc fork. Fork is eyeletted at dropouts and rear of crown and has a hose clip on rear of LHS blade and features the post mount standard caliper mount.
• ‘Ergo2′ profiled top tube for comfortable carrying, Oversized Kinesium down tube without the bulky mud collecting depth of other frames. The head tube length is relatively short to help with the steep climbs encountered on CX courses.
• Disc mount – Inboard Shimano Flat-mount on frame with post mount adapter included. Rotor size is 160mm, we think this works best for CX with cable brakes and 160 rotors come as standard with most Disc brake set ups.
• Eyeletted seat stays for mudguards and racks, double bottle cage mounts. Inboard caliper is out of the way making rack and guard mounting simple.
• Rear Mech cable Routing is on RHS of top tube, out of the way of your neck when carrying, it’s designed to take a full outer cable from the top tube cable stop [for max mud/water resistance].
*Front mech cable routing features a removable adjustable cable stop with a BB guide for bottom pull cable routing. For 1x set-ups a blanking plate replaces the cable stop , for Di2 a wire port replaces the cable stop.
• 135mm hub spacing.
*New 55.5cm size
• ‘A-Stay’ asymmetric chain stays to cope with the different stresses to the rear triangle of the bike.
• FSA Taper headset included, Kinesis seat clamp, 160mm flat mount to post mount adapter included.
