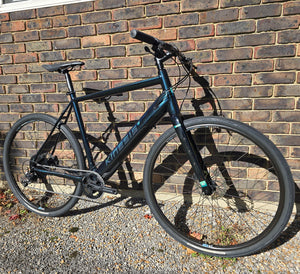

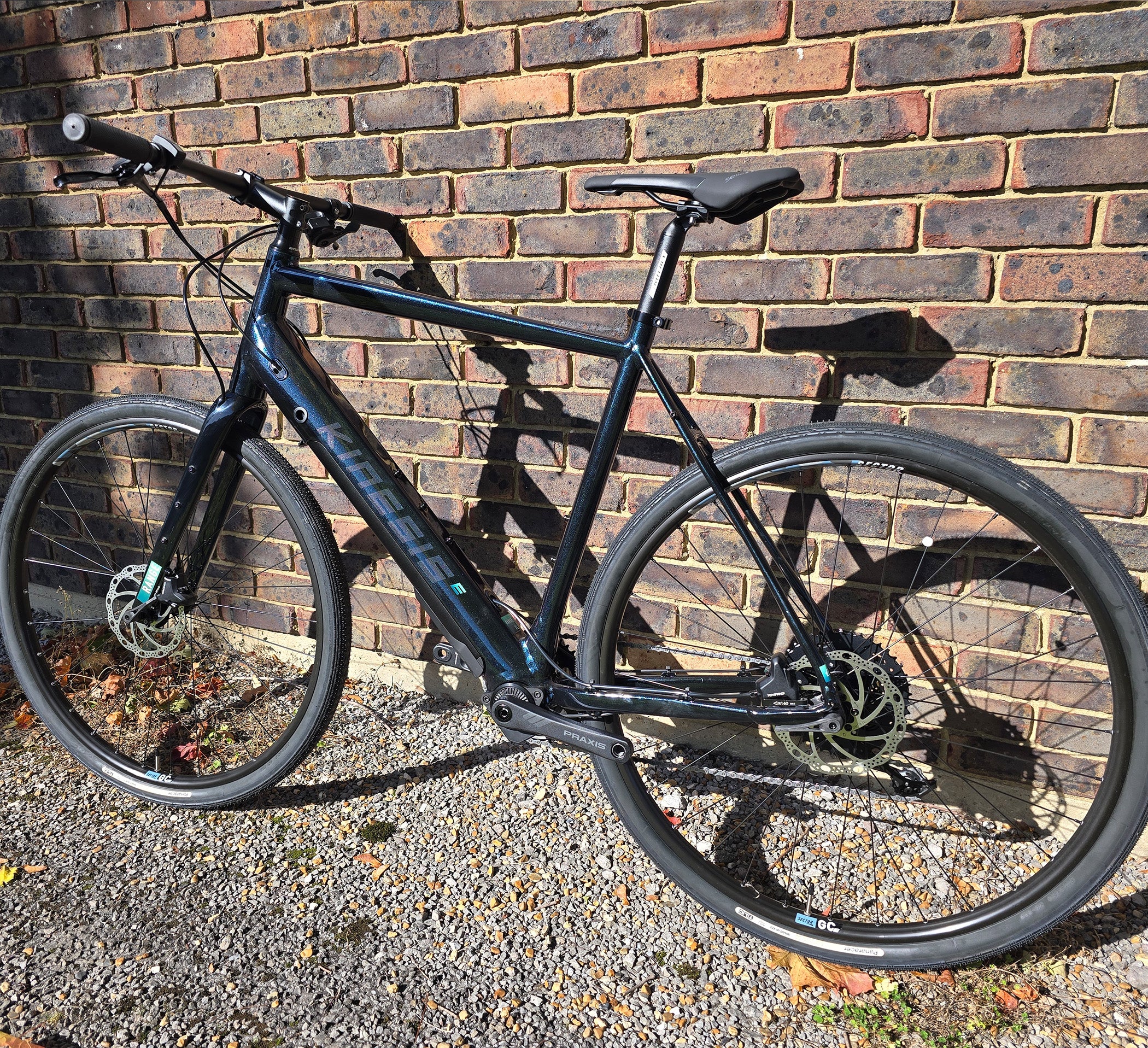

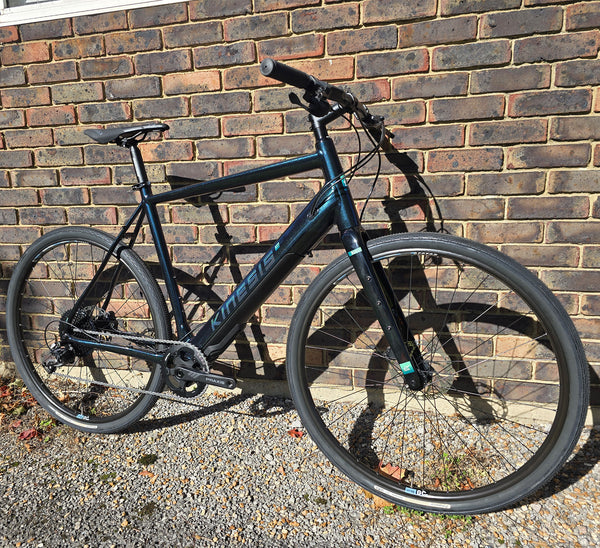

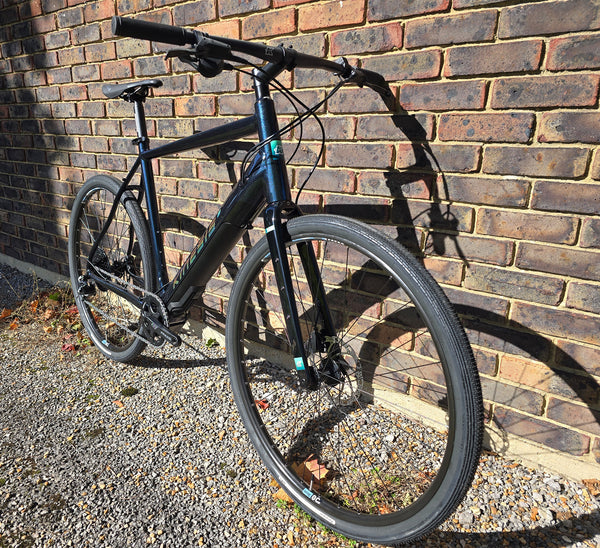

Range Flat Bar Ride 50 XL Ex-Display

Sale price £2,500.00 GBP

Shipping calculated at checkout

SKU: K-BIKE-RANGE-50-FB-6XL
Colour: Blue

Only 1 in stock

This bike was sold to a customer but was returned as they changed their mind. The bike has been ridden for 1km only and is in almost new condition, apart from some dirt on the tyres.

ENJOY EVERY MOMENT ON TWO WHEELS
Flat Bar e-bike is an elegant electric fitness bike that makes lightwork of hills and allows you to travel faster, further and more frequently than ever before. It features a lightweight aluminium frame paired with the excellent Fazua Ride 50 Trail motor system, for a carefree and enjoyable experience on every journey.

FAZUA MOTOR: THERE WHEN YOU NEED IT
The Fazua system kicks in below 15.5mph, providing you with up to 350 Watts of assistance, offering you a welcome helping hand when moving off from a standstill, or taking on hills. Above 15.5mph, the Fazua motor seamlessly decouples from the drivetrain, so you can push on without any extra resistance. With three customisable levels of assistance and an integrated top tube remote, you remain in complete control of the level of power that you need. Need to go further? Spare batteries are available and easy to change, so you can carry as much battery as you need.

Features

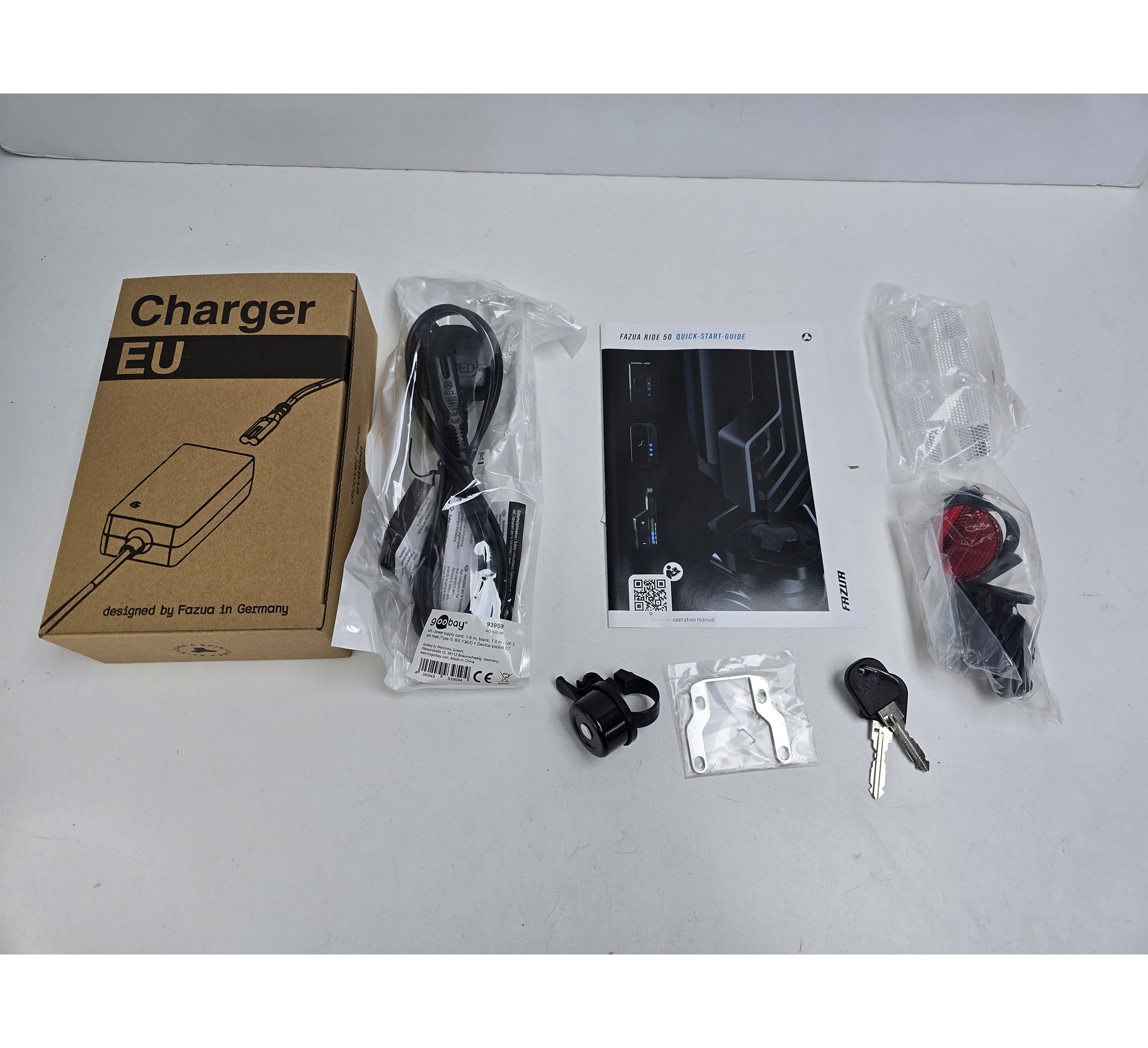

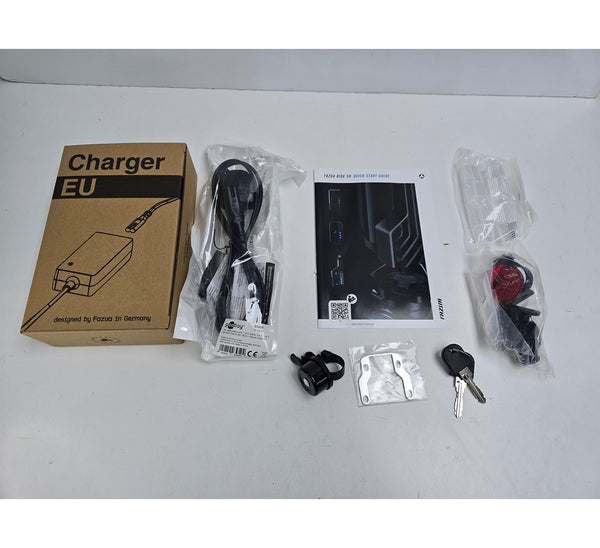

Also, the Range Flat Bar bike comes with some spare and manuals in the separate box, in the bike box:

• Drivepack port cover and 2x torx bolts.

• Cassette spoke cover.

• Wheel and spoke reflectors.

• Bell.

• Bar tape finishing strips.

• Fazua manual.

• Range user manual.

• Range quick start guide.

• Fazua Evation charger and UK plug.

Important Notes
• Two keys are attached via a cable tie to the gear cable, keep a note of the number on the key (this will be needed by AXA when requesting a new key).

• Please fully charge the battery before first use.

• Please check for updates to the Fazua Evation software, by going to Fazua.com and downloading the toolbox software.

• Please fully read the manuals before enjoying your Fazua Evation equipped Kinesis, to understand the modes, displays, and the technologies which you will be using.

WARNING: The maximum total weight allowed (rider, clothing, protective gear, backpack, luggage etc.) is 120kg.

Specification

• Aluminium Frame with 50C Tyre Clearance.

• Galactic Iridescent Paint Job.

• Full Carbon RANGE Fork with Luggage Mounting Points.

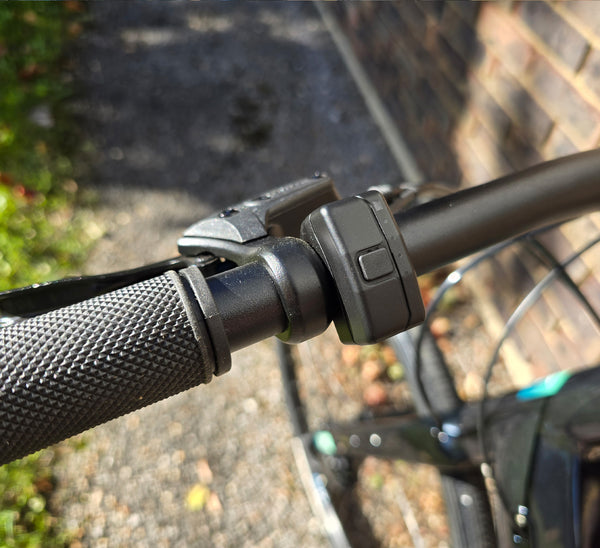

• Fazua Evation Drive System with Top Tube Remote. Now with Black Pepper Software Update.

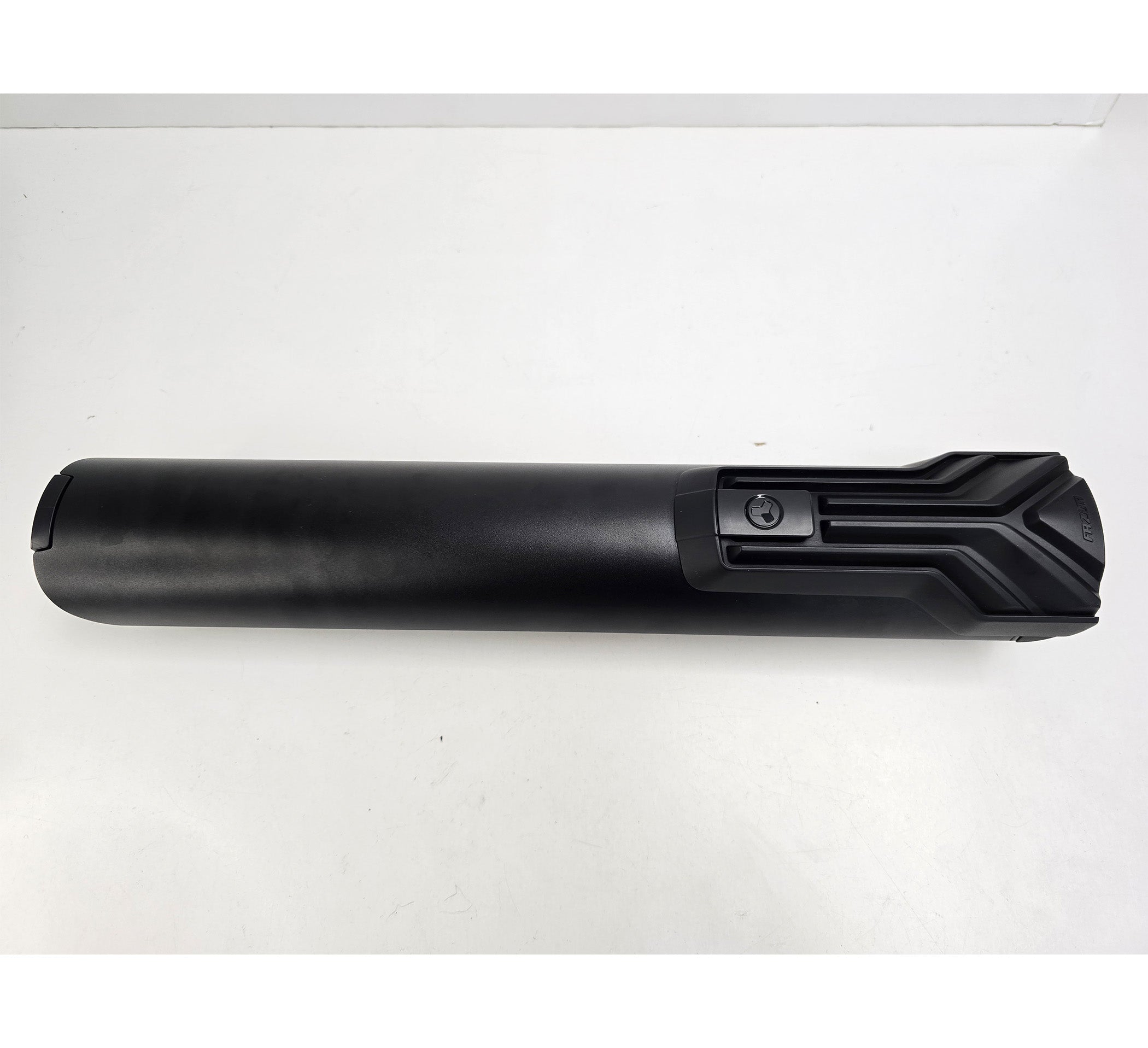

• Removable 252Wh Battery.

• Rack and Mudguard Compatible.

• MicroSHIFT XLE 1x10 Drivetrain.

• Tektro hydraulic brakes.

• Weight: 14.9kg (size medium).

Comes equipped with the new Fazua 250 X Battery, allowing remote power on/power off functionality without removing the battery.

Colour: Galactic

Weight: 14.9kg (Medium)

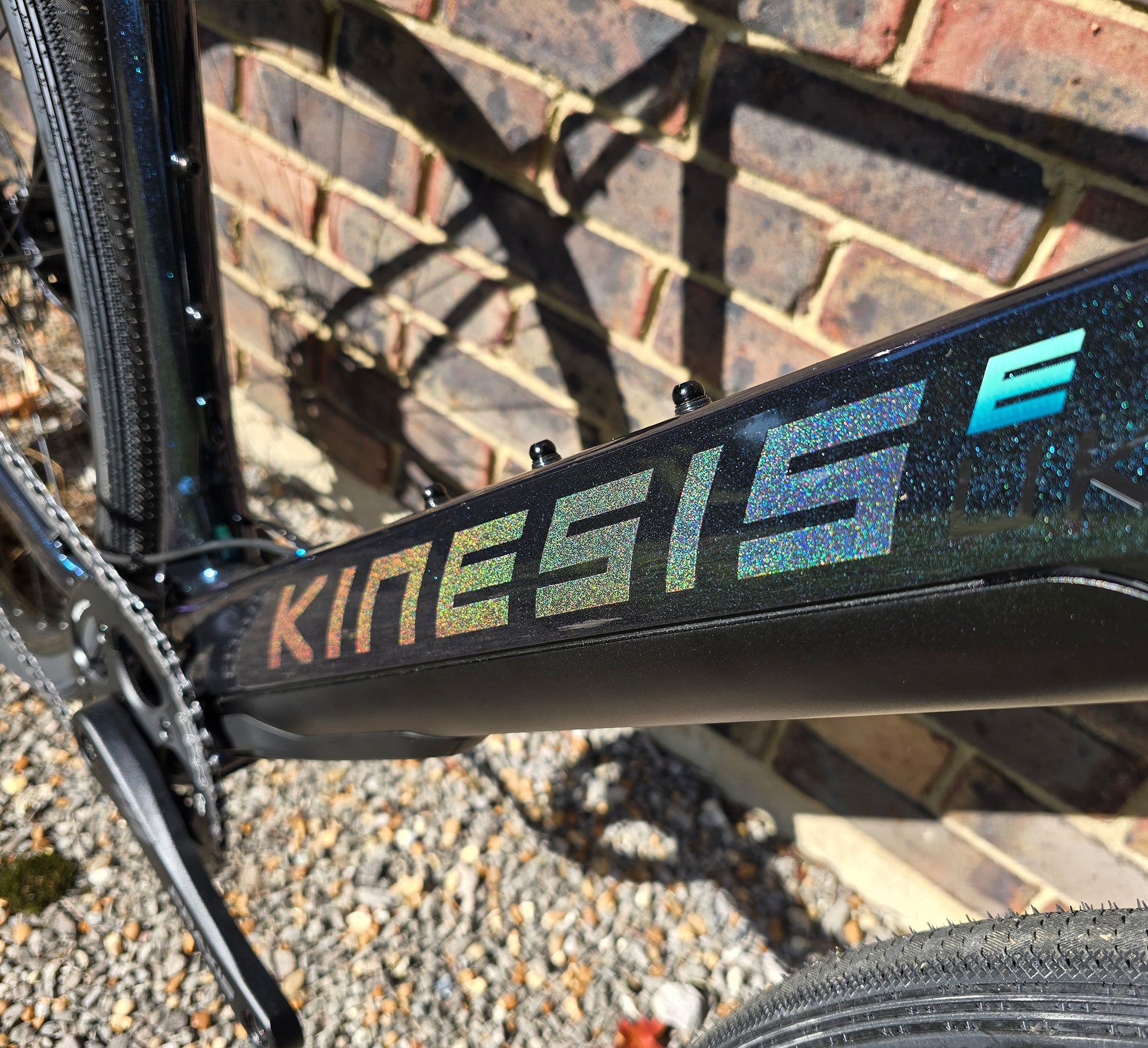

Frame: Kinesis UK RANGE lightweight 6061 Hydroformed Aluminium Frame

Fork: Kinesis Range Carbon ForkShift

Levers: MicroSHIFT XLE 1x10spd

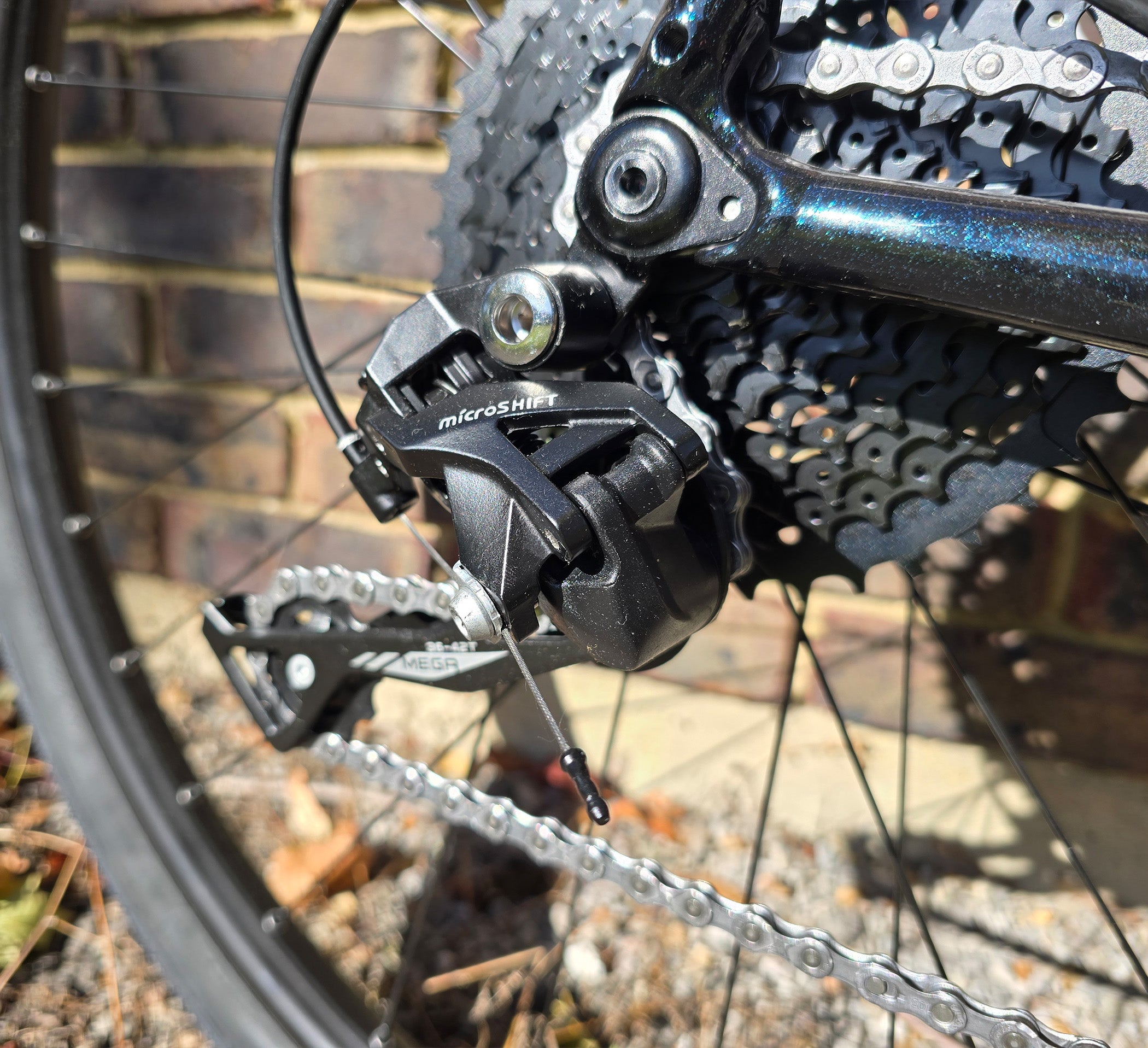

Rear Derailleur: MicroSHIFT XLE

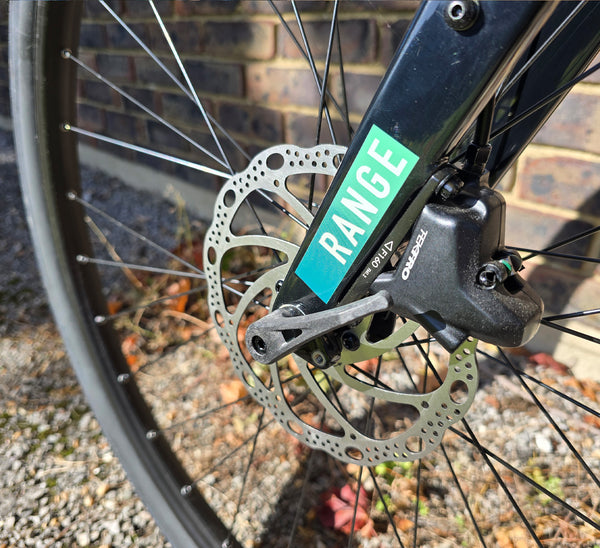

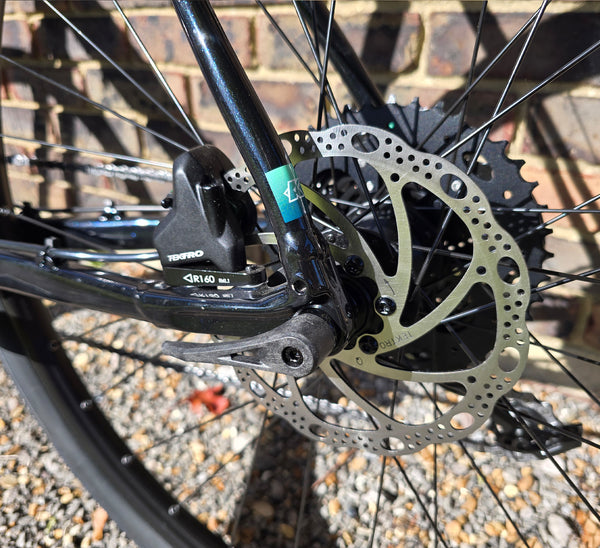

Brakes: Tektro R280 - 160mm Front and Rear

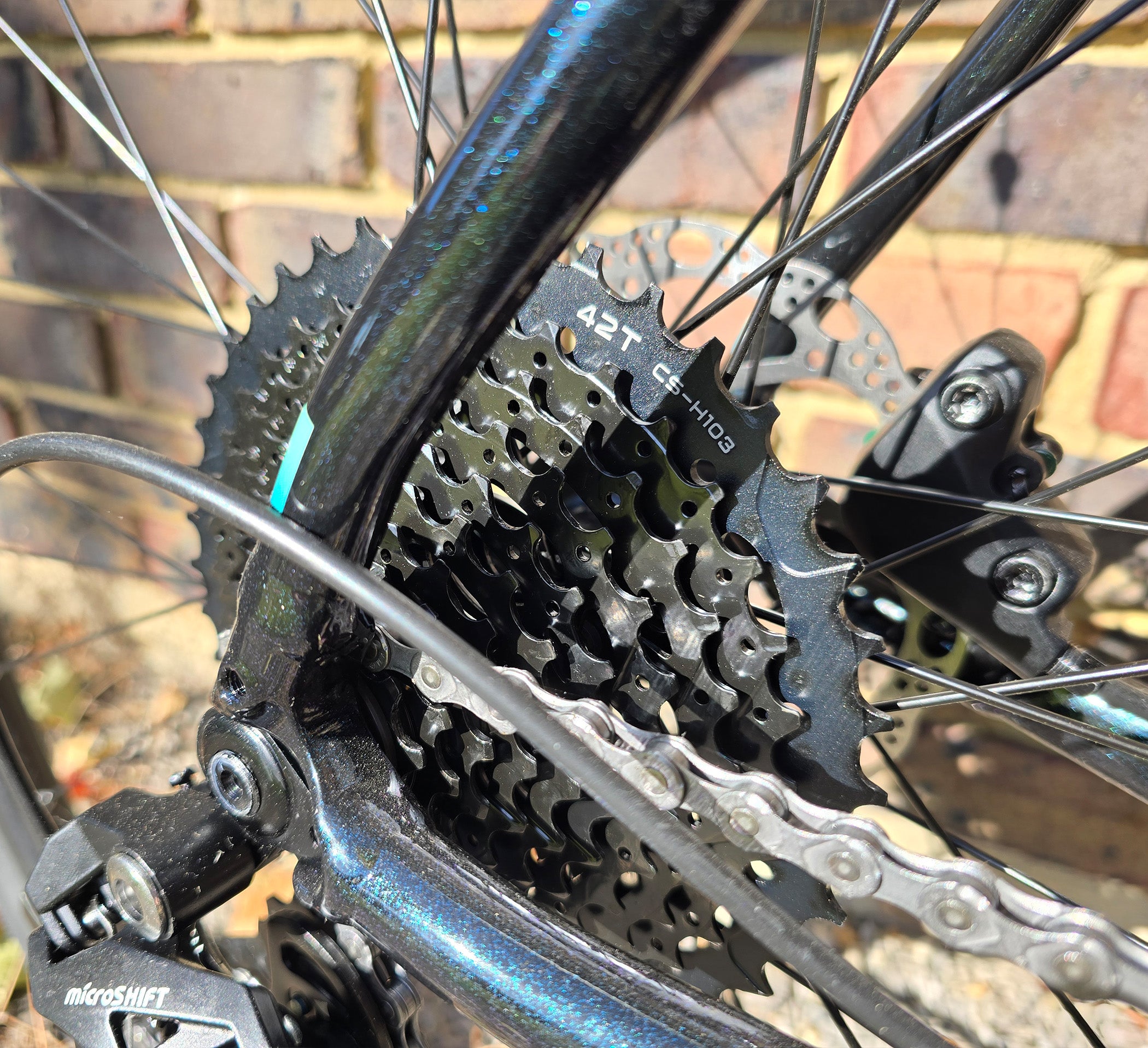

Cassette: MicroSHIFT 11-42

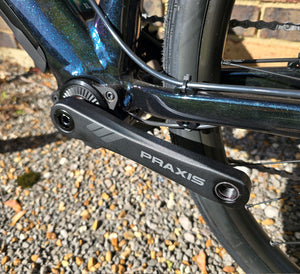

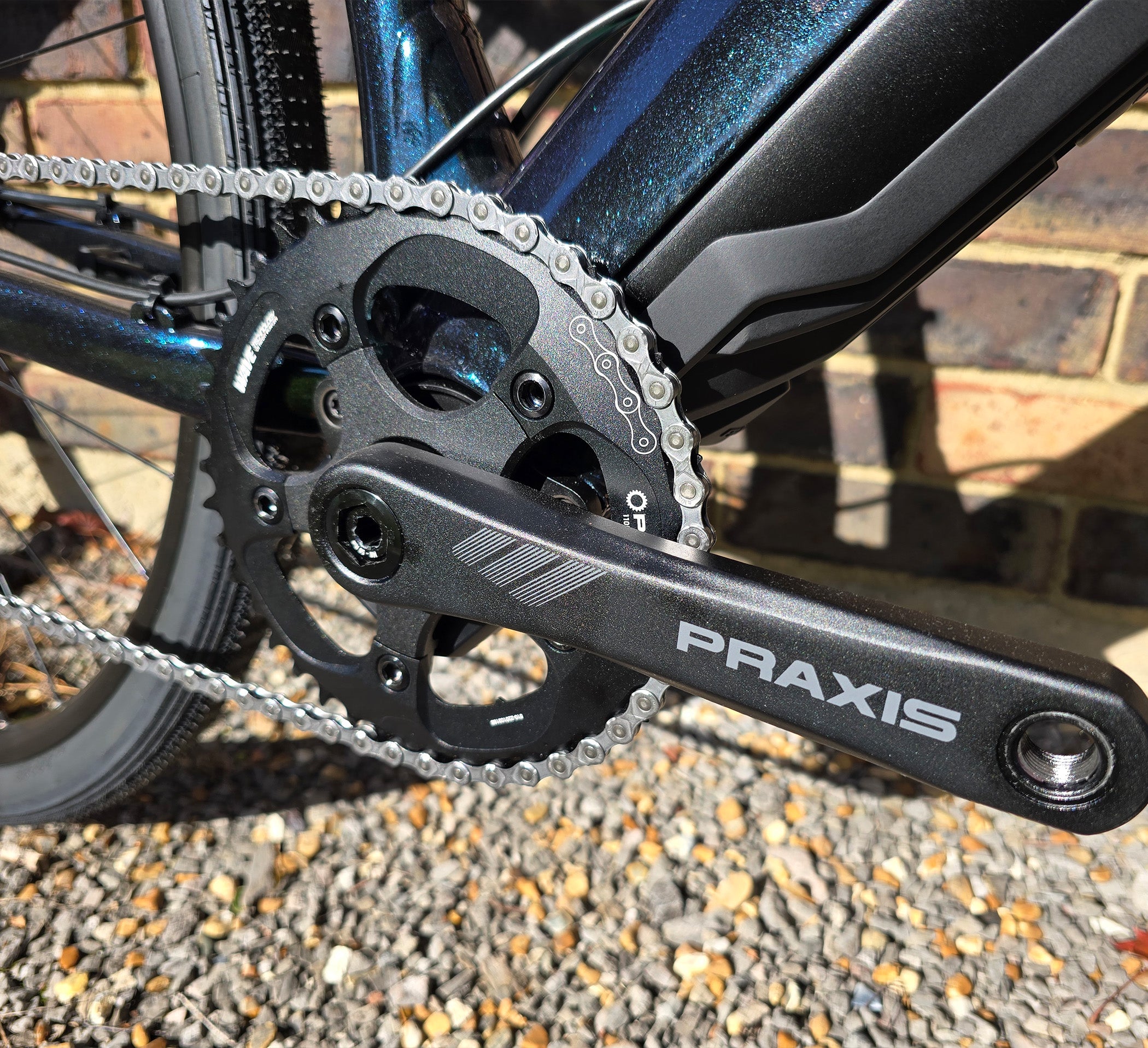

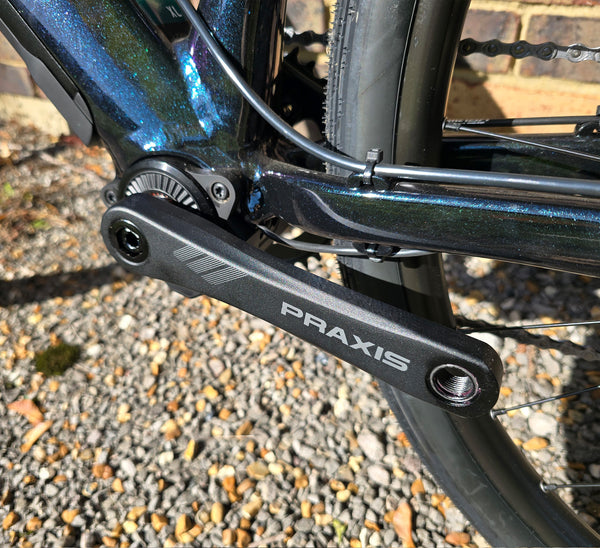

Crankset: Praxis Alloy E-Crank 42t - 170mm

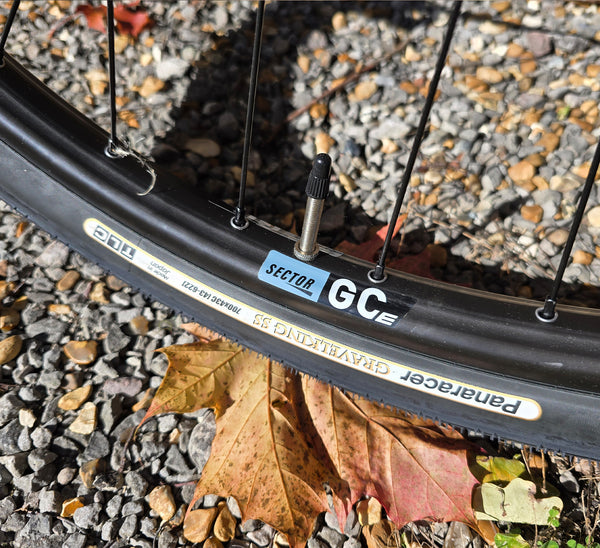

Rims: Sector GCe E-Specific Tubeless Ready Aluminium Rim. Eyeletted and Pinned

Hubs: Sector E-Specific Hubs w/ Steel rear Axle, 5 Bearings and 4 pawl Freehub

Spokes: 14g Black

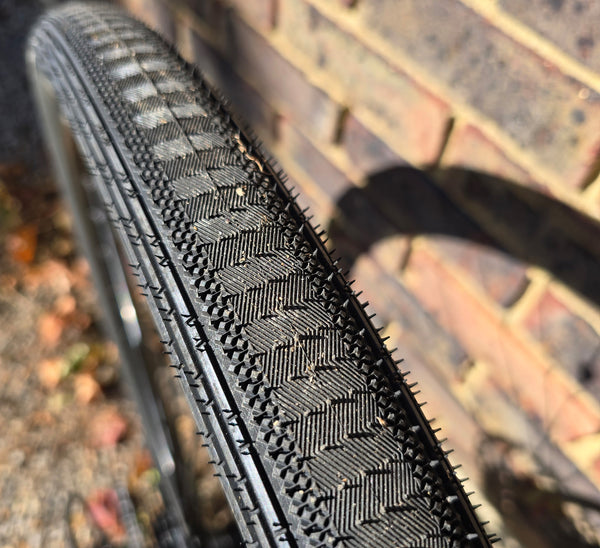

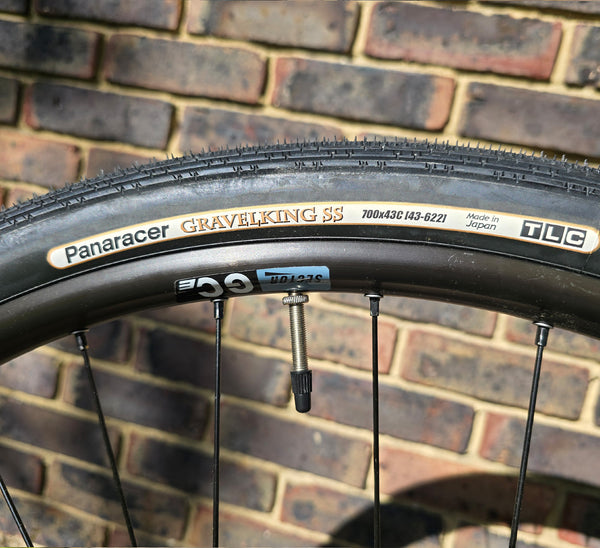

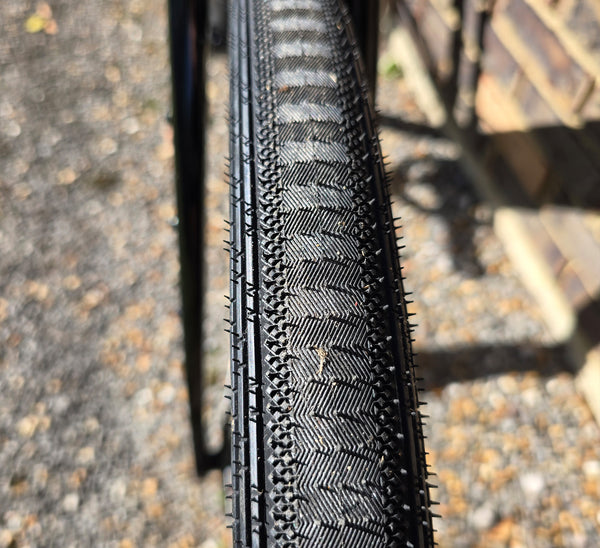

Tyres: Panaracer GravelKing SS 43c Tubeless Ready

Seatpost: Ritchey 2-Bolt 350mm x 31.6 diameter / 25mm offset

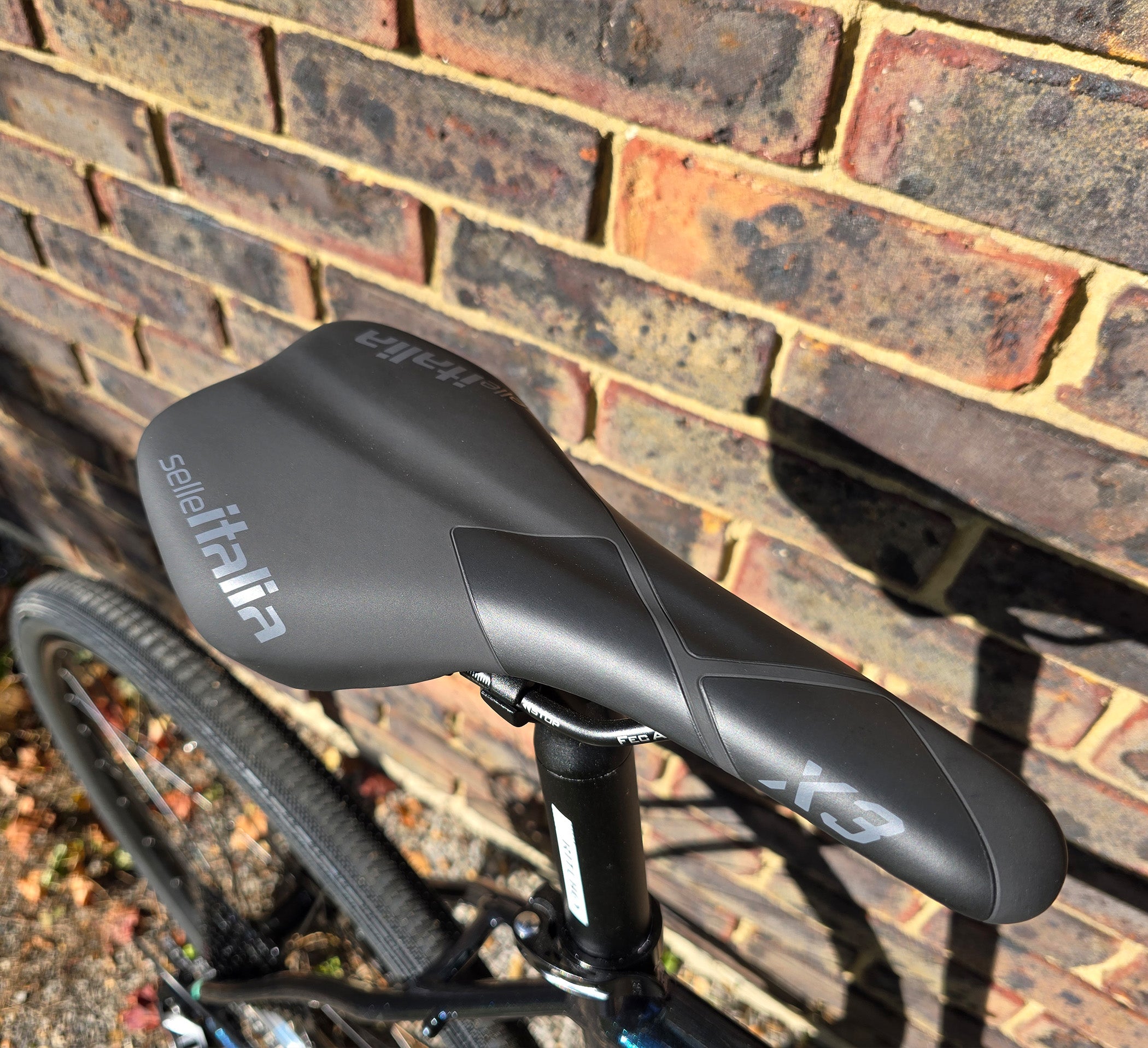

Saddle: Selle Italia X3

Handlebar: Kinesis 720mm Aluminium Bar

Stem: Kinesis Alloy - 90mm

Headset: FSA no.42 Cartridge Bearing

Grips: Ritchey MTN Comp

Geometry - Range 50 Flat Bar

Kinesis Range Size SMALL MEDIUM LARGE X-LARGE

Seat Tube Length C-T (mm) 440 490 540 570
Top Tube Length Effective (mm) 534 551 574 595
Head Tube Length (mm) 131 157 185 224
Head Tube Angle (°) 70.5 70.5 71 71
Seat Tube Angle (°) 74 74 73.5 73.5
BB Drop (mm) 75 75 72 70
Chainstay Lenght (mm) 440 440 440 440
Front Centre (mm) 602.7 621 635 657.9
Wheelbase (mm) 1032 1050 1065 1089
Stack (mm) 555 580 605 640
Reach (mm) 375 385 395 405
Fork Length (mm) 395 395 395 395
Fork Rake (mm) 50 50 50 50
Trail (Actual) (mm) 74 74 71 71
Standover A* (mm) 708 745 . 834
Standover B* (mm) 756 780 . 862
Handlebar Width (mm) 720 720 720 720
Stem Length (mm) 80 80 90 90
Crank Length (mm) 165 165 170 170
Seatpost Length (mm) (350 x 31.6 / 25 offset) 350 350 350 350
Seatpost Clamp (mm) 34.9 34.9 34.9 34.9
*Standover A is measured from the floor through the bottom bracket to the top of the top tube
*Standover B is measured from the floor through the centre of the top tube to the top of the top tube

Additional Info

The Range Flat Bar bike will be delivered 95% built.

• The front wheel needs fitting (rotor attached).

• You’ll need to align the front brake caliper.

• The handlebars need fitting to the stem (the stem comes fitted with a negative rise, and 2x10mm spacers under and 1x10mm spacer above the stem).

• The seatpost needs fitting (saddle attached to post).

• The Fazua battery is located in the separate box.

• Remove the Drivepack from the bike, and remove the top cover from the Drivepack. Slide the battery in the Drivepack, and refit to the bike.

• Fit the Drivepack port cover.

• Remove the locker shim (taped to the top tube). This should not be required, but please refer to the Fazua website for its usage.

Pedals are NOT included.
Quick Start Guide

User Manual

Fazua Ride 50 User Manual

Fazua Ride 50 Quick Start Guide
