Kinesis - Frame - FF29 - Black Bronze
Kinesis FF29 Frame, Black
Kinesis FF29 Frame, Black
Kinesis FF29 Frame, Black
Kinesis FF29 Frame, Black Bronze
Kinesis FF29 Frame, Black
Kinesis FF29 Frame, Black
Kinesis - Frame - FF29 - Black Bronze
Kinesis - Frame - FF29 - Black Bronze
Kinesis - Frame - FF29 - Black Bronze
Kinesis FF29 Frame, Black

Kinesis UK

Kinesis - Frame - FF29 - Black Bronze

Regular price £390.00 Sale price £600.00
On Sale

Tax included

Shipping calculated at checkout

Colour: Black Bronze
Size

GEOMETRY LEADING DESIGN.

Geometry is the number one factor in the handling of a mountain bike frame. FF29 has been designed with forward thinking geometry for the ultimate ride:


SIZE BY LENGTH

FF29 features a length based sizing system. Depending on how you like your fit, you can size up or down to according to reach. Thanks to the small seat tubes and long dropper posts - each size accommodates a wide range of riders.


SIZE ADVICE

Choosing the correct bike size for you depends on the type of bike, your height, your riding style, and your preference of fit.

A correct fitting bike will provide a more comfortable, more efficient and more fun ride.

If you are unsure we always recommend visiting one of our stores or contacting one of our experts from our contact us page.

Size guide

Only 4 in stock


In 2012 we launched the FF29 and it went on to win multiple magazine reviews and awards. For 2023 the FF29 is re-born – longer, lower, meaner – but still furiously fast. Geometry has been bought bang up to date, the custom framebuild utilises all-new tubing technology and it comes brimming with features designed for UK trails.

Working with Kinesis Taiwan for nearly 30 years gives us unique access to the best know-how in the aluminium frame industry. We can develop a mountain bike frame tuned to the needs that we want as riders – giving the ride quality we enjoy while combining stiffness and durability at the lowest possible weight. We have also designed the FF29 with adjustable dropouts so that riders can optimise the rear stay length for their style of riding. This also allows setting the frame up as a single speed.

The FF29 is long, low and stable with a steep seat tube and long reach numbers – the frame is sized by reach, and is designed for use with a dropper post.

It's slack but this bike is no slacker - with a head angle of 65.5º, you get a nimble, agile feel at the bars for singletrack hacking. We wanted an all-day hard-charging fully-capable 29” hardtail bike based around a 140mm fork, the sort of bike most of us ride here on the South Downs. Great for climbing and seriously fast for the descents – just how a hardtail should be. How will you build yours?

Features

The FF29 uses Kinesis’s advanced SPF — Super Plastic Forming. Most manufacturers use hydroformed tubes, but with SPF we can create lighter aluminium tubes and more intricate shapes that will build into a lighter and stiffer frameset.

Geometry designed for every ride — The FF29 is long, low and stable with a steep seat tube & long reach numbers. Despite this, it’s not ‘slack’ or slow handling thanks to a head angle of 65.5º providing a nimble/agile feel at the bars for singletrack hacking.

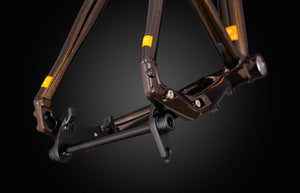

Flexible setup — Horizontally adjustable dropouts allow you to fine-tune the FF29’s chainstay length for how you ride, with the added benefit of single-speed capability.

Size by Reach — Choose a size based on your riding style and fit preference rather than your height.

Easy external cable routing — Externally routed cables make servicing easy and allow the use of a full-length outer cable to ensure your FF29 will run through a UK Winter.

GW Switch Lever Thru Axles — Clean and simple design with a removable lever

Specification

FRAME: SPF 6061 aluminium tubing
TYRE CLEARANCE: for 29 x 2.5in tyres
REAR AXLE: 148 x 12mm Boost rear axle spacing
BOTTOM BRACKET: BB92 BB shell
SEATPOST: 31.6mm seat post required.
FRONT MECH: 34.9mm front mech clamp required.
HEADSET REQUIRED: Tapered integrated
AXLES: GW ‘Switch Lever’ rear axle.
WEIGHT: 2.0kg (L3 frame)
FRAME SUPPLIED WITH: dropouts, rear axle, seat clamp and cable guides
WARRANTY: 5 years.

Geometry - FF29
Frame Size L1 L2 L3 L4

Seat Tube Length 370 395 425 465
Top Tube Length (Effective) 593 620 640 667
Head Tube Length 100 111 120 127
Head Tube Angle 65.5 65.5 65.5 65.5
Seat Tube Angle 76 76 76 76
Bottom Bracket Drop 63 63 63 63
Chain Stay Length (shortest) 435 435 435 435
Front Centre 753 782 804 832
Wheelbase (shortest) 1181 1210 1232 1253
Stack 632 642 650 657
Reach 435 460 478 503
Fork Axle to Crown 551 551 551 551

Additional Info

Sizes: L1, L2, L3, L4
Colours: Orange or Black Bronze

Your new favourite hard-charging hardtail.

Horizontally adjustable dropouts allow you to fine-tune the FF29’s chainstay length for how you ride, with the added benefit of single-speed capability. Premium aluminium construction, and all the detailing, features and benefits you could ever wish for.

Your build, your bike.

It's slack but this bike is no slacker - with a head angle of 65.5º, you get a nimble, agile feel at the bars for singletrack hacking. We wanted an all-day hard-charging fully-capable 29” hardtail bike based around a 140mm fork – great for climbing and seriously fast for the descents.

Testimonials

In 2012 Kinesis launched the FF29 and fast forward 11 years and the FF29 is re-born. It had all the treatment you would expect from a modern bike: longer, lower but still keeping it a fun fast hardtail design to take on the trail centres and single track of the UK. Kinesis have also designed the FF29 with adjustable dropouts so that riders can optimise the rear stay length for their style of riding. This also gives the opportunity to set the frame up as a single speed.
