Kinesis UK

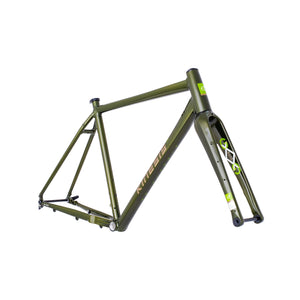

GX Race Frameset

Sale price £925.00 GBP

Tax included

Shipping calculated at checkout

SKU: K-FS-GXRACE-G-48
Colour: Moss Metallic
Size
Size guide

Only 4 in stock

The Kinesis GX Race combines the speed and agility of our race-winning CX Race frameset, with the strength and capability of our award-winning Tripster AT frameset. With our new race-inspired gravel bike geometry you are more aerodynamic in the drops or the hoods of the GX Race – a longer reach allows for shorter stems to be used for improved and more comfortable off-road handling at high speed.

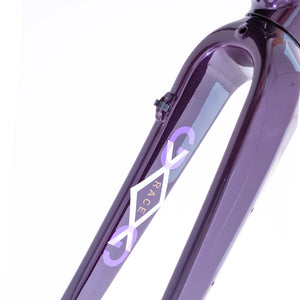

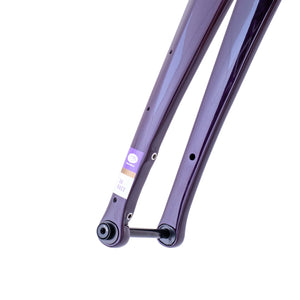

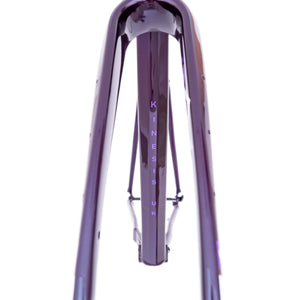

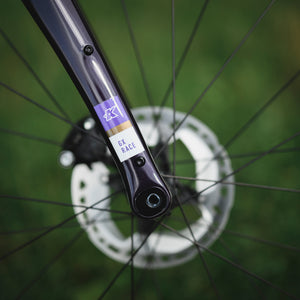

We have matched our GX Race premium alloy frame with the all-new Columbus Futura Cross Plus full carbon monocoque fork. The Futura Cross Plus features cargo mounts, internal dynamo cable routing, masses of tyre clearance and adjustable offset, all wrapped up in a lightweight package.

The GX Race uses adaptable cable ports, allowing you to build your frame with exactly the right cable routing, whether you're running wireless, Di2 or mechanical 2x or 1x gearing for the perfect gravel race bike.

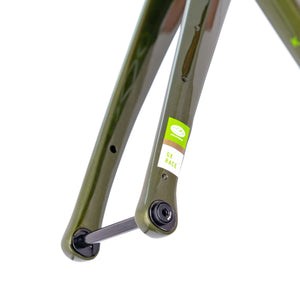

As with our other framesets, we have partnered with GW Engineering and we are supplying the GX Race frame with their patented ‘Switch Lever’ lightweight hollow thru axles with a removable lever. If your riding extends to swift bike-packing trips then you can load this bike up to reach far-off destinations that much faster.

Features

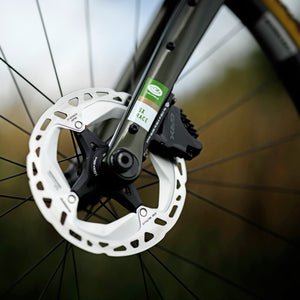

Disc brake Mounts - Inboard Shimano Flat-Mount disc mounts on frame and fork (maximum 160mm rotors).

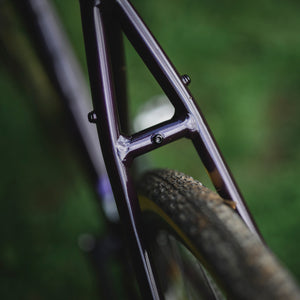

Ride Further - Seat stay mounts for mudguards and pannier racks. Bridges on chain stay and seat stay for fender mounting run 40mm tyres with full mudguards for clean winter riding!
Tyre Clearance - 700c x 45mm tyre clearance / 650b x 50mm tyre clearance.

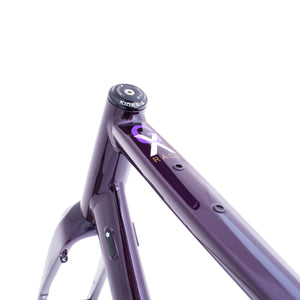

Fixtures - 2 x bottle boss mounts with multi position points plus top tube mounts for secure fixing of a top tube bag.
What's included - Headset, Thru-Axles, seat clamp and all cable guides included.
Internal Routing - Internal cable routing for mechanical and electronic gear systems.

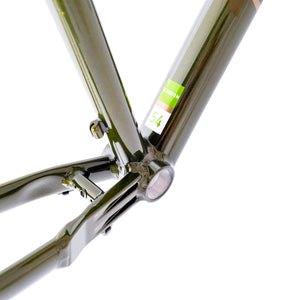

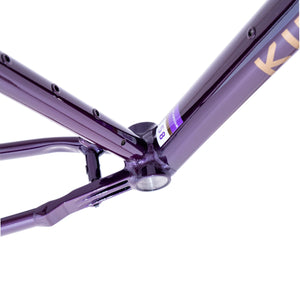

Bottom Bracket - BSA threaded BB for real-world low-maintenance riding.
Geometry - Semi-sloping top tubes on our smallest sizes ensure a great fit without compromising handling.
Sizes — 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes.
Weight — 1.69kg (54cm frame).
Colours — Metallic Aubergine or Moss Metallic.

Specification

TUBING: Tough yet lightweight 6069 series tubeset with tapered machined headtube.

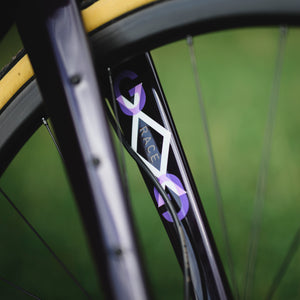

FORK: All new colour-matched Columbus Futura Plus carbon fork with 12mm Thru-Axle.

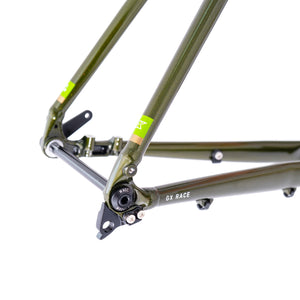

AXLES: 142 x 12mm rear and 100 x 12mm front axle spacing.
BOTTOM BRACKET: 68mm threaded BB shell.
CHAINRING: 48T max chainring size (single or double).

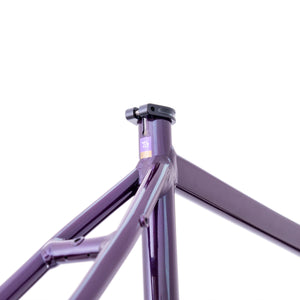

SEAT CLAMP: 31.8mm seat clamp included.

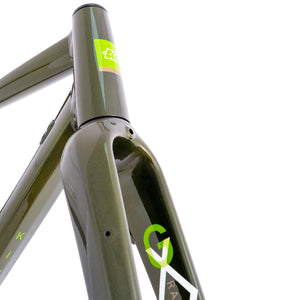

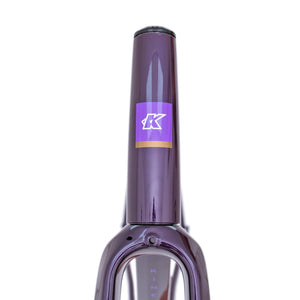

HEADSET: 1 1/8” – 1 ½” tapered headtube with integrated headset.
FRONT MECH: 31.8mm front mech clamp required.
SEATPOST: 27.2mm seat post required.

Geometry - GX Race
Frame Size XXSmall (48cm*) XSmall (50cm*) Small (52cm) Medium (54cm) Large (56cm) XLarge (58cm) XXLarge (60cm)

Seat Tube Length 440 470 495 540 560 580 600
Top Tube Length (Effective) 521 531 542 557 569 584 600
Head Tube Length 110 120 135 155 175 195 215
Head Tube Angle 70 70 70.5 70.5 70.5 70.5 71
Seat Tube Angle 74 74 74 73.75 73.75 73.5 73.3
Bottom Bracket Drop 75 75 75 72 72 72 72
Chain Stay Length 440 440 440 440 440 440 440
Front Centre 590 600 608 621 635 648 657
Wheelbase 1018 1029 1037 1051 1064 1078 1087
Stack 533 543 559 575 594 612 633
Reach 368 375 382 389 396 403 410
Fork Axle to Crown 395 395 395 395 395 395 395
Fork Rake 47 47 47 47 47 47 47
*semi sloping top tube

Additional Info

Tyre Clearance

With plenty of room front and rear, you can easily accommodate 700c x 45mm or 650b x 50mm tyres.

Versatility

Internal cable routing for mechanical and electronic gear systems and 2 x bottle boss mounts with multi-position points plus top tube mounts for securely fixing a top tube bag make this a versatile frameset.

Testimonials

Despite its traditional looks, the Kinesis GX Race is a thoughtfully put-together gravel race bike. Most importantly, it has clearance for big gravel tyres – up to 45mm wide on 700c rims or 50mm on 650b rims. It has a full-carbon fork, semi-internal cable routing and a whole suite of mounting points for mudguards and accessories – the geometry is fairly progressive. The fork even includes a flip chip to adjust the bike’s trail. Those mostly round tubes also look fantastic – especially with the ‘metallic aubergine’ paint job and classic bend handlebar I’ve specced. Without wanting to be parochial, it’s also nice to support a smaller, UK-based brand.
