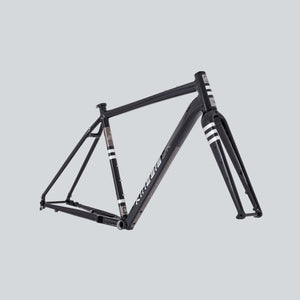

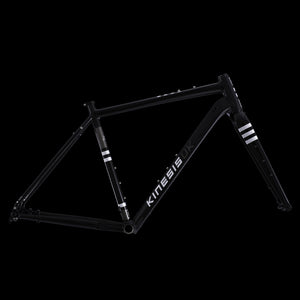

Tripster AT Plus Frameset

Regular price £900.00 GBP

Tax included

Shipping calculated at checkout

SKU: K-FS-TPPLUS-KO-48
Colour: Gloss Black
Size

Only 9 in stock

The new Tripster AT Plus Adventure Frameset. Like a Tripster AT but more. Much more. More clearance, more capability, more gravel. More everything. We’ve taken our favourite Tripster AT and jacked it to the hilt. Who needs 650B? With ample tyre clearance of 700 x 50mm you can have a larger tyre without the rolling ability compromise of a smaller diameter wheel.

For even more manoeuvrability, the Tripster AT has internal routing for a dropper post. Not ridden a dropper post on a gravel bike before? When you ride it for the first time, you'll wonder why you didn't make the switch years ago.

We have an all-new Kinesis All Terrain carbon fork for the AT Plus with extended clearance for bigger tyres. This fork also comes with internal dynamo and brake hose routing, and cargo mounts – rack it up, and ride on out.

The Tripster AT is two-by compatible only and will work with both electronic and mechanical groupsets – pick your poison. The Tripster AT Plus has triple bottle mounts, top tube mounts and fork cargo mounts for maximum bike-packing capability. And that's what the all-new Tripster AT Plus is ALL about – maximum capability.

Features

Increased Tyre Clearance — With ample tyre clearance of 700 x 50mm you can have a larger tyre without the rolling ability compromise of a smaller diameter wheel. A narrower tyre should be used in muddier conditions.

Tweaked Geometry — The Tripster AT Plus has a more sloping top tube than our other gravel bikes, giving the rider more manoeuvrability around the bike when the going gets rough.

Bottom Bracket — It also has a lower bottom bracket to lower the centre of gravity when fitted with larger tyres.

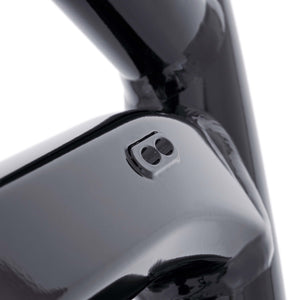

Internal Cable Routing — For even extra manoeuvrability, the Tripster AT has internal routing for a dropper post. Not ridden a dropper post on a gravel bike before? When you ride it for the first time, you'll wonder why you didn't make the switch years ago.

New Carbon Fork — We have an all-new Kinesis All Terrain carbon fork for the AT Plus with extended clearance for bigger tyres. This fork also comes with internal dynamo and brake hose routing, and cargo mounts – rack it up, and ride on out.

Choose your Drivetrain — The Tripster AT is two-by compatible and will work with both electronic and mechanical groupsets – pick your poison.

No Ride Restrictions — The Tripster AT Plus has triple bottle mounts, top tube mounts and fork cargo mounts for maximum bike-packing capability. And that's what the all-new Tripster AT Plus is ALL about maximum capability.

Specification

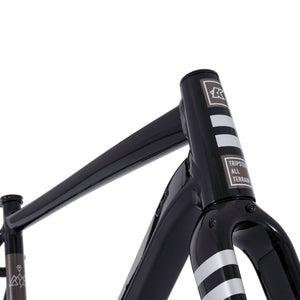

FRAMESET: Tough, lightweight 6069 aluminium series tubeset with a tapered machined headtube
TYRE CLEARANCE: Big tyre capability with clearance for up to 700c x 50mm - A narrower tyre should be used in muddier conditions
SEATPOST OPTIONS: Dropper post routing
FORK: New Kinesis All Terrain fork with internal dynamo and brake routing

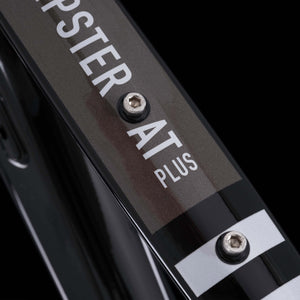

MOUNTS: 3 x bottle boss mounts, top tube mount and fork cargo mounts
REAR AXLE: 142 x 12 rear axle spacing
FRONT AXLE: 100 X 12 front axle spacing
SEAT TUBE: 31.8mm seat tube for 27.2mm seat post (will add a bit of compliancy)
MUDGUARD & LUGGAGE OPTIONS: Seat stay mounts for mudguards and a pannier rack
AXLE REMOVAL: GW Switch Lever Thru-axles included
DRIVETRAIN OPTIONS: Electronic / Mechanical / 2x or 1x Compatible, Max Chain ring of 42 or 44
BOTTOM BRACKET: BSA threaded BB for real-world low-maintenance riding
SIZING & WEIGHTS: (Centre/Top) 48cm = 1.69kg | 50cm = 1.72kg | 52cm = 1.75kg | 54cm = 1.79kg | 56cm = 1.83kg | 58cm = 1.87kg | 60cm = 1.91kg
FORK WEIGHT: Kinesis All Terrain fork 540g
FRAMESET INCLUDES: Kinesis carbon fork, Kinesis headset with ACB bearings, seat clamp, front and rear axles and cable port hardware

Geometry - AT Plus

Frame Size Seat Tube XXSmall (48cm) XSmall (50cm) Small (52cm) Medium (54cm) Large (56cm) XLarge (58cm) XXLarge (60cm)

Seat Tube Length C-T 430 460 490 530 550 570 590
Top Tube Length Effective 528 539 551 565 581 597 613
Head Length 100 110 130 150 170 190 210
Head Tube Angle 70 70.5 70.5 70.5 70.5 71 71
Seat Tube Angle 74 74 74 74 73.75 73.5 73.25
Bottom Bracket Drop 80 77 75 75 75 72 70
Chain Stay Length 450 450 450 450 450 450 450
Wheelbase 1038 1045 1060 1075 1090 1100 1115
Stack 552 560 577 596 614 632 649
Reach 370 378 386 394 402 410 418
Fork Axle to Crown 420 420 420 420 420 420 420
Fork Rake 50 50 50 50 50 50 50
Front Centre 600 607 621 636 650 660 674

Additional Info

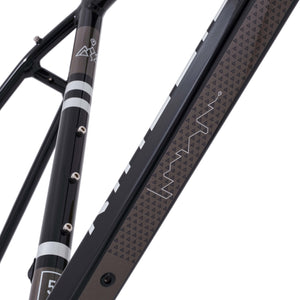

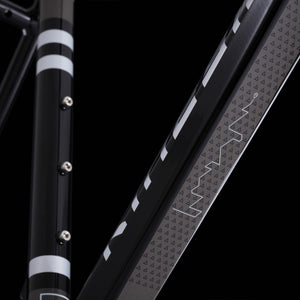

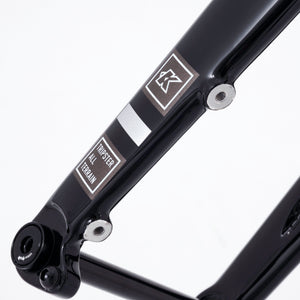

Optimum hydration system – multi-position down-tube bottle cage mounting to allow for full bottle carry capacity even with a frame bag

22mm long flat-mount disc brake bolts are required for the frame

Loading image:

Ride Further

The Tripster AT Plus has triple bottle mounts, top tube mounts and fork cargo mounts for maximum bike-packing capability. And that's what the all-new Tripster AT Plus is ALL about – maximum capability.

Loading image:

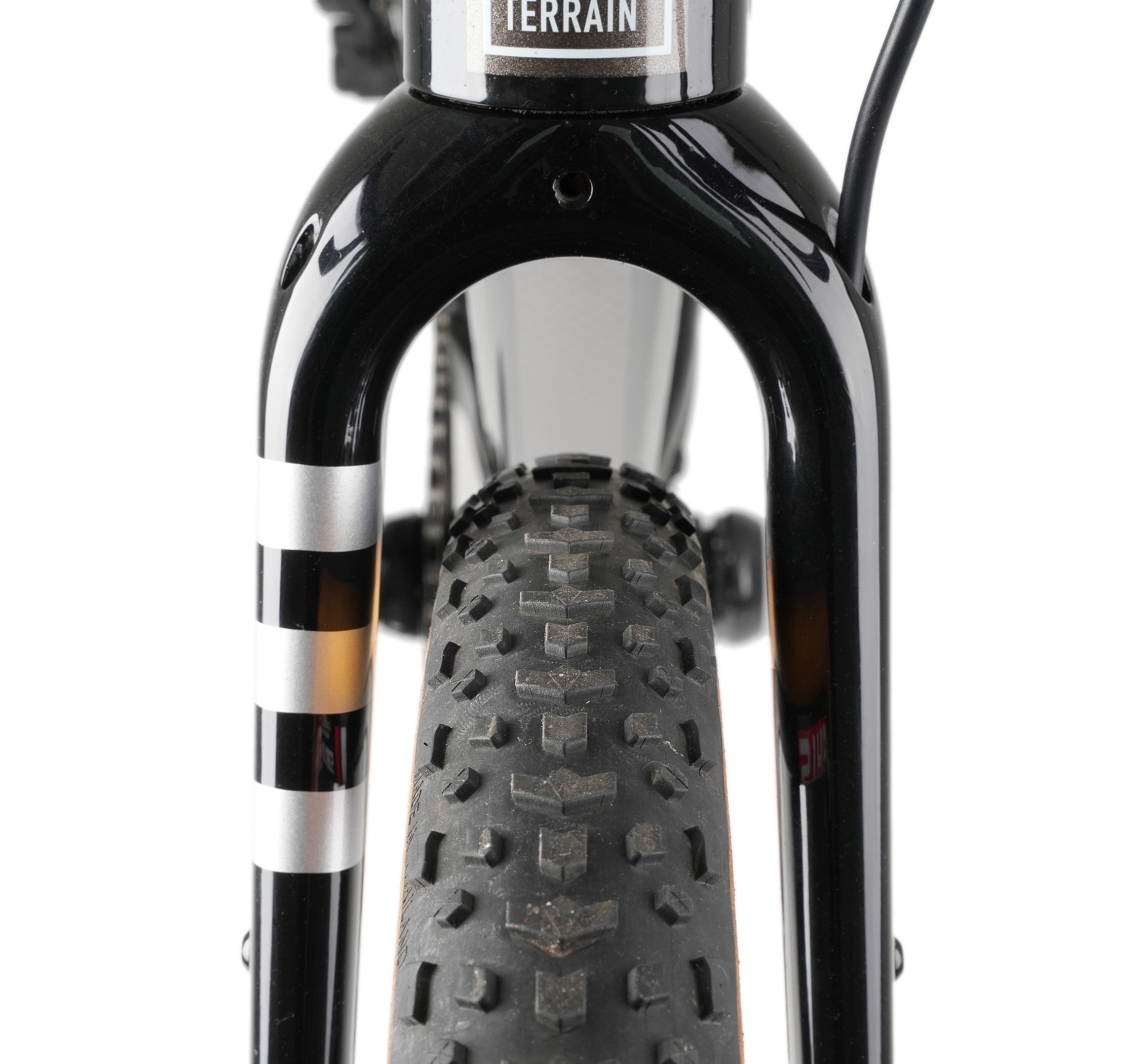

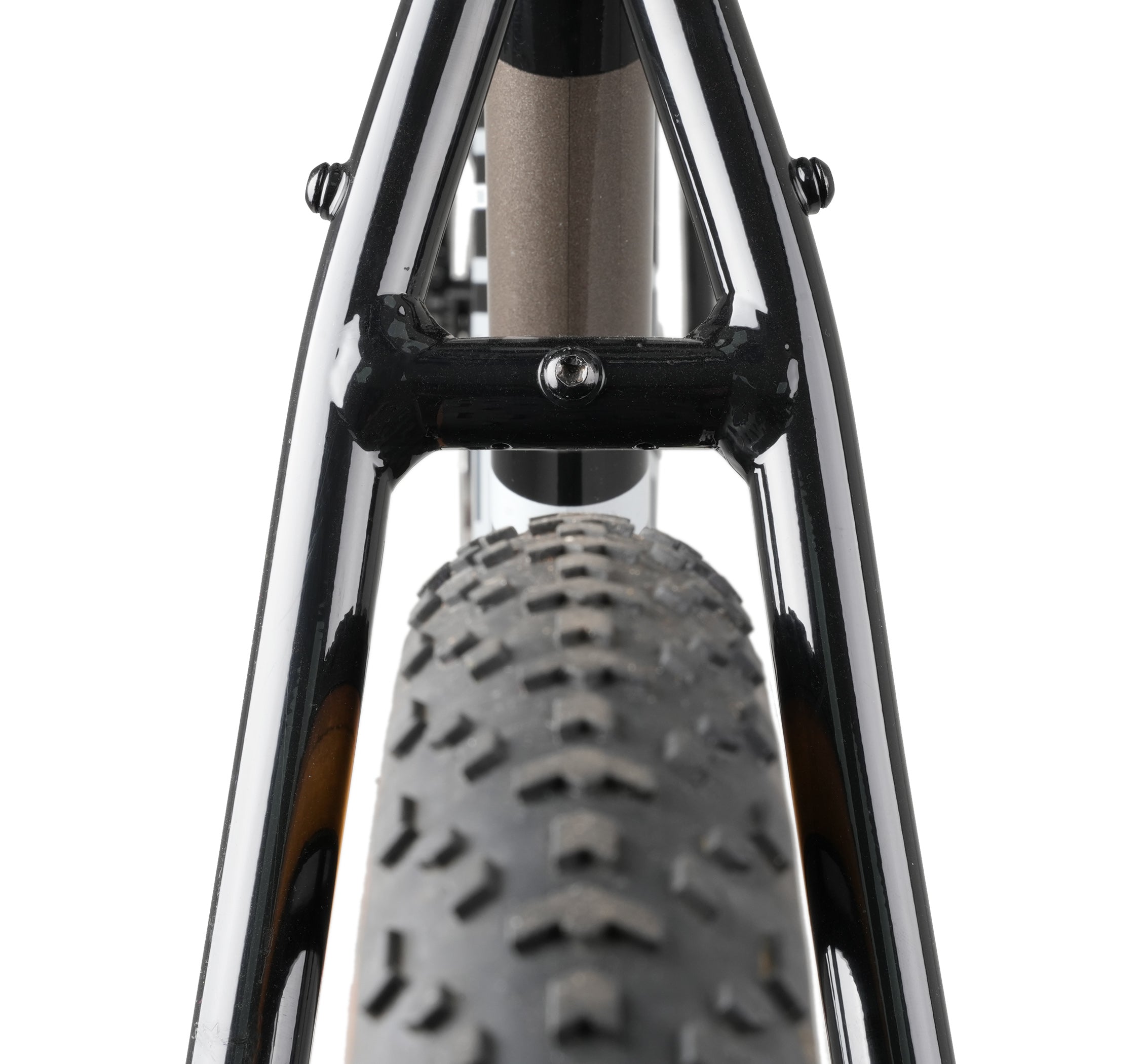

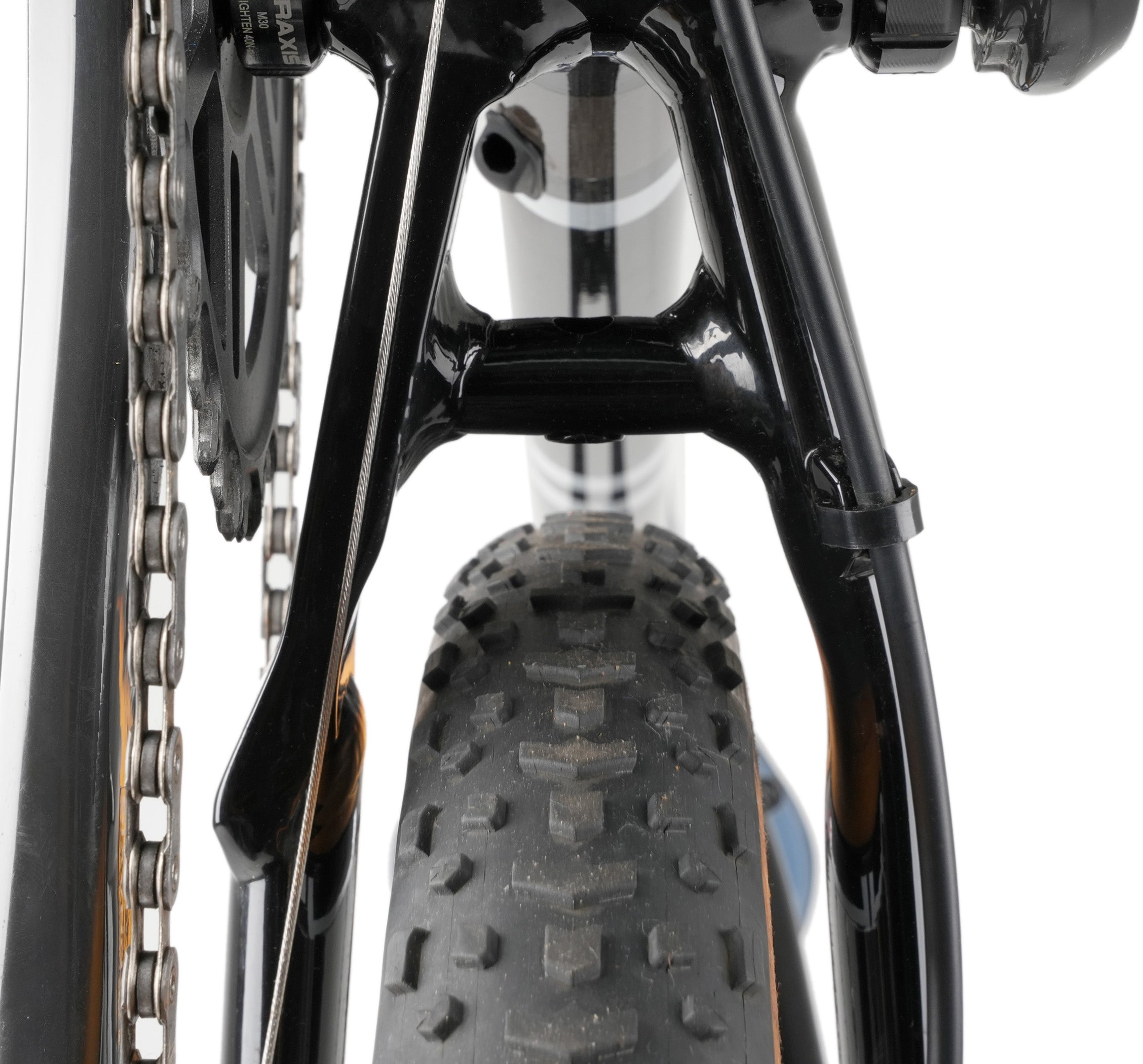

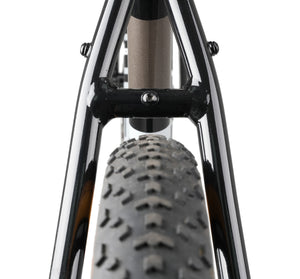

Increased Tyre Clearance

With ample tyre clearance of 700 x 50mm you can have a larger tyre without the rolling ability compromise of a smaller diameter wheel. A narrower tyre could be used in muddier conditions.
