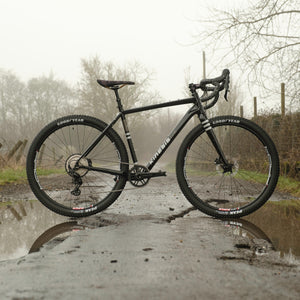

Kinesis - Frameset - Tripster AT Plus

Increased Tyre Clearance — With ample tyre clearance of 700 x 50mm you can have a larger tyre without the rolling ability compromise of a smaller diameter wheel. A narrower tyre should be used in muddier conditions.

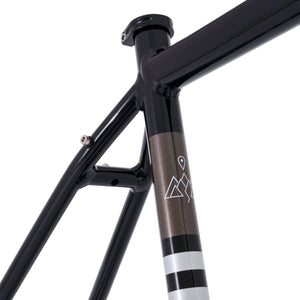

Tweaked Geometry — The Tripster AT Plus has a more sloping top tube than our other gravel bikes, giving the rider more manoeuvrability around the bike when the going gets rough.

Bottom Bracket — It also has a lower bottom bracket to lower the centre of gravity when fitted with larger tyres.

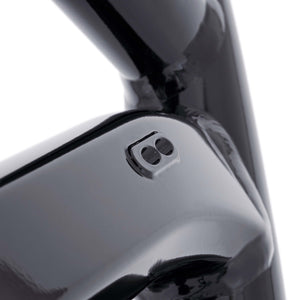

Internal Cable Routing — For even extra manoeuvrability, the Tripster AT has internal routing for a dropper post. Not ridden a dropper post on a gravel bike before? When you ride it for the first time, you'll wonder why you didn't make the switch years ago.

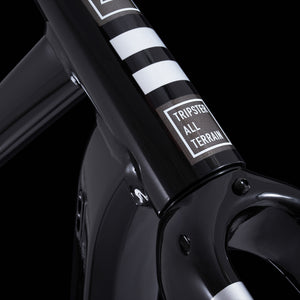

New Carbon Fork — We have an all-new Kinesis All Terrain carbon fork for the AT Plus with extended clearance for bigger tyres. This fork also comes with internal dynamo and brake hose routing, and cargo mounts – rack it up, and ride on out.

Choose your Drivetrain — The Tripster AT is one-by compatible only and will work with both electronic and mechanical groupsets – pick your poison.

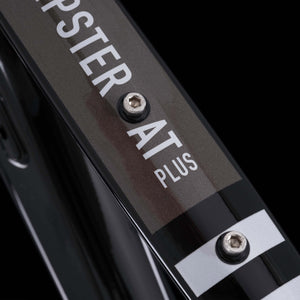

No Ride Restrictions — The Tripster AT Plus has triple bottle mounts, top tube mounts and fork cargo mounts for maximum bike-packing capability. And that's what the all-new Tripster AT Plus is ALL about maximum capability.

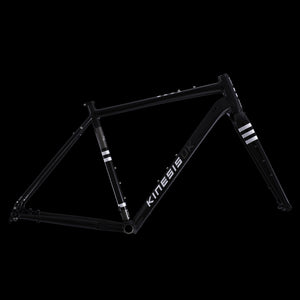

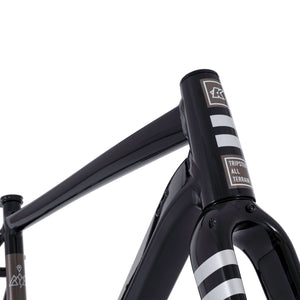

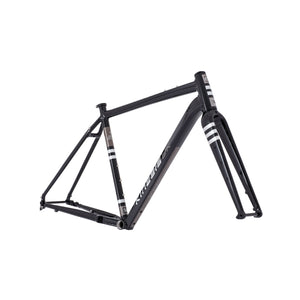

FRAMESET: Tough, lightweight 6069 aluminium series tubeset with a tapered machined headtube
TYRE CLEARANCE: Big tyre capability with clearance for up to 700c x 50mm - A narrower tyre should be used in muddier conditions
SEATPOST OPTIONS: Dropper post routing
FORK: New Kinesis All Terrain fork with internal dynamo and brake routing

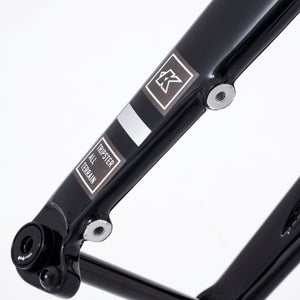

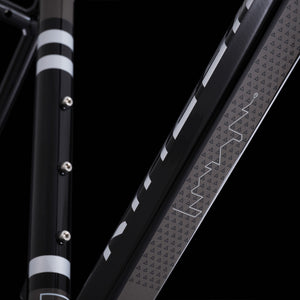

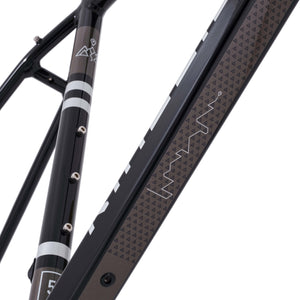

MOUNTS: 3 x bottle boss mounts, top tube mount and fork cargo mounts
REAR AXLE: 142 x 12 rear axle spacing
FRONT AXLE: 100 X 12 front axle spacing
SEAT TUBE: 31.8mm seat tube for 27.2mm seat post (will add a bit of compliancy)
MUDGUARD & LUGGAGE OPTIONS: Seat stay mounts for mudguards and a pannier rack
AXLE REMOVAL: GW Switch Lever Thru-axles included
DRIVETRAIN OPTIONS: Electronic / Mechanical / 1x Compatible
BOTTOM BRACKET: BSA threaded BB for real-world low-maintenance riding
SIZING & WEIGHTS: (Centre/Top) 48cm = 1.69kg | 50cm = 1.72kg | 52cm = 1.75kg | 54cm = 1.79kg | 56cm = 1.83kg | 58cm = 1.87kg | 60cm = 1.91kg
FORK WEIGHT: Kinesis All Terrain fork 540g
FRAMESET INCLUDES: Kinesis carbon fork, Kinesis headset with ACB bearings, seat clamp, front and rear axles and cable port hardware
