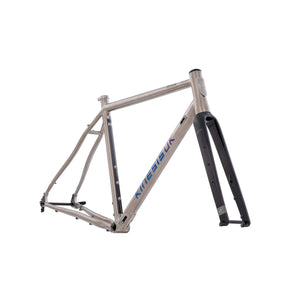

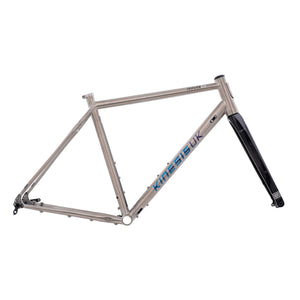

Tripster ATR Frameset

Regular price £2,400.00 GBP

Tax included

Shipping calculated at checkout

SKU: K-FS-TP-ATR-48
Colour: Titanium
Size

Only 7 in stock

The ATR legacy is built upon foundations of exploration, new experiences, and expanding horizons.

The new ATR vol.3 frameset is more beautiful and more capable than ever, thanks to several refinements over the much-loved and highly respected v2. The new ATR is hand-made using cold drawn seamless 3Al/2.5V titanium tubing for ultimate strength and rider comfort.

The addition of our new carbon Range fork comes with even more load carrying ability, while Kinesis Rider Fit Geometry ensures a better fit and more consistent handling for a wider range of riders choosing a Tripster ATR.

The ATR is designed with input from our Kinesis ambassadors across the globe, informing the details that make a difference out on the road and trail. So whether your next journey is a Himalayan expedition or a British local overnighter, the Kinesis ATR V3 adventure bike frameset is the perfect complement to your spirit of adventure.

Features

  • New Tube Set — All new tube set with coloured laser etching. Cold drawn seamless 3Al/2.5V titanium tubing and machined headtube, for ultimate strength and rider comfort.

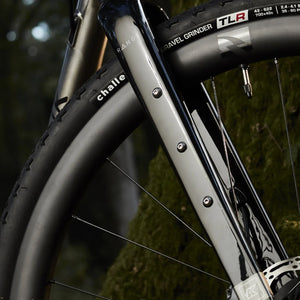

  • New Kinesis Range Fork — Newly designed load carrying carbon fork for even bigger adventure. As with the frame, compatible with 700x45c tyres.
  • New Seatstay/Seattube Junction — Flatter seat stays provide rear end compliance and a greater weld area provides additional strength and improved aesthetics.
  • Improved Cable Routing — Exit window on downtube and cable outer stops replace the downtube opening and plastic cable guide for lower maintenance. Frame compatible with all mechanical and electronic groupsets.

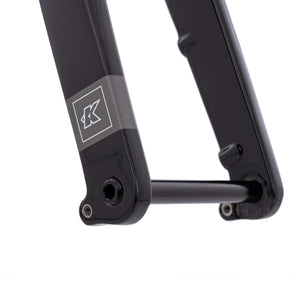

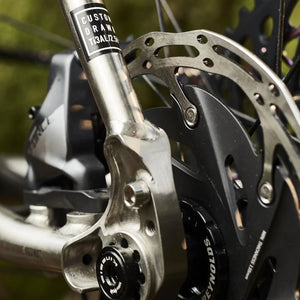

  • GW Switch Lever Thru Axles — Clean and simple design with a removable lever.

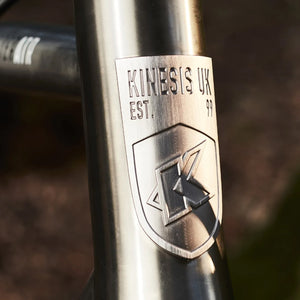

  • New Laser Etched Decal — A touch of custom styling and colour on the minimal branding.
  • Anti-Shock Tuning — Flattened seat stays for improved vibration damping.
  • Kinesis Rider Fit Geometry — Better fit and more consistent handling for a wider range of riders. Two smallest sizes have a semi sloping top tube for greater seat post extension and greater comfort. Longer reaches (recommended for use with shorter stems) mean there is less toe overlap on smaller sizes.

Specification

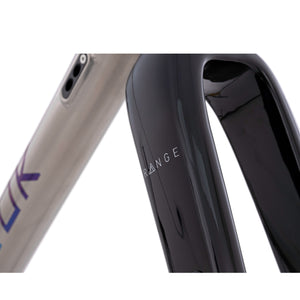

FORK: New Kinesis ‘Range’ adventure fork with cargo mounts
TYRE CLEARANCE: Increased clearance for 700x45 and 650x50 tyres.

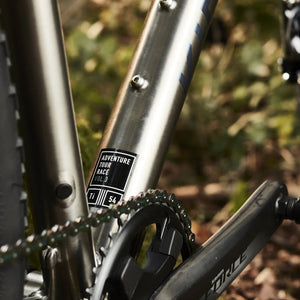

BOTTLE MOUNTS: Three bottle cage mounts with multi-position options on the down tube and seat tube.
DRIVETRAIN OPTIONS: Wireless, electronic and 1x / 2x mechanical gearing compatible.
MUDGUARD COMPATIBILITY: Mudguard mounts.

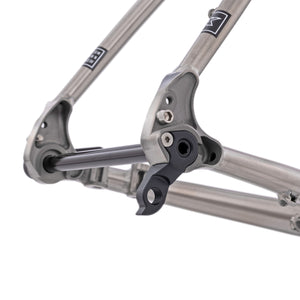

REAR AXLE:142x12mm Thru Axle rear spacing.
FRONT AXLE: 100x12mm Thru Axle front fork.
AXLE REMOVAL: GW ‘Switch Lever’ axles front and rear.

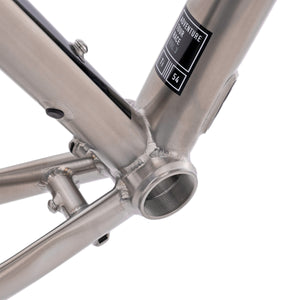

BOTTOM BRACKET: 68mm threaded BB.
SEAT POST: 31.6mm seat post required.
FRONT MECH: 34.9mm front mech clamp required

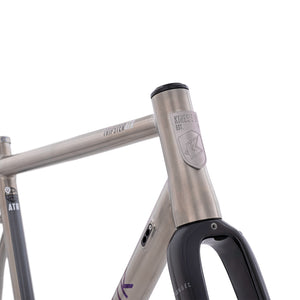

HEADSET: Kinesis designed tapered headset with ACB bearings.

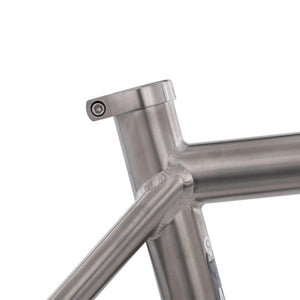

FRAME SUPPLIED WITH: Range fork, headset, titanium seat clamp, front & rear through axle, frame ports and cable guides.
WEIGHT: 1.88kg (56cm with hanger and all fittings).

Geometry - ATR

Frame Size Seat Tube XXSmall (48*) XSmall (50*) Small (52*) Medium (54) Large (56) XLarge (58) XXLarge (60) XXXLarge (62)

Seat Tube Length C-T 440 470 500 540 560 580 600 620
Top Tube Length Effective 517 525 537 553 565 580 595 609
Head Tube Length 114 124 138 157 176 195 212 231
Head Tube Angle 70 70 70.5 70.5 70.5 70.5 71 71
Seat Tube Angle 74 74 74 73.75 73.75 73.75 73.75 73
Bottom Bracket Drop 70 70 70 70 70 70 70 70
Chain Stay Length 440 440 440 440 440 440 440 440
Wheelbase 1017 1025 1034 1048 1061 1075 1082.8 1093.9
Stack 530 540 555 573 591 609 627 645
Reach 365 370 378 386 393 400 407 412
Front Centre 587 595.12 603.63 617.87 631.13 644.39 652.17 663.3
Fork Length 395 395 395 395 395 395 395 395
Fork Rake 47 47 47 47 47 47 47 47

All measurements in MM.
Loading image:

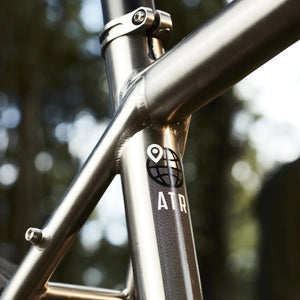

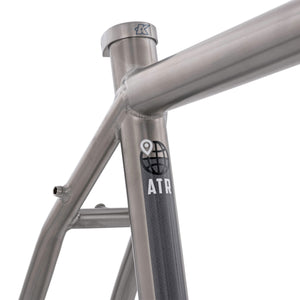

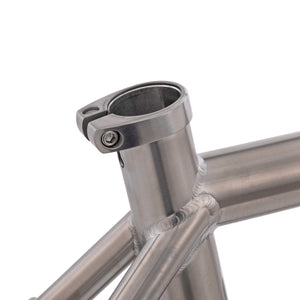

Seatstay/Seattube Junction

It's all in the details. We designed and built in a greater weld area for additional strength and durability and improved the aesthetics in this area.

Loading image:

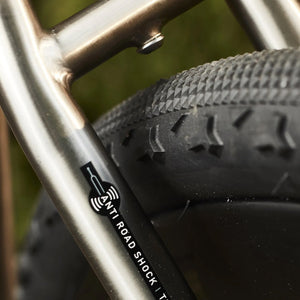

Anti-Shock Tuned Rear End

We also added flattened seat stays for improved vibration damping – cold-drawn seamless 3Al/2.5V titanium tubing ensures an incredible ride in all conditions.
