4S Frameset in Graphite Grey

Name: 4S Frameset in Graphite Grey
Brand: Kinesis UK
SKU: K-FS-4S-01-3SM
Price: 675.0 GBP
Availability: InStock

Sale price £675.00 GBP

Tax included

Shipping calculated at checkout

SKU: K-FS-4S-01-3SM

Colour: Graphite Grey

Graphite Grey

Size

Small (51cm)

Medium (54cm)

Large (57cm)

XLarge (60cm)

Quantity

Only 6 in stock

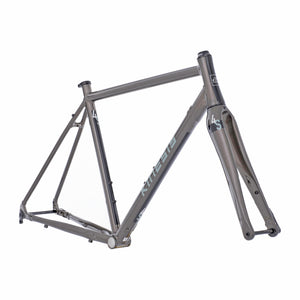

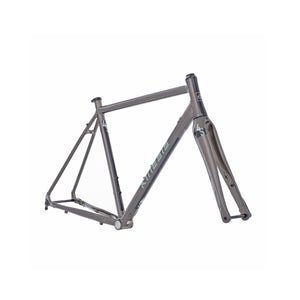

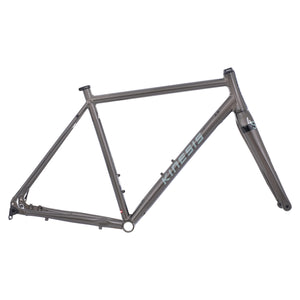

Looking for the ideal all-seasons frameset to build up your perfect new all-road bike? Our brand-new Kinesis 4S frameset is a thoroughly modern aluminium road frameset designed for those who seek a balance between speed and adventure and a traditional silhouette. We've taken our acclaimed Kinesis R1 frameset and worked hard to improve every detail to improve every ride.

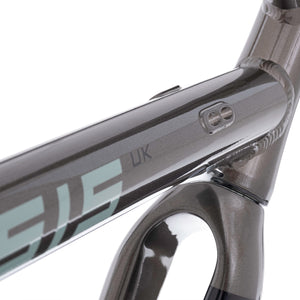

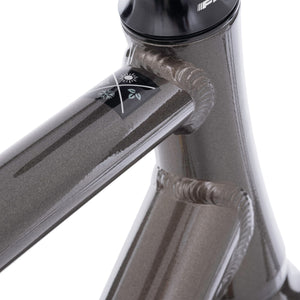

The all-new 4S frameset features the same proven frame and fork as our highly praised, group test-winning R1 bike which Cycling Plus magazine proclaimed had "Understated class and excellent ride quality" and BikeRadar.com said had “instant zing when pressing the pedals". The lightweight double-butted premium 6061 aluminium tube blend provides a responsive ride feel, and the impeccable weld quality and attention to detail ensure high standards. Additionally, the internal down tube cable routing keeps the bike clean and easy to service.

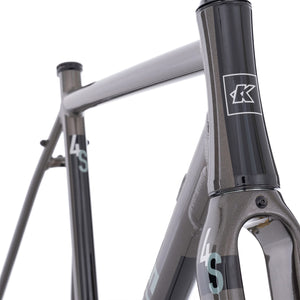

The custom full UD carbon fork reduces road buzz and offers precise handling, while the Kinesis Rider Fit Geometry ensures comfortable all-day rides. With four sizes to choose from, finding the perfect bike fit is made simple.

Features

Lightweight Frame — Lightweight double-butted 6061 aluminium tube blend that delivers a light and responsive ride feel.

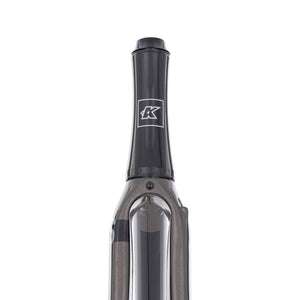

Full Carbon Fork — Custom full UD carbon fork keeps weight low and takes out road buzz whilst feeling direct and accurate at all times.
Evolution in design – Two decades of frameset design have taught us to never stand still and question everything we see and do, to make a better product for riders – what worked ten years ago may not be suitable for today's rider, so we are constantly evolving.
The perfect fit – This has led us to our new Kinesis Rider Fit Design process, a semi-sloping frame on the smallest bike, which has not only reduced the stand-over height but has also brought comfort in line with our larger models. Short chain-stays alongside this revised position give the new 4S outstanding road bike characteristics.

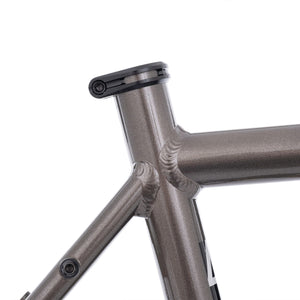

Set Package – Frameset includes frame, fork, headset, thru axles, seat clamp and cable guides.

Specification

FRAME: Lightweight double-butted 6061 series aluminium tubeset

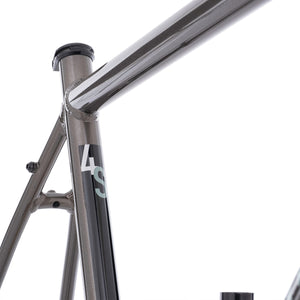

SEAT TUBE: 31.8mm seat tube for 27.2mm seat post (will add a bit of compliancy)
FRONT MECH: 31.8mm front mech clamp required
FORK: Full UD carbon fork with 12mm thru axle

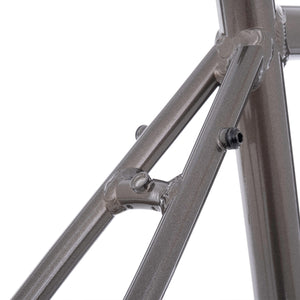

MUDGUARD & LUGGAGE OPTIONS: Seat stay mounts for mudguards and pannier racks
MUDGUARDS: Bridges on chain stay and seat stay for fender mounting and you can run 32mm tyres with full mudguards for clean winter riding
TYRE CLEARANCE: 36c without mudguards

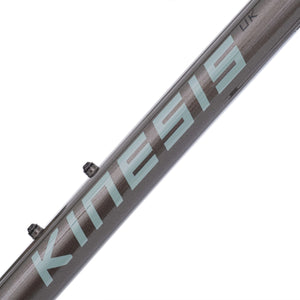

MOUNTS: 2 x bottle boss mounts
AXLE: 100x12mm front thru axle / 142x12mm rear thru axle

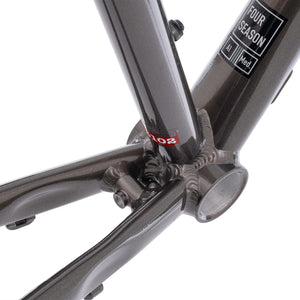

BOTTOM BRACKET: BSA threaded BB for real-world low-maintenance riding

Geometry - 4S

Frame Size Seat Tube	Small (51*)	Medium (54)	Large (57)	XLarge (60)

Seat Tube Length C-T	490	540	570	600
Top Tube Length Effective	532	545	561	580
Head Length	130	146	172	204
Head Tube Angle	71	72	72	72
Seat Tube Angle	74	74	74	74
Bottom Bracket Drop	70	70	70	70
Chain Stay Length	420	420	420	420
Front Centre	590.7	595	611.8	631.8
Wheelbase	1001	1005	1022	1042
Stack	538	557	582	612
Reach	378	385	394	404
Fork Axle to Crown	378	378	378	378
Fork Rake	45	45	45	45

*Semi-Sloping

Additional Info

Frameset includes frame, fork, headset, thru axles, seat clamp and cable guides.

ALL NEW 4S FRAMESET

The all-new 4S Frameset is based on our award-winning R1, offering 'understated class and excellent ride quality'. Press on the pedals for an instant response – the perfect geo, RideFit design and lightweight construction of the 4S frame will create the perfect base for any all-road endurance bike.

FOUR SEASONS, ONE BIKE

The lightweight aluminium tube blend will turn heads everywhere you ride. Modern geometry and ride-feel, combined with traditional clean looks of a contemporary classic, enhanced with internal routing and mudguard mounts result in the perfect all-seasons frameset.
