We have put everything we have learned during the last 17 years of alloy frame design and manufacture into this completely new and very advanced alloy mountain bike frame. Whilst other manufacturers focus has been on carbon, we believe that by putting the same development into alloy tubing, we have created a frame that rivals carbon in many ways, and hands down beats it on price.
Damian Mason of Kinesis UK said ‘Kinesis are the only frame manufacturer to use Super Plastic Forming (SPF) on their alloy frames. Most manufacturers use Hydroformed tubes, but with SPF we can create lighter tubes and more intricate shapes that will build into a lighter and stiffer frameset.’

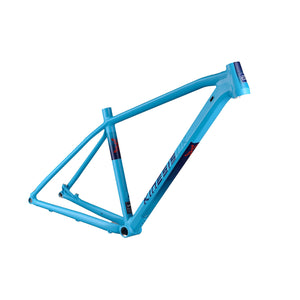

One of the Kinesis Maxlight X’s design features is an oversized downtube with an SPF created hexagonal cross section, an ultra-flat top tube and seat stays with a flat diamond cross section. These tubes combine to give a frame that is superbly stiff laterally, whilst vertically compliant to help smooth out the ride.

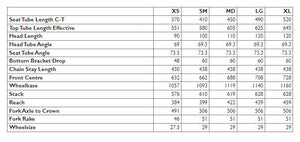

The Kinesis UK X frame comes in a true full size range from XS through to XL. The XS frame is designed around 650b wheels, whilst all other sizes have 29”, to minimise stand over height and toe overlap, benefiting the rider when hustling the frame around your local XC course or when loaded up for your next adventure.
The Kinesis X mountain bike frame has been designed to be compatible with a 100-120mm suspension fork, a Lauf Trail Racer fork or our Maxlight Carbon rigid fork.
The Kinesis Maxlight X has been designed with internally routed full-length gear outer as this is better for sealing out the elements and will keep you shifting accurately for longer. Full length outer has the added benefit of making an internally routed gear cable change simple and quick to do.
We’ve integrated the replaceable rear derailleur hanger into both the Thru Axle and the dropout of the frame. This increases the rigidity of the rear hanger, without compromising its ability to break away in an emergency, giving you the tight and precise shifting.
Adaptable cable ports allow you to build the Kinesis X frame with the set up of your choice. Di2, 1x gearing, dropper post – it’s your choice.
