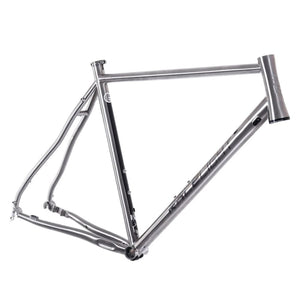

The Kinesis Granfondo titanium disc frame is ready to take you the distance

Features

AEROgrade brushed Ti3AL/2.5V frame.

Tapered milled head tube with matching full carbon Flat Mount disc fork.

Integral Forged rear Titanium Shimano disc flat mount.

Integrated Mudguard and Rack mounts.

Fantastic tyre clearance for wide tyres, mudguards and grime.

The Kinesis GF Ti disc frame includes Headset, Seat Clamp, flat mount to post mount 160mm brake adaptors and all DI2/Mechanical cable guides.

• CWSR:‘Cold Worked Stress Relieved’ tubing. The tubing is shaped cold and then goes through a process to remove the stresses built up within the tube during forming.

• Rack Mount:Rear pannier rack mount.

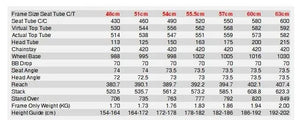

Specification
  • Custom Drawn: Ti3AL/2.5V tubeset.
  • Internal cable routing: Di2 compatibility.
  • Fork: ‘TRACER DISC 1.5′ Full carbon fork with Shimano 'Flat Mount' and mudguard eyelets. 450g
  • Disc Mount: Inboard Shimano Disc Flat Mount.
  • Includes: Headset, 34.9mm Seat Clamp, 160mm Post Mount Brake Adaptors and all DI2/Mechanical cable guides. (does not include rubber grommets)
  • Seat Post: 31.6mm [not included].
  • Front mech: 34.9mm.
  • BB: 68mm. British.
  • Headset: integrated, 41.8ø upper, 51.8ø lower, for taper head tube. FSA No.42/ACB headset included with frame.
  • Tyre Clearance: 700 x 28 with guards and 700 x 30 without guards
  • 32mm long flat mount disc brake bolts required for the frame.
  • Sizes: 48cm- 51cm – 54cm – 55.5cm - 57cm – 60cm - 63cm
