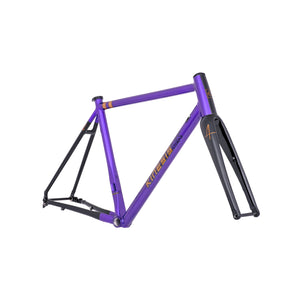

Kinesis Aithein Disc Brake Road Bike Frameset - Purple
Kinesis Aithein Disc Brake Road Bike Frameset - Purple
Kinesis Aithein Disc Brake Road Bike Frameset - Purple
Kinesis Aithein Disc Brake Road Bike Frameset - Purple
Kinesis - Frameset - Aithein Disc - Purple
Kinesis - Frameset - Aithein Disc - Purple
Kinesis - Frameset - Aithein Disc - Purple
Kinesis - Frameset - Aithein Disc - Purple
Kinesis - Frameset - Aithein Disc - Purple

Kinesis UK

Kinesis - Frameset - Aithein Disc - Purple

Regular price £900.00

Tax included

Shipping calculated at checkout

Colour: Purple
Size
Cyclist Height (cm) 155-163 162-171 169-178 177-187 186-195
Cyclist Height (feet) 5'1" - 5'4" 5'3" - 5'7" 5'6" - 5'10" 5'9" - 6'2" 6'1" - 6'5"
Recommended Bike Size XSmall (47cm*) Small (50cm) Medium (53cm) Large (56cm) XLarge (59cm)
Size guide

Only 1 in stock

The Kinesis Aithein is the fastest bike in the Kinesis line-up. The new Aithein is faster, more comfortable, and more fun, making it the perfect choice for racing the local crit, club sportives or winning sprints for the line.

Using advanced aluminium construction techniques, we've created a lightweight frame that rivals carbon bikes. Thanks to Superplastic Forming (SPF), we've minimized weight while maximizing stiffness and strength. This results in a high-performance frame that efficiently transfers rider energy into forward momentum.

The new Aithein offers 30mm tyre clearance, providing speed and grip on modern, larger-volume tyres. Paired with the Futura Road fork from Columbus, known for its impeccable ride quality and unmatched vibration damping, the Aithein is designed for flat-out performance.

Features

Super Plastic Formed Alloy Frame — constructed from tubes that are created with an advanced manufacturing technique named Superplastic Forming (SPF), which involves heating the alloy until it exhibits superplasticity, and then creating complex tube shapes using gas pressure.

Super Light: The Aithein Disc frame tips the scales at just 1.60kg (53cm).

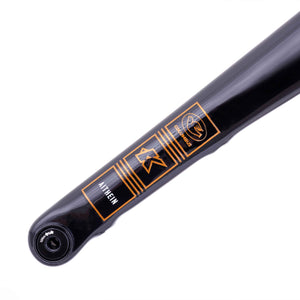

Columbus Futura Road Disc Fork — T700S and HFM Carbon Fibre Monocoque construction, 45mm rake, 440g fork. Stiff with high vibration damping for a smooth ride.

30mm Tyre Clearance — It is becoming widely accepted that wider tyres offer more speed, more grip and more comfort on real world surfaces. The new Aithein Disc will take up to 30mm tyres so you can choose the right tyre for you and your riding conditions.

Kinesis Rider Fit Geometry — Geometry adjustments have been made to ensure a better fit across a greater range of rider dimensions. As a result there is more consistent handling across sizes, less toe overlap, and more intuitive sizing.

68mm Threaded Bottom Bracket — Threaded BBs allow you to use reliable, creak free bottom brackets that withstand year round British conditions.

Adaptable Cable Ports — Thanks to interchangeable cable entry points you can run exactly the routing you need, ensuring there are no excess holes into the frame.

Wireless Electronic / Mechanical / 2x / 1x Compatible — The Aithein frame is designed to work with mechanical and all wireless electronic groupsets.

Specification

FRAME: Super Plastic Formed lightweight aluminium frame.
FORK: Columbus Futura Road Disc carbon fork.

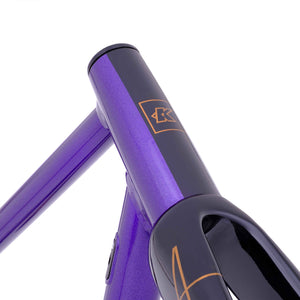

HEADSET: GW Tapered headset with ACB Bearings.

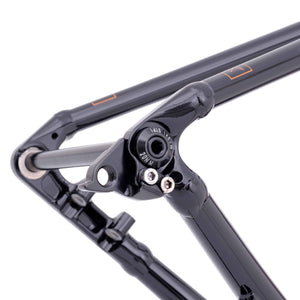

AXLES: 142x12mm Thru Axle rear spacing. 100x12mm Thru Axle front fork. GW ‘Switch Lever’ axles front and rear.
TYRE CLEARANCE: Clearance for up to 30c tyres (tyre and rim dependent).
DRIVETRAIN: Wireless Electronic / Mechanical / 2x / 1x Compatible.

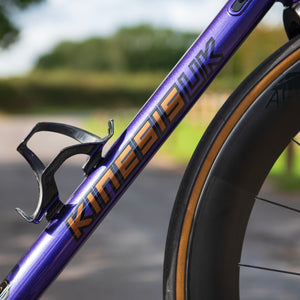

MOUNTS: Two bottle cage mounts.
FRONT MECH: Front Mech clamp size needed: Braze-On.

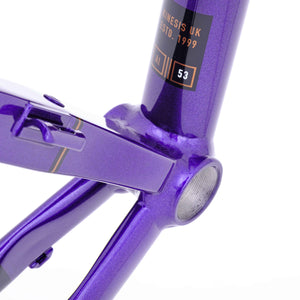

BOTTOM BRACKET: 68mm threaded BB.
SEATPOST: 31.6mm seat post required.
WARRANTY: 5 years.
FRAME SUPPLIED WITH: fork, headset, seat clamp, front & rear through axle, frame ports and cable guides.

Geometry - Aithein
Frame Size Seat Tube XSmall (47*) Small (50*) Medium (53) Large (56) XLarge (59)

Seat Tube Length C-T 450 490 530 560 590
Top Tube Length Effective 516 535 551 566 586
Head Tube Length 124 140 162 184 208
Head Tube Angle 72 72.1 72.4 72.7 73
Seat Tube Angle 75 74.3 74 74 73.5
Bottom Bracket Drop 72 72 70 70 69
Chain Stay Length 410 410 410 410 410
Wheelbase 967.6 979.6 992.2 1004.2 1016.7
Stack 525 540 559 582 605
Reach 375 383 391 399 407
Front Centre 573.6 585.5 597.4 609.3 621.5
Offset 45 45 45 45 45
Fork Crown 368 368 368 368 368
*Semi-Sloping

Additional Info

Note: Due to the frame design and positioning of the front mech mount this model of Aithein Disc is not compatible the following Shimano front mechs FD-5800, FD-6800 and FD-9000.

Brake info: 22mm long flat mount disc brake bolts are required for the frame.

Colour: Deep Purple

Sizes: 47 / 50 / 53 / 56 / 59cm.

Frame Weight (with Seat Clamp, Mech Hanger and all cable guides): 1.60kg (53cm).

Built for More Speed

It is becoming widely accepted that wider tyres offer more speed, more grip and more comfort on real world surfaces. The new Aithein Disc will take up to 30mm tyres so you can choose the right tyre for you and your riding conditions.

Rider Fit Geometry

Geometry adjustments have been made to ensure a better fit across a greater range of rider dimensions. As a result there is more consistent handling across sizes, less toe overlap, and more intuitive sizing.

Testimonials

The Aithein is a refreshingly uncomplicated bike… a bike with racy intentions and few concessions. Kinesis makes no bones about the Aithein Disc’s racy demeanour.

Put simply, it’s fun… an engaging ride on days when you’re on the rivet and feeling strong.

The Aithein Disc is a single-minded bike but it looks great and is hugely enjoyable for the right kind of riding. It’s designed for fast, aggressive riding and will appeal to road and criterium racers. Its stiff frame makes it an excellent climber and a precise high-speed descender too. The overall ride quality is reasonably smooth, made more so by the handmade Challenge tyres… It shines most on good tarmac where you can exploit its supremely stiff back end and really put some power down without sub-par road surfaces ruining your fun. An appealing option that you can build to your precise specifications.

Cycling Plus

Cycling Plus

Impressively stiff and efficient frameset, which showcases just how good aluminium can be.

Overall rating: 8/10

ROAD.CC

ROAD.CC

I've been riding it for two years. I have two Trek Madones, and I enjoy riding this Aithein as much as any other. Comfortable and controllable as any other bike I've had, and at a fraction of the price.

Reiner Vijay Singh

Reiner Vijay Singh
